POWER DOOR LOCK CONTROL SYSTEM > PARTS LOCATION |

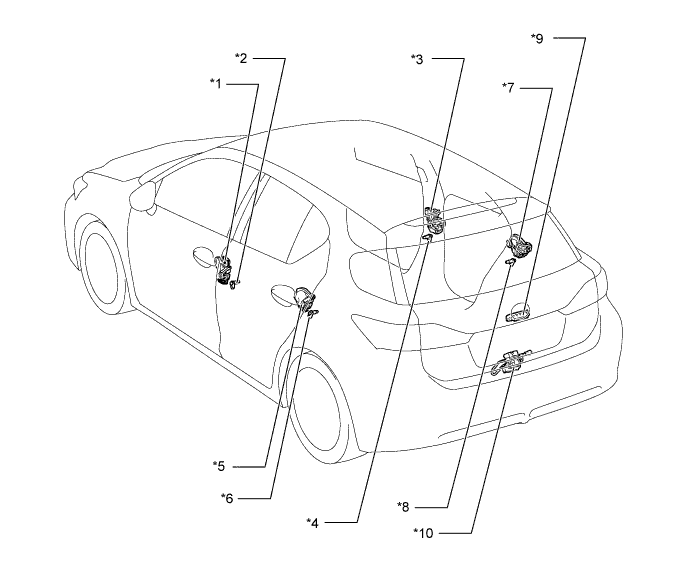

| *1 | Front Door with Motor Lock Assembly LH | *2 | Front Door Courtesy Light Assembly (LH) |
| *3 | Front Door with Motor Lock Assembly RH | *4 | Front Door Courtesy Light Assembly (RH) |
| *5 | Rear Door with Motor Lock Assembly LH | *6 | Rear Door Courtesy Light Assembly (LH) |
| *7 | Rear Door with Motor Lock Assembly RH | *8 | Rear Door Courtesy Light Assembly (RH) |
| *9 | Back Door Opener Switch Assembly | *10 | Back Door Lock Assembly |

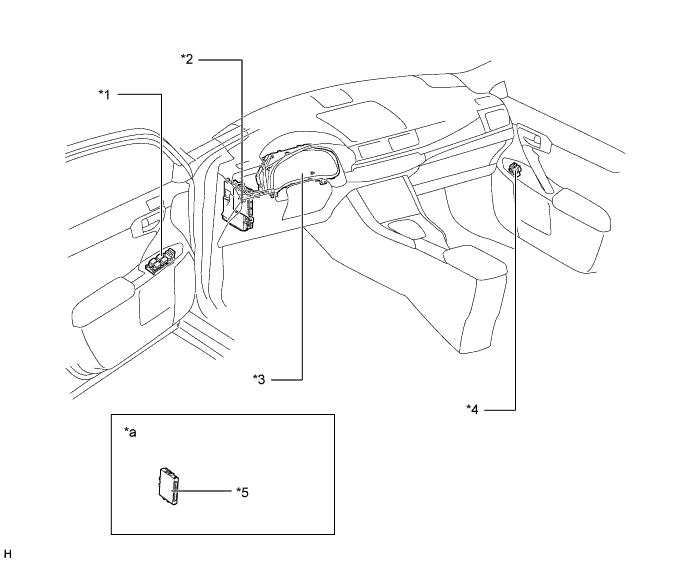

| *1 | Multiplex Network Master Switch Assembly | *2 | Main Body ECU (Multiplex Network Body ECU) |
| *3 | Combination Meter Assembly | *4 | Door Control Switch Assembly |
| *5 | Certification ECU (Smart Key ECU Assembly) | - | - |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |

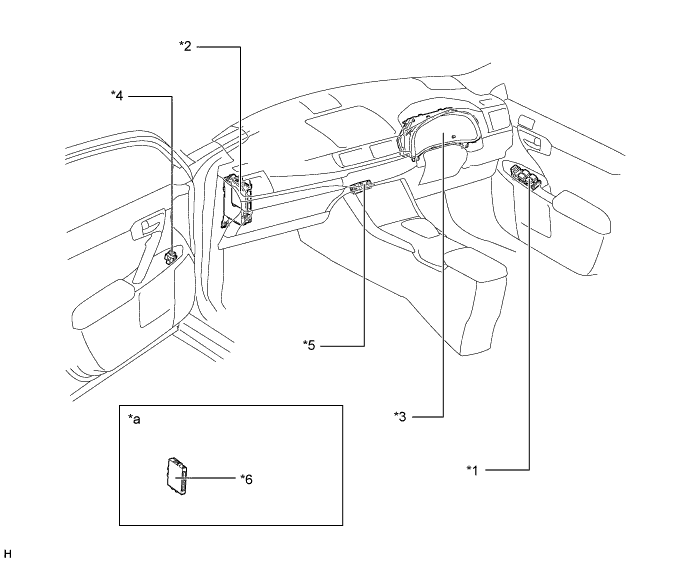

| *1 | Multiplex Network Master Switch Assembly | *2 | Main Body ECU (Multiplex Network Body ECU) |
| *3 | Combination Meter Assembly | *4 | Door Control Switch Assembly |
| *5 | Double Lock Door Control Relay Assembly | *6 | Certification ECU (Smart Key ECU Assembly) |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
