THEFT DETERRENT > PARTS LOCATION |

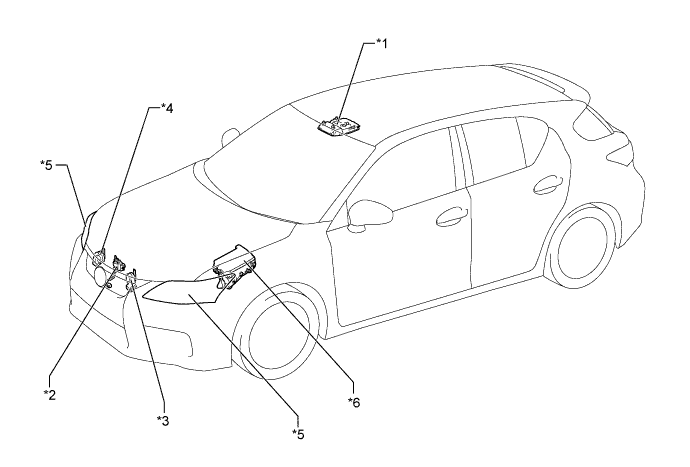

| *1 | Map Light Assembly - Intrusion Sensor Cancel Switch - Intrusion Sensor (Theft Warning Ultrasonic Sensor) | *2 | Hood Lock Assembly - Engine Hood Courtesy Switch |
| *3 | Low Pitched Horn Assembly | *4 | High Pitched Horn Assembly |
| *5 | Headlight Assembly - Hazard Warning Light | *6 | Engine Room Junction Block Assembly - No. 1 Integration Relay (Horn Relay) |

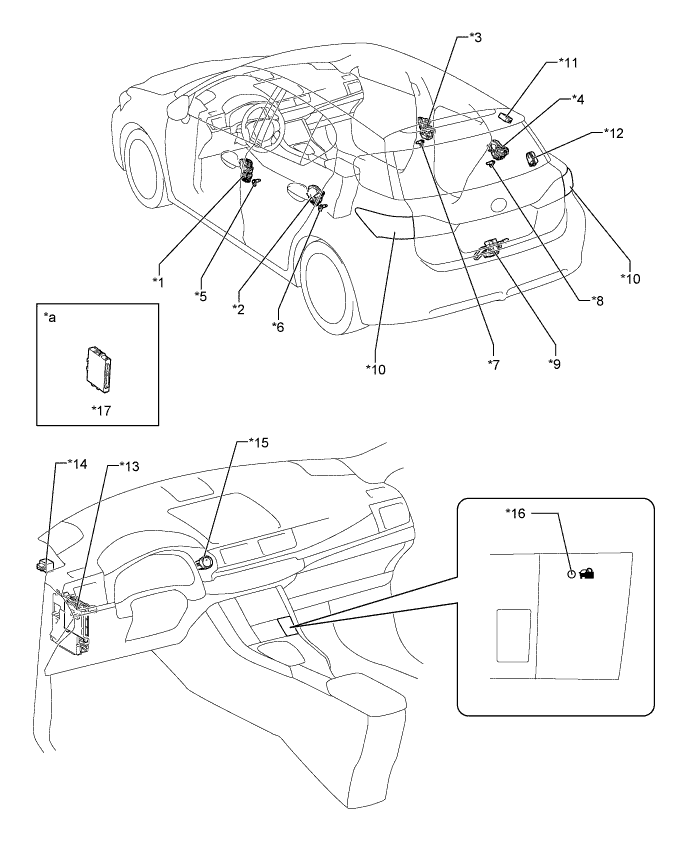

| *1 | Front Door with Motor Lock Assembly LH - Door Unlock Detection Switch | *2 | Rear Door with Motor Lock Assembly LH - Door Unlock Detection Switch |
| *3 | Front Door with Motor Lock Assembly RH - Door Unlock Detection Switch | *4 | Rear Door with Motor Lock Assembly RH - Door Unlock Detection Switch |
| *5 | Front Door Courtesy Light Switch Assembly (LH) | *6 | Rear Door Courtesy Light Switch Assembly (LH) |
| *7 | Front Door Courtesy Light Switch Assembly (RH) | *8 | Rear Door Courtesy Light Switch Assembly (RH) |
| *9 | Back Door Lock Assembly - Back Door Courtesy Switch | *10 | Rear Combination Light Assembly - Hazard Warning Light |
| *11 | Door Control Receiver | *12 | Theft Warning Siren Assembly |
| *13 | Main Body ECU (Multiplex Network Body ECU) | *14 | Turn Signal Flasher Assembly |
| *15 | Power Switch | *16 | Integration Panel Assembly - Security Indicator Light |
| *17 | Certification ECU (Smart Key ECU Assembly) | - | - |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
| *A | Destination package for United Kingdom | - | - |

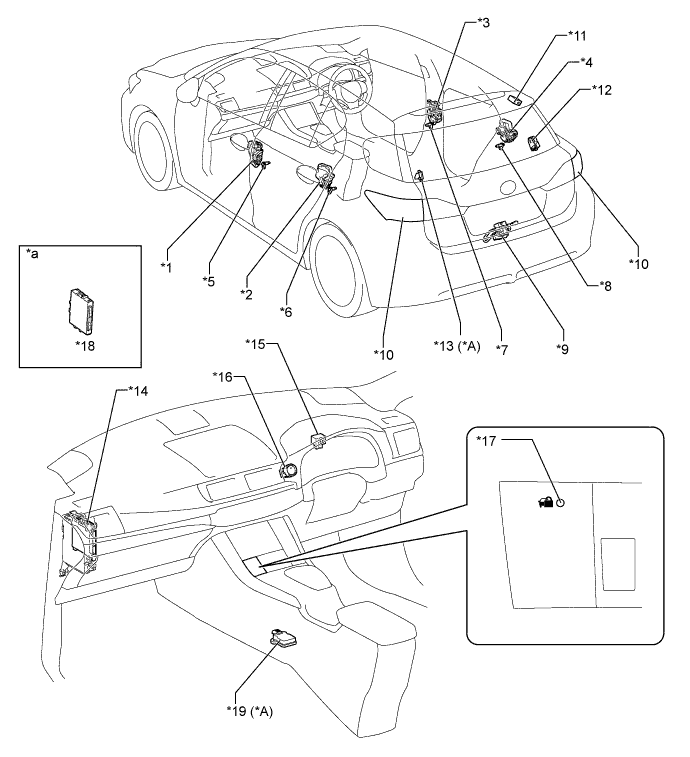

| *1 | Front Door Lock Assembly LH - Door Unlock Detection Switch | *2 | Rear Door Lock Assembly LH - Door Unlock Detection Switch |
| *3 | Front Door Lock Assembly RH - Door Unlock Detection Switch | *4 | Rear Door Lock Assembly RH - Door Unlock Detection Switch |
| *5 | Front Door Courtesy Light Switch Assembly (LH) | *6 | Rear Door Courtesy Light Switch Assembly (LH) |
| *7 | Front Door Courtesy Light Switch Assembly (RH) | *8 | Rear Door Courtesy Light Switch Assembly (RH) |
| *9 | Back Door Lock Assembly - Back Door Courtesy Switch | *10 | Rear Combination Light Assembly - Hazard Warning Light |
| *11 | Door Control Receiver | *12 | Theft Warning Siren Assembly |
| *13 | Glass Breakage Sensor | *14 | Main Body ECU (Multiplex Network Body ECU) |
| *15 | Turn Signal Flasher Assembly | *16 | Power Switch |
| *17 | Integration Panel Assembly - Security Indicator Light | *18 | Certification ECU (Smart Key ECU Assembly) |
| *19 | Tilt Sensor (Yawrate Sensor) | - | - |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
