SEAT ASSEMBLY > GENERAL



OUTLINE

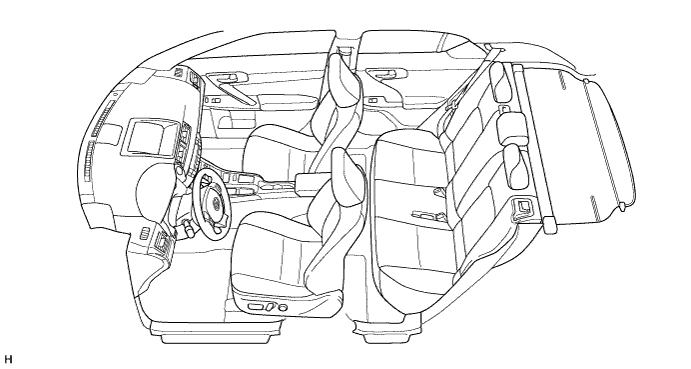

  1. Seat comfort is ensured by creating seats with excellent pressure distribution for all occupants.


    Y109192


MAIN FEATURES


  1. Front Seat



    1. Support wires have been provided for the seat back and seat cushion, enhancing seat grip.


      Y109193E01


      Text in Illustration
      *1
      		Support Wire
      		-
      		-

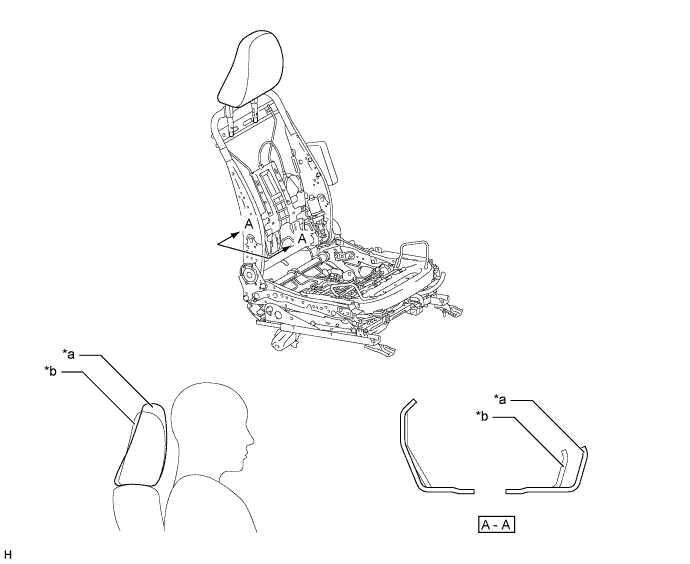

    2. The headrests have been brought forward compared to vehicles with active headrests and the side frames have been reinforced to control the amount the occupant's body sinks into the seatback, allowing for rapid support of the occupant's head, and achieving excellent safety in the event of a low-speed rear collision.


      Y109196E01


      Text in Illustration
      *a
      		Vehicles with passive headrests
      		*b
      		Vehicles with active headrests

    3. The driver seat uses a manual lifter. The entire seat can be vertically moved by operating the pump type lifter knob on the outer surface of the driver seat cushion.



    4. The manual lifter consists of the pump type lifter knob, lifter gear and lifter rod, thus accommodating various body types.


      Y109194E01


      Text in Illustration
      *1
      		Lifter Rod
      		*2
      		Lifter Gear
      *3
      		Lifter Knob
      		-
      		-
