SEAT ASSEMBLY > DETAILS



FUNCTION


  1. Rear Seat

    1. Foldable 60/40 separate type seats are provided as the rear seats.



    2. The suction port for the battery cooling blower assembly is provided on the right side of the rear seat.


      Y109199E01


      Text in Illustration
      *1
      		Suction Port
      		-
      		-



  2. Child Restraint System

    1. ISO-FIX bars for securing child seats have been provided behind the seat cushion of the rear seat.



    2. CRS anchor brackets for securing a child seat have been provided behind the rear seat backrest.

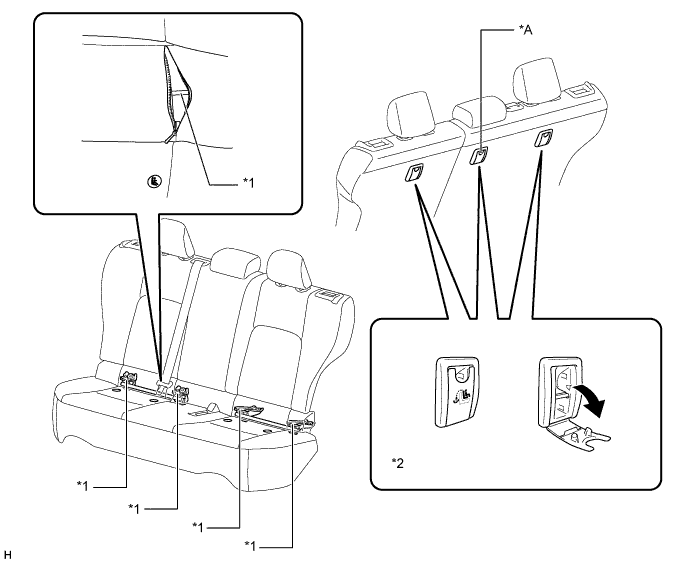

      Y109198E03


      Text in Illustration
      *A
      		Destination Package for Australia and New Zealand.
      		-
      		-
      *1
      		ISO-FIX Bars
      		*2
      		CRS Top Tether Anchor Bracket


OPERATION

  1. Shoulder Lever

    1. Shoulder levers have been adopted, and are mounted to the side of the outer headrests, enhancing usability when reclining the rear seat. In addition, making the seat recline and the lever operate in the same direction has enhanced operability.

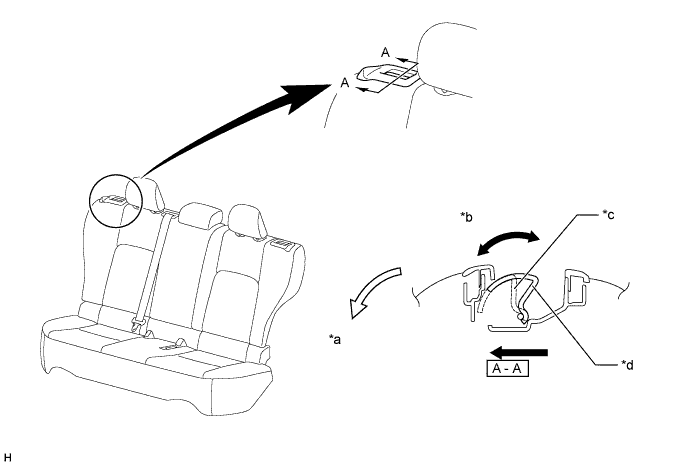

  2. Y109202E01


    Text in Illustration
    *a
    		Seatback forward recline direction
    		*b
    		Lever Operation
    *c
    		Lever (Unlocked)
    		*d
    		Lever (Locked)



  3. Foldable rear headrest



    1. Foldable rear headrests have been adopted, ensuring rear visibility.


      Y109200E01


      Text in Illustration
      *A
      		Low-profile Headrest
      		*B
      		Normal Headrest
      *a
      		In use
      		*b
      		Folded
      *c
      		Rear visibility
      		-
      		-
