SFI SYSTEM > PARTS LOCATION |

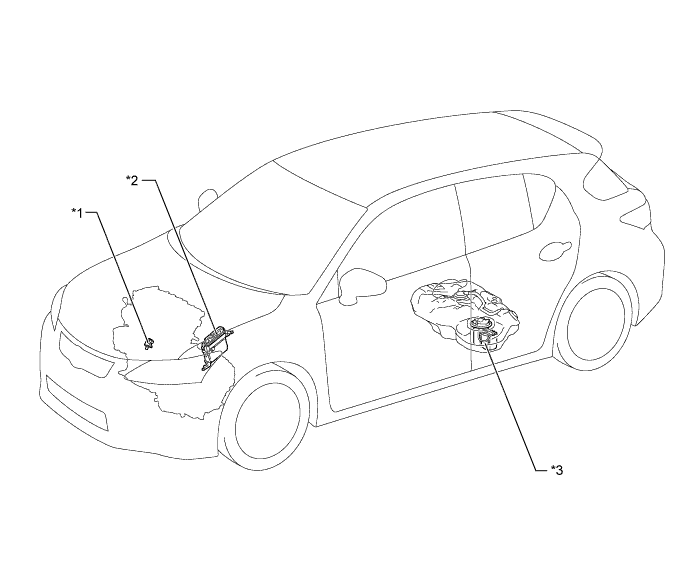

| *1 | Purge VSV | *2 | ECM |
| *3 | Fuel Suction with Pump and Gauge Tube Assembly | - | - |

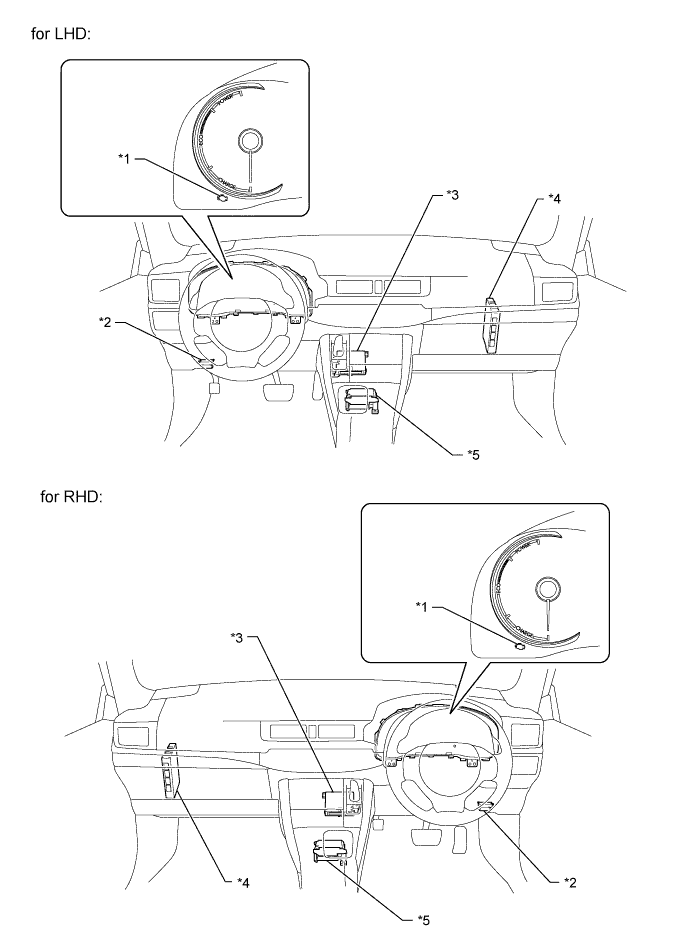

| *1 | Malfunction Indicator Lamp | *2 | DLC3 |
| *3 | Air Conditioning Amplifier Assembly | *4 | Power Management Control ECU |
| *5 | Airbag ECU Assembly | - | - |

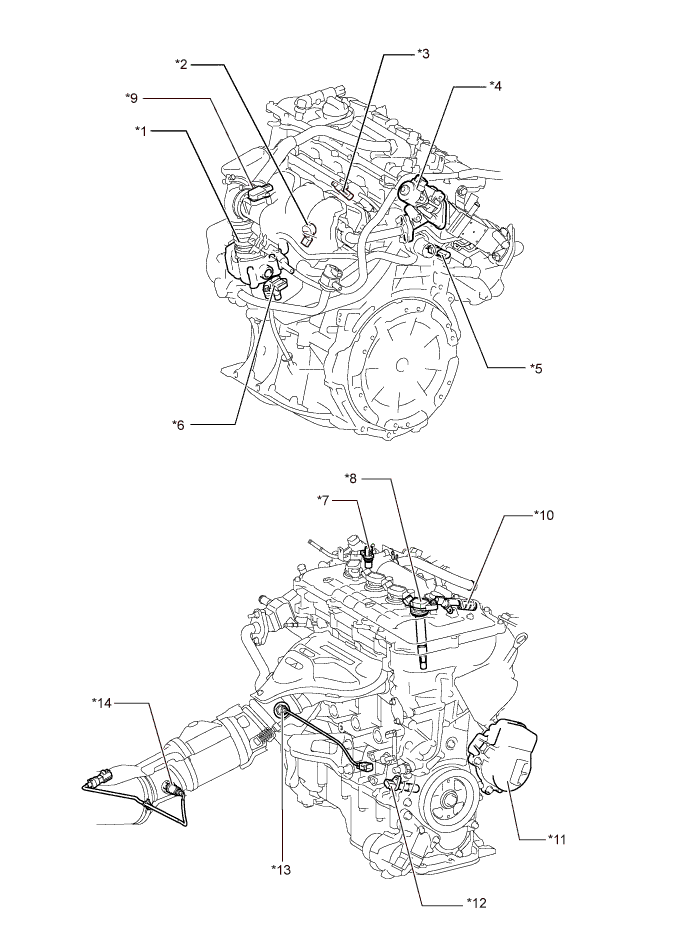

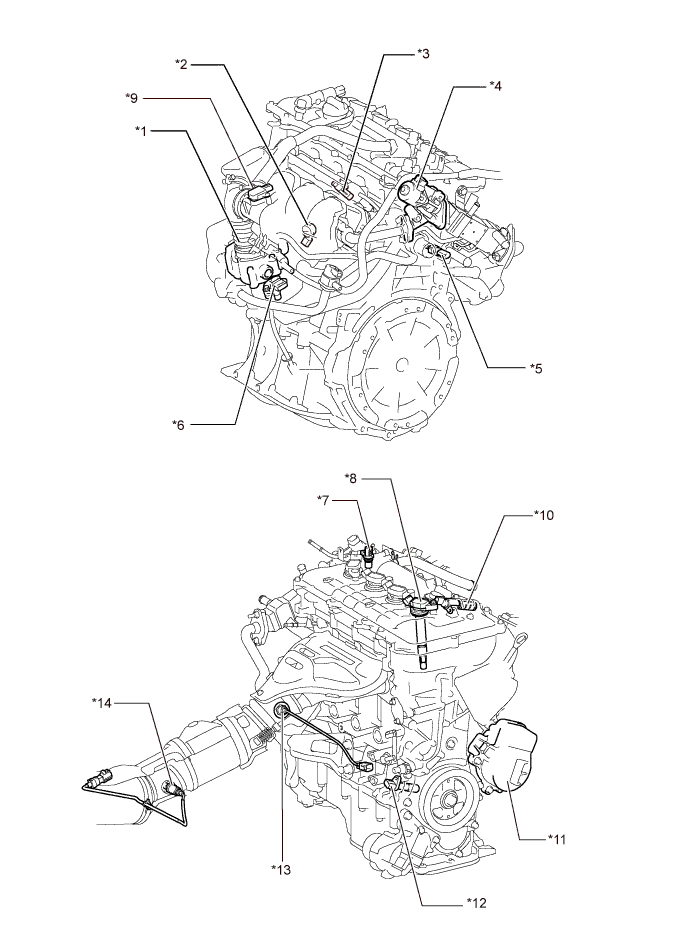

| *1 | Throttle Body Assembly - Throttle Control Motor - Throttle Position Sensor | *2 | Knock Control Sensor |
| *3 | Fuel Injector Assembly | *4 | EGR Valve Assembly |
| *5 | Engine Coolant Temperature Sensor | *6 | Manifold Absolute Pressure Sensor |
| *7 | Camshaft Position Sensor | *8 | Ignition Coil Assembly |
| *9 | Mass Air Flow Meter - Intake Air Temperature Sensor | *10 | Camshaft Timing Oil Control Valve |
| *11 | Engine Water Pump Assembly | *12 | Crankshaft Position Sensor |
| *13 | Air Fuel Ratio Sensor | *14 | Heated Oxygen Sensor |
