FUEL SYSTEM > PARTS LOCATION



W103918E01

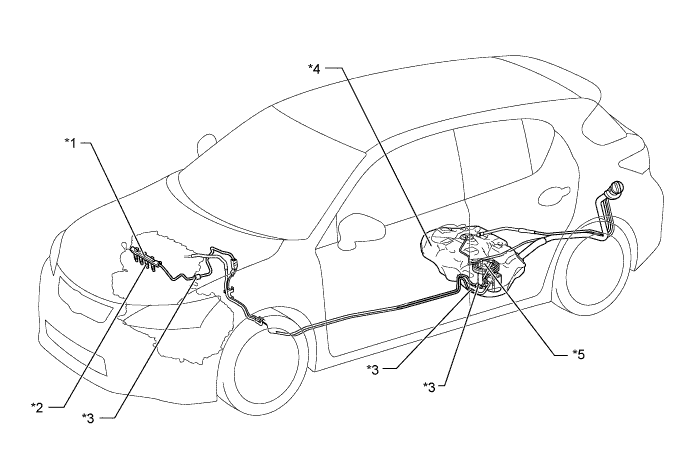

Text in Illustration
*1
Fuel Delivery Pipe Sub-assembly
*2
Fuel Injector Assembly
*3
Quick Connector
*4
Fuel Tank Assembly
*5
Fuel Suction with Pump and Gauge Tube Assembly
- Fuel Filter
- Fuel Pressure Regulator Assembly
- Fuel Sender Gauge Assembly
- Fuel Pump
- Charcoal Canister
-
-
