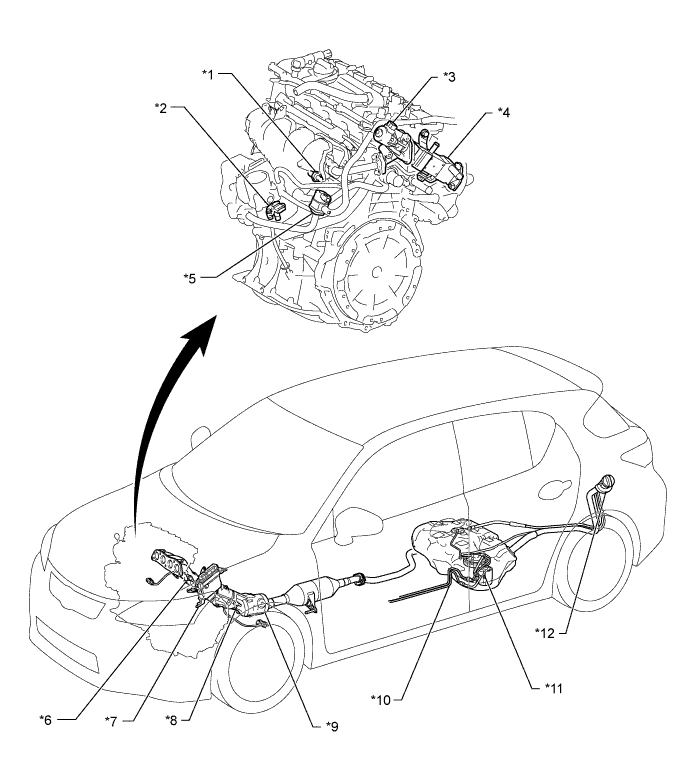

EMISSION CONTROL SYSTEM > PARTS LOCATION |
| *1 | PCV Valve | *2 | Manifold Absolute Pressure Sensor |
| *3 | EGR Valve Assembly | *4 | EGR Cooler |
| *5 | Purge VSV | *6 | Air Fuel Ratio Sensor |
| *7 | ECM | *8 | Heated Oxygen Sensor |
| *9 | Front Exhaust Pipe Assembly - TWC | *10 | Purge Air Line |
| *11 | Fuel Suction with Pump and Gauge Tube Assembly - Charcoal Canister | *12 | Canister Filter |
