COOLING SYSTEM > DETAILS



CONSTRUCTION


  1. Engine Water Pump Assembly



    1. An electric engine water pump assembly, which operates in response to ECM signals, regulates the coolant flow volume, thus, the warm-up performance is further enhanced as well as reducing the cooling loss.

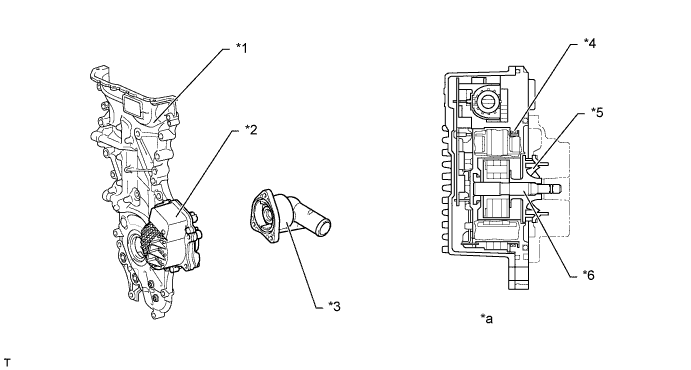

      W101572E02


      Text in Illustration
      *1
      		Timing Chain Cover Assembly
      		*2
      		Engine Water Pump Assembly
      *3
      		Water Inlet Housing Assembly
      - Thermostat
      		*4
      		Stator
      *5
      		Impeller
      		*6
      		Shaft
      *a
      		Cross Section
      		-
      		-



  2. Cooling Fan



    1. A ring type cooling fan is used to ensure efficient cooling performance and quieter operation.

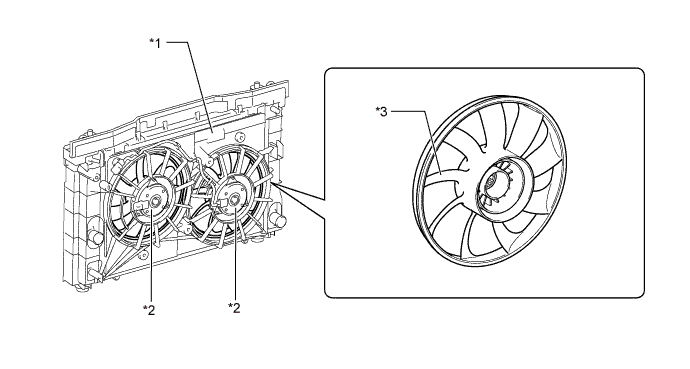

      W103138E01


      Text in Illustration
      *1
      		Radiator Assembly
      		*2
      		Cooling Fan Motor
      *3
      		Cooling Fan
      		-
      		-
