CRUISE CONTROL SYSTEM > PARTS LOCATION |

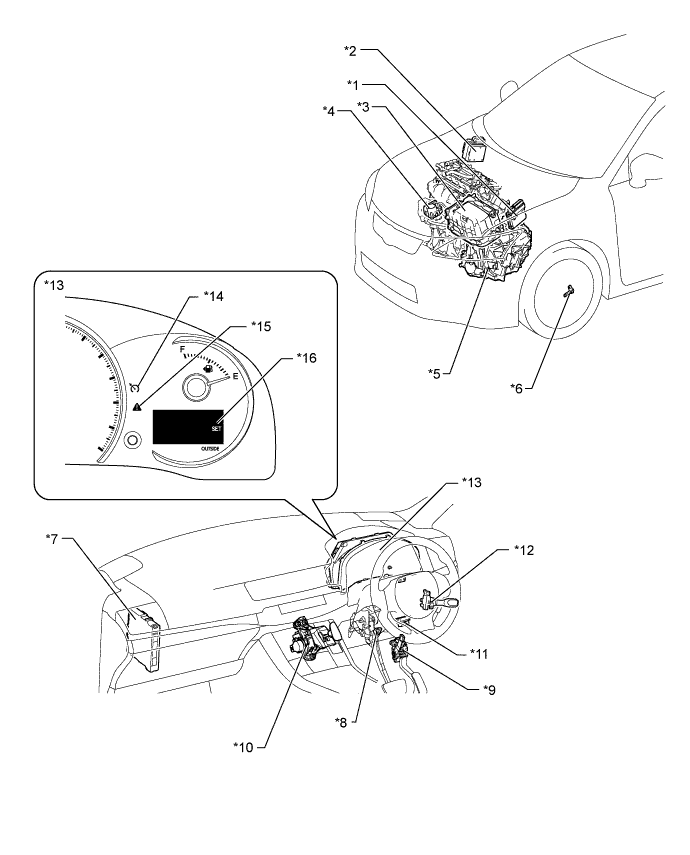

| *1 | ECM | *2 | Skid Control ECU |
| *3 | Inverter with Converter Assembly - MG ECU | *4 | Throttle Body Assembly - Throttle Control Motor |
| *5 | Hybrid Vehicle Transaxle Assembly - MG2 | *6 | Speed Sensor |
| *7 | Power Management Control ECU | *8 | Stop Light Switch Assembly |
| *9 | Accelerator Pedal Sensor Assembly | *10 | Shift Lever Position Sensors (Shift/Select) |
| *11 | DLC3 | *12 | Cruise Control Switch |
| *13 | Combination Meter Assembly | *14 | Cruise Control Indicator Light |
| *15 | Master Warning Light | *16 | Multi-information Display - Cruise Control SET Indication |

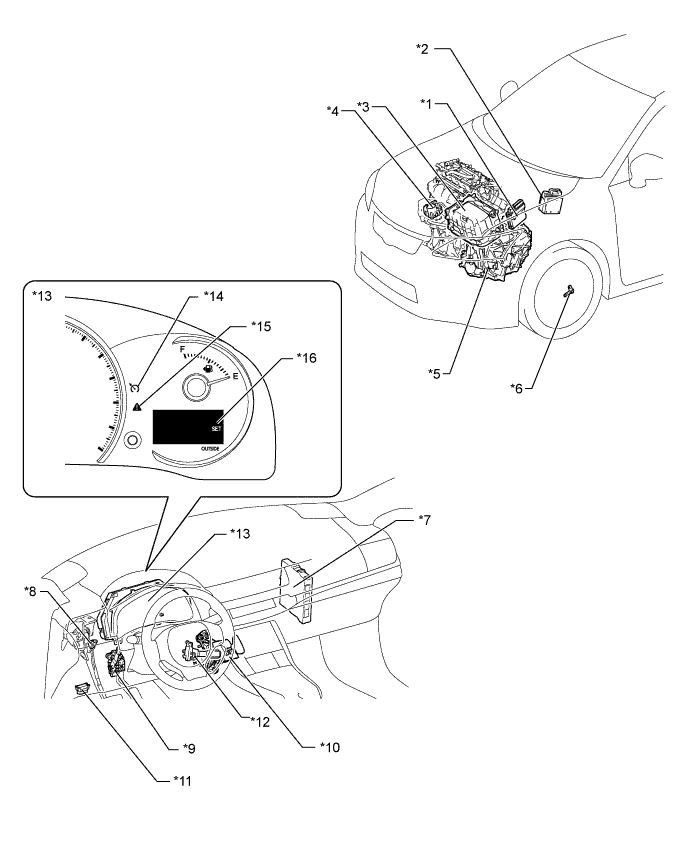

| *1 | ECM | *2 | Skid Control ECU |
| *3 | Inverter with Converter Assembly - MG ECU | *4 | Throttle Body Assembly - Throttle Control Motor |
| *5 | Hybrid Vehicle Transaxle Assembly - MG2 | *6 | Speed Sensor |
| *7 | Power Management Control ECU | *8 | Stop Light Switch Assembly |
| *9 | Accelerator Pedal Sensor Assembly | *10 | Shift Lever Position Sensors (Shift/Select) |
| *11 | DLC3 | *12 | Cruise Control Switch |
| *13 | Combination Meter Assembly | *14 | Cruise Control Indicator Light |
| *15 | Master Warning Light | *16 | Multi-information Display - Cruise Control SET Indication |
