DYNAMIC RADAR CRUISE CONTROL SYSTEM > PARTS LOCATION |

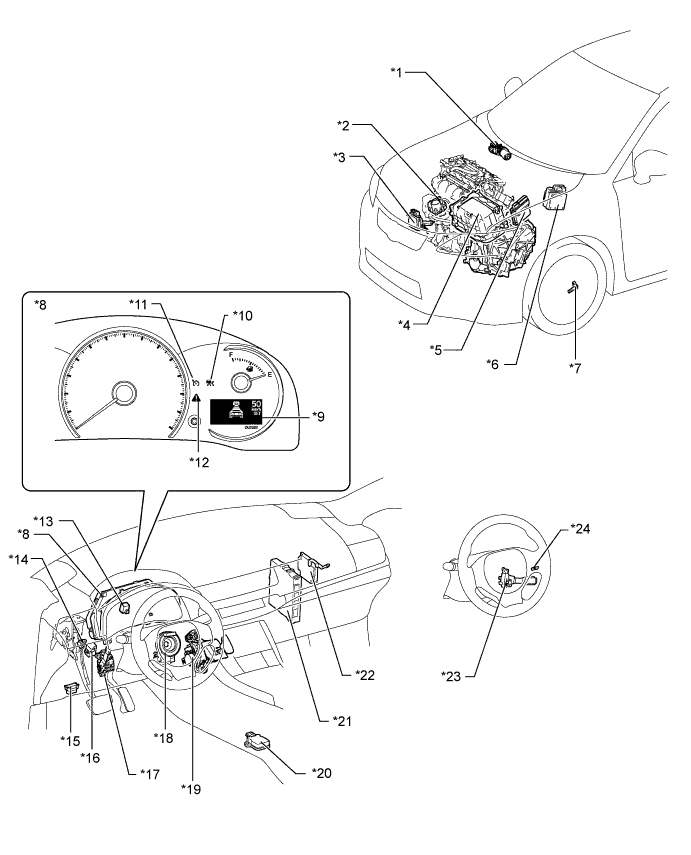

| *1 | Windshield Wiper Motor | *2 | Throttle Body - Throttle Control Motor |
| *3 | Millimeter Wave Radar Sensor | *4 | Inverter with Converter Assembly - MG ECU |
| *5 | ECM | *6 | Skid Control ECU |
| *7 | Speed Sensor | *8 | Combination Meter Assembly |
| *9 | Multi-information Display - Cruise Control SET Indication - Set Speed Display | *10 | Cruise Control Indicator Light (Vehicle-to-vehicle Distance Control Mode) |
| *11 | Cruise Control Indicator Light (Constant Speed Control Mode) | *12 | Master Warning Light |
| *13 | Skid Control Buzzer Assembly | *14 | Stop Light Switch Assembly |
| *15 | DLC3 | *16 | Stop Light Control Relay |
| *17 | Accelerator Pedal Sensor Assembly | *18 | Spiral Cable with Sensor - Steering Angle Sensor |
| *19 | Shift Lever Position Sensor | *20 | Yawrate Sensor |
| *21 | Power Management Control ECU | *22 | Driving Support ECU Assembly |
| *23 | Cruise Control Switch | *24 | Distance Control Switch |

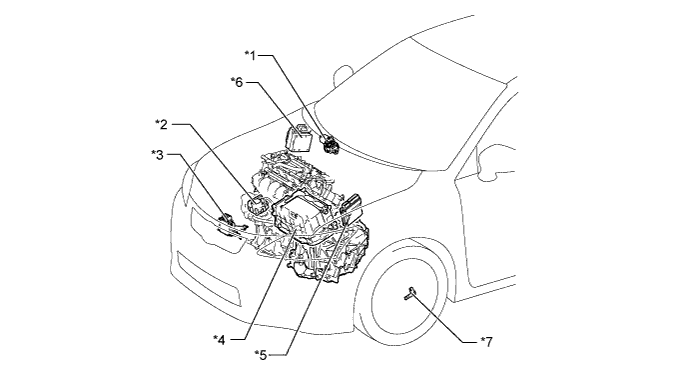

| *1 | Windshield Wiper Motor | *2 | Throttle Body - Throttle Control Motor |
| *3 | Millimeter Wave Radar Sensor | *4 | Inverter with Converter Assembly - MG ECU |
| *5 | ECM | *6 | Skid Control ECU |
| *7 | Speed Sensor | - | - |

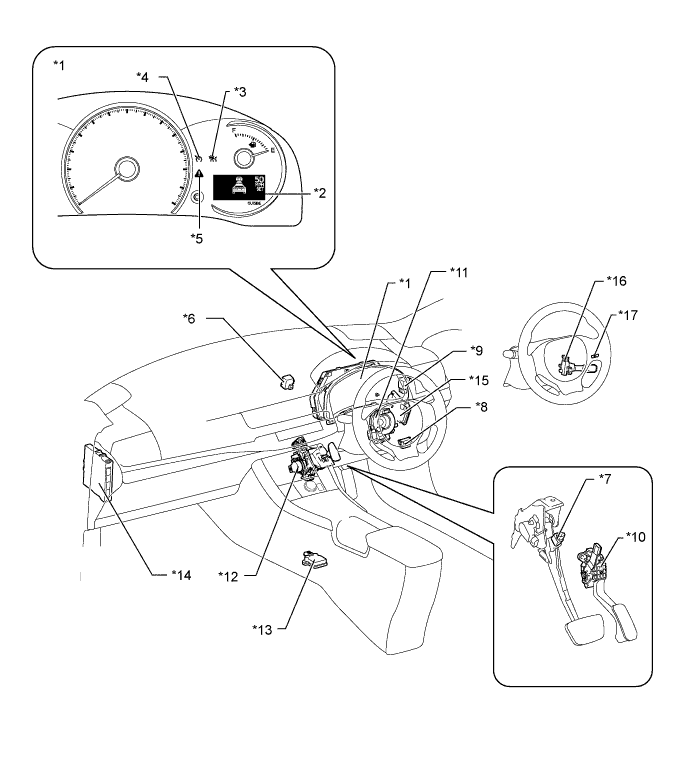

| *1 | Combination Meter Assembly | *2 | Multi-information Display - Cruise Control SET Indication - Set Speed Display |
| *3 | Cruise Control Indicator Light (Vehicle-to-vehicle Distance Control Mode) | *4 | Cruise Control Indicator Light (Constant Speed Control Mode) |
| *5 | Master Warning Light | *6 | Skid Control Buzzer Assembly |
| *7 | Stop Light Switch Assembly | *8 | DLC3 |
| *9 | Stop Light Control Relay | *10 | Accelerator Pedal Sensor Assembly |
| *11 | Spiral Cable with Sensor - Steering Angle Sensor | *12 | Shift Lever Position Sensor |
| *13 | Yawrate Sensor | *14 | Power Management Control ECU |
| *15 | Driving Support ECU Assembly | *16 | Cruise Control Switch |
| *17 | Distance Control Switch | - | - |
