POWER SEAT CONTROL SYSTEM > PARTS LOCATION |

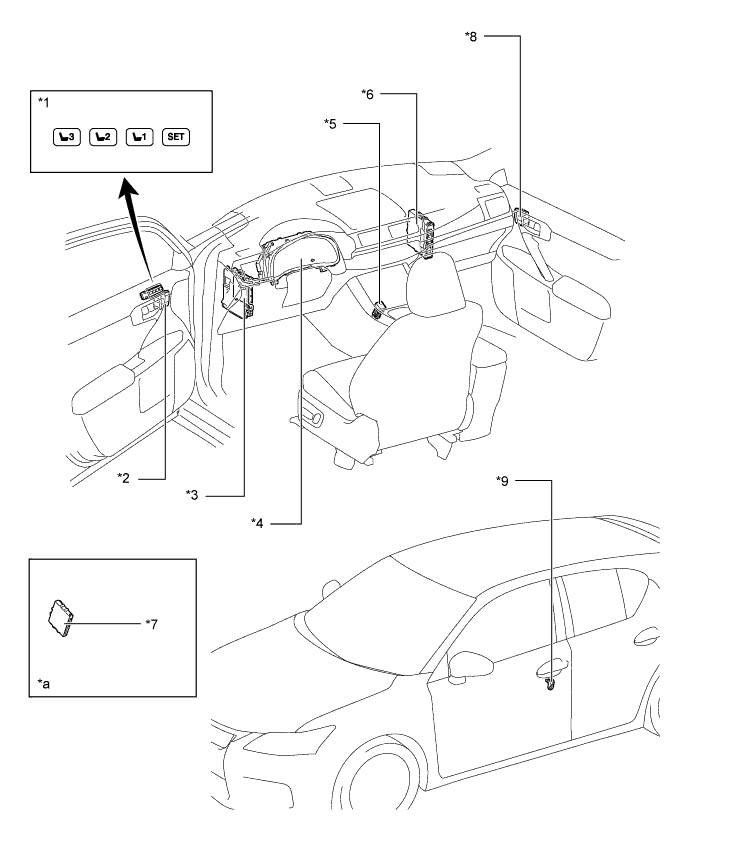

| *1 | Seat Memory Switch | *2 | Outer Mirror Control ECU LH |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Combination Meter Assembly |
| *5 | P Position Switch (Transmission Shift Switch Assembly) | *6 | Power Management Control ECU |
| *7 | Certification ECU (Smart Key ECU Assembly) | *8 | Outer Mirror Control ECU RH |
| *9 | Front Door Courtesy Light Switch Assembly LH | - | - |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |

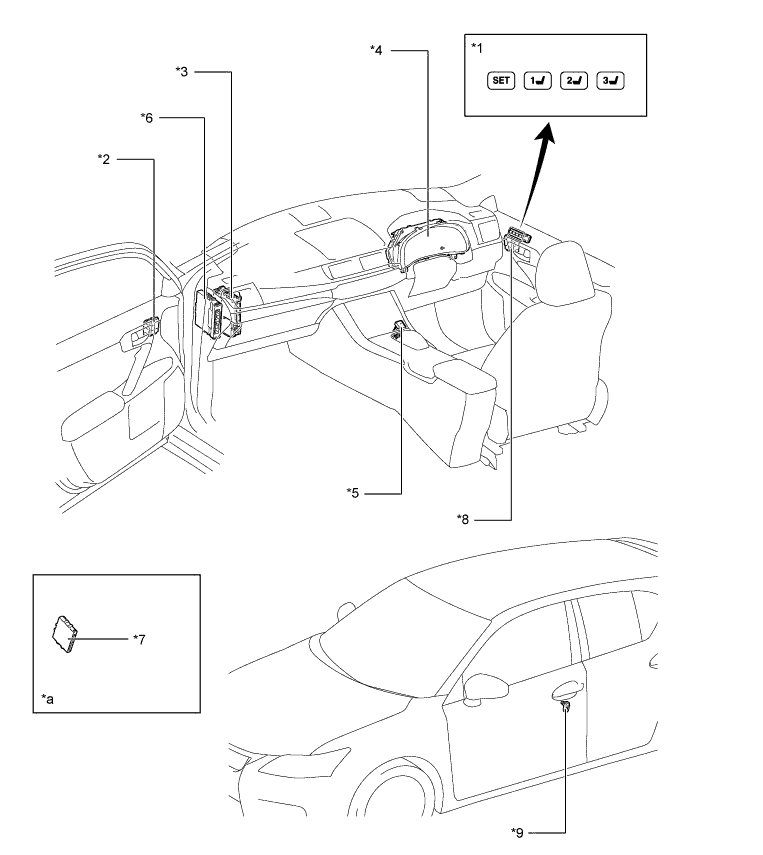

| *1 | Seat Memory Switch | *2 | Outer Mirror Control ECU LH |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Combination Meter Assembly |
| *5 | P Position Switch (Transmission Shift Main Switch) | *6 | Power Management Control ECU |
| *7 | Certification ECU (Smart Key ECU Assembly) | *8 | Outer Mirror Control ECU RH |
| *9 | Front Door Courtesy Light Switch Assembly LH | - | - |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |

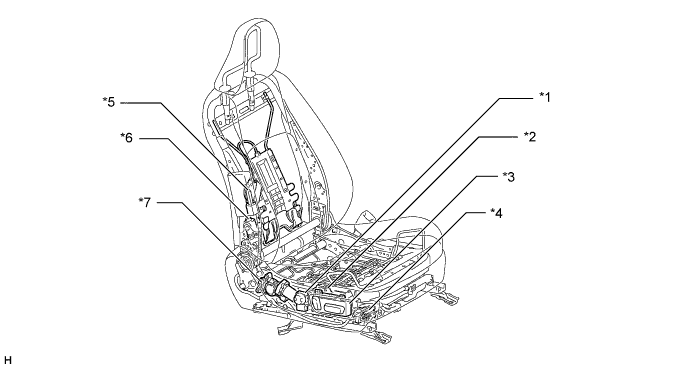

| *1 | Lumbar Support Switch (Power Seat Switch Assembly) | *2 | Front Vertical Motor - Vertical Position Sensor (Hall IC) |
| *3 | Front Power Seat Switch (Position Control ECU and Switch Assembly) | *4 | Slide Motor - Slide Position Sensor (Hall IC) |
| *5 | Lumbar Support Motor | *6 | Reclining Motor - Reclining Position Sensor (Hall IC) |
| *7 | Lifter Motor - Lifter Position Sensor (Hall IC) | - | - |

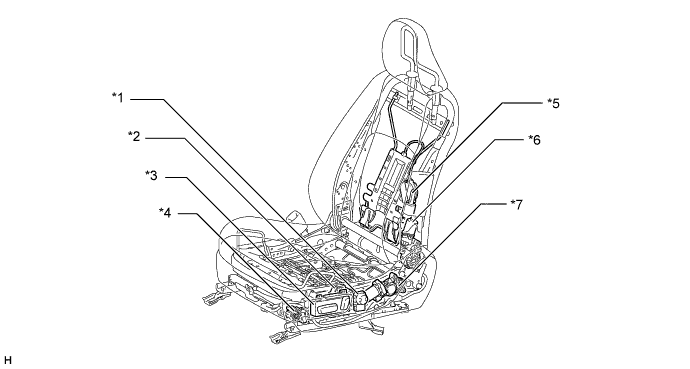

| *1 | Lumbar Support Switch (Power Seat Switch Assembly) | *2 | Front Vertical Motor - Vertical Position Sensor (Hall IC) |
| *3 | Front Power Seat Switch (Position Control ECU and Switch Assembly) | *4 | Slide Motor - Slide Position Sensor (Hall IC) |
| *5 | Lumbar Support Motor | *6 | Reclining Motor - Reclining Position Sensor (Hall IC) |
| *7 | Lifter Motor - Lifter Position Sensor (Hall IC) | - | - |
