WINDSHIELD / WINDOW GLASS SYSTEM > GENERAL



OUTLINE

  1. Front Wiper Deicer System

    1. The optional front wiper deicer system uses a heater element in the windshield glass to help reduce the formation of ice where the front wipers park.

    2. This system is controlled by the air conditioning amplifier assembly.

  2. Rear Defogger System with Heated Mirrors

    1. The rear defogger system uses the heater wires on the rear window glass to defog the rear window glass.

    2. This system is controlled by the air conditioning amplifier assembly.

    3. The rear defogger system operates together with the mirror heater function.



  3. Windshield Glass/Window Glass

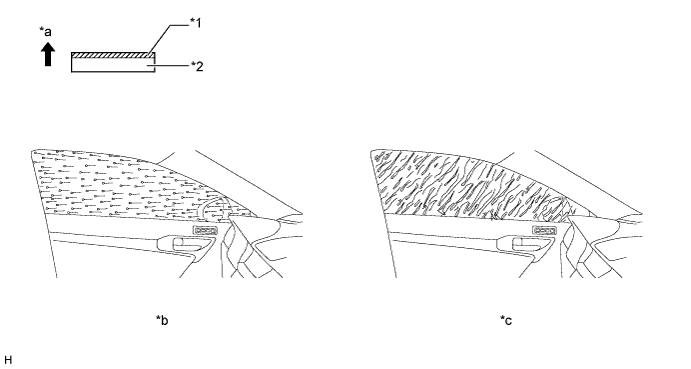

    1. The front doors are fitted with water repellent coated glass to increase visibility in rain.


      Y109614E01


      Text in Illustration
      *1
      		Water Repellent Coating
      		*2
      		Glass
      *a
      		Outside of the Car
      		*b
      		With Water Repellent Coating
      *c
      		Without Water Repellent Coating
      		-
      		-

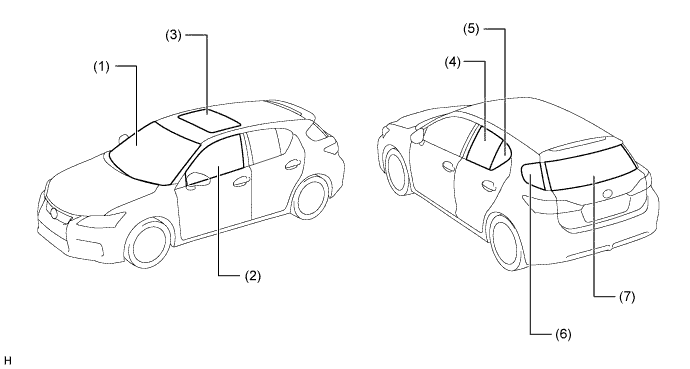

SPECIFICATION

Y109544E01


Glass Location
Color
Glass Type
Visible Light Transmission Rate
(1)
Windshield
Green
Laminated (Acoustic, UV Cut and IR Cut)
Min 75 %
(2)
Front Door
Green
Tempered (UV Cut)
Min 70%
(3)
Sliding Roof
Dark Gray
Tempered (UV Cut)
25 %
(4)
Rear Door
Green
Tempered (UV Cut)
Min 70%
Gray
Tempered (UV Cut)
20 %
(5)
Rear Door Quarter
Green
Tempered (UV Cut)
Min 70%
Gray
Tempered (UV Cut)
20 %
(6)
Rear Quarter
Green
Tempered (UV Cut)
Min 70%
Gray
Tempered (UV Cut)
Min 20 %
(7)
Back Window
Green
Tempered (UV Cut)
Min 70%
Gray
Tempered (UV Cut)
25 %
