WINDSHIELD / WINDOW GLASS SYSTEM > PARTS LOCATION

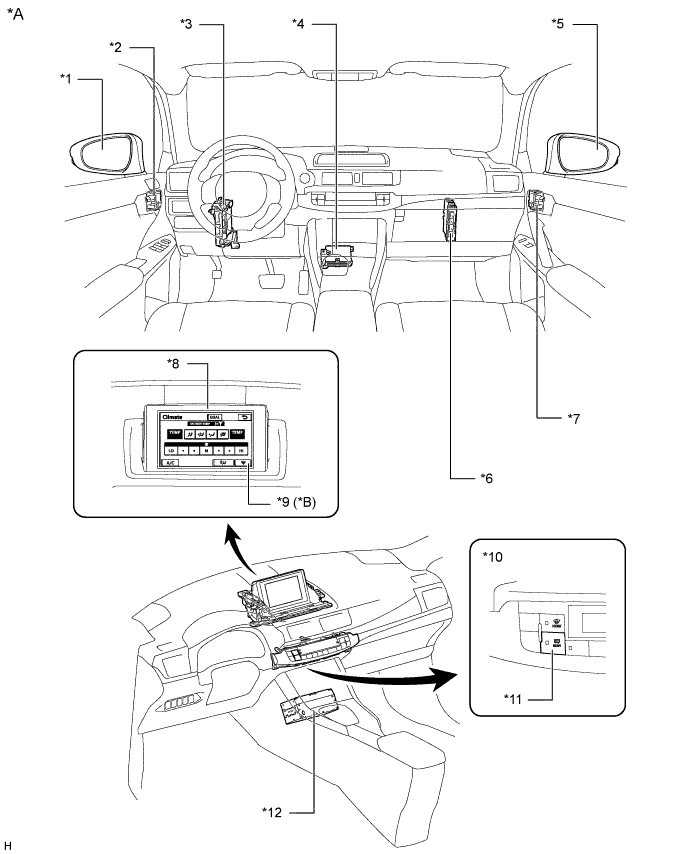

Y109545E03


Text in Illustration (Models with Navigation System:)
*A
LHD Models
*B
Models with Front Wiper Deicer System
*1
Outer Rear View Mirror Assembly LH
- Mirror Heater
*2
Outer Mirror Control ECU LH
*3
Main Body ECU (Multiplex Network Body ECU)
*4
Air Conditioning Amplifier Assembly
*5
Outer Rear View Mirror Assembly RH
- Mirror Heater
*6
Power Management Control ECU
*7
Outer Mirror Control ECU RH
*8
Center Instrument Cluster Finish Panel Assembly (Multi-display)
*9
Front Wiper Deicer Switch
*10
Integration Control and Panel Assembly
*11
Rear Defogger and Mirror Heater Switch
*12
Navigation Computer Sub-assembly

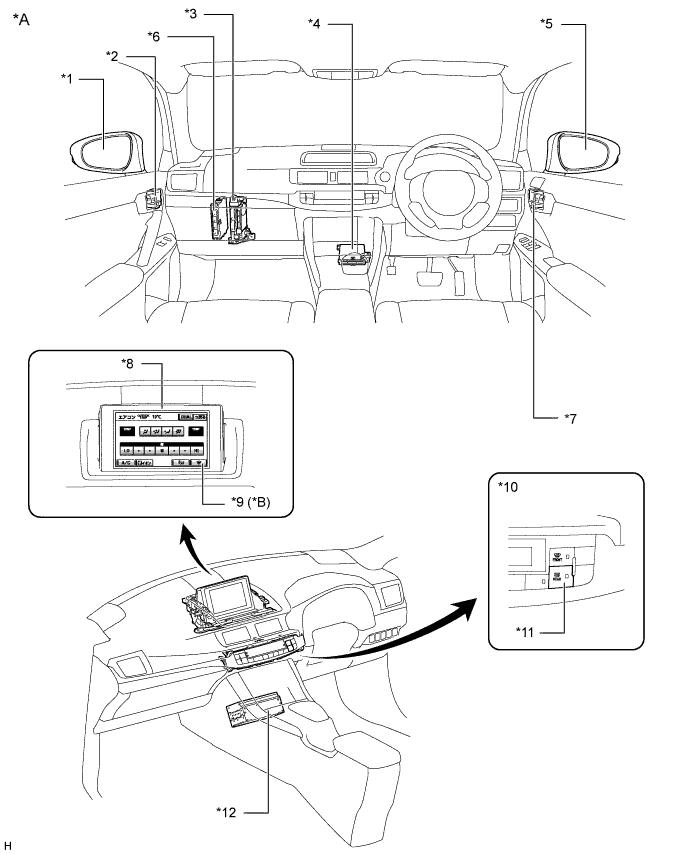

Y109547E02


Text in Illustration (Models with Navigation System:)
*A
RHD Models
*B
Models with Front Wiper Deicer System
*1
Outer Rear View Mirror Assembly LH
- Mirror Heater
*2
Outer Mirror Control ECU LH
*3
Main Body ECU (Multiplex Network Body ECU)
*4
Air Conditioning Amplifier Assembly
*5
Outer Rear View Mirror Assembly RH
- Mirror Heater
*6
Power Management Control ECU
*7
Outer Mirror Control ECU RH
*8
Center Instrument Cluster Finish Panel Assembly (Multi-display)
*9
Front Wiper Deicer Switch
*10
Integration Control and Panel Assembly
*11
Rear Defogger and Mirror Heater Switch
*12
Navigation Computer Sub-assembly

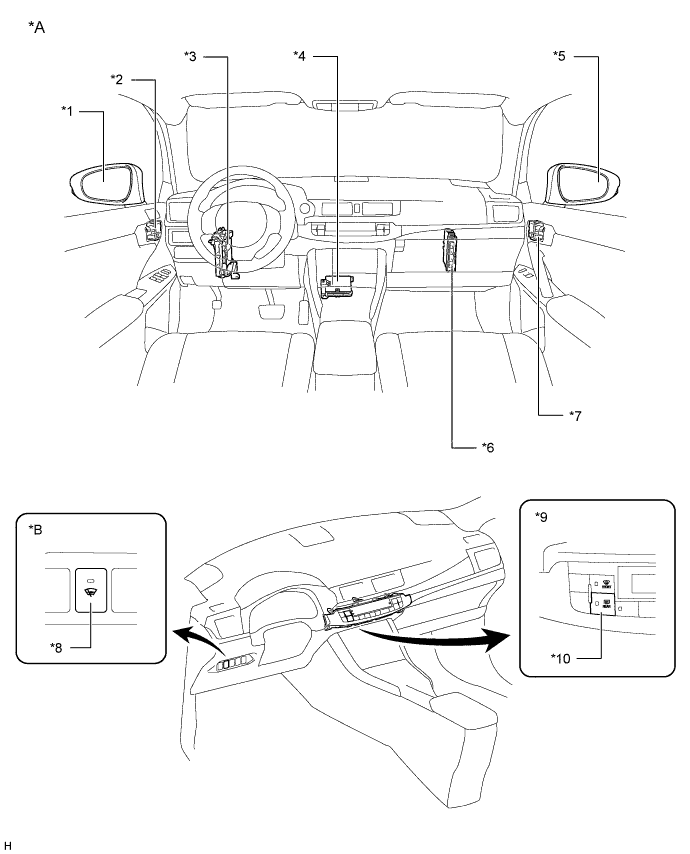

Y109552E03


Text in Illustration (Models without Navigation System:)
*A
LHD Models
*B
Models with Front Wiper Deicer System
*1
Outer Rear View Mirror Assembly LH
- Mirror Heater
*2
Outer Mirror Control ECU LH
*3
Main Body ECU (Multiplex Network Body ECU)
*4
Air Conditioning Amplifier Assembly
*5
Outer Rear View Mirror Assembly RH
- Mirror Heater
*6
Power Management Control ECU
*7
Outer Mirror Control ECU RH
*8
Windshield Deicer Switch (Front Wiper Deicer Switch)
*9
Air Conditioning Control Assembly (Center Cluster Module Circuit)
*10
Rear Defogger and Mirror Heater Switch

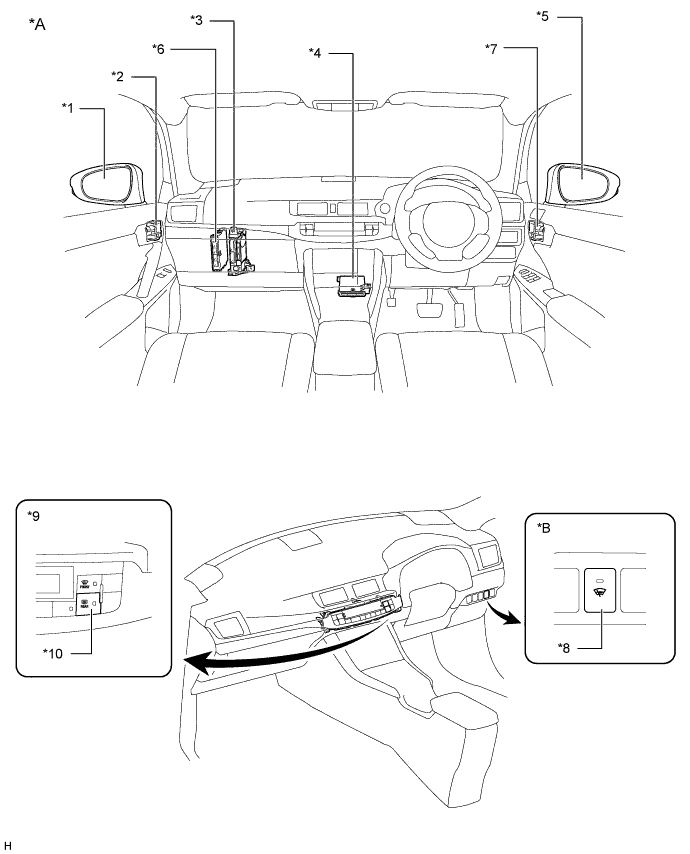

Y109553E01


Text in Illustration (Models without Navigation System:)
*A
RHD Models
*B
Models with Front Wiper Deicer System
*1
Outer Rear View Mirror Assembly LH
- Mirror Heater
*2
Outer Mirror Control ECU LH
*3
Main Body ECU (Multiplex Network Body ECU)
*4
Air Conditioning Amplifier Assembly
*5
Outer Rear View Mirror Assembly RH
- Mirror Heater
*6
Power Management Control ECU
*7
Outer Mirror Control ECU RH
*8
Windshield Deicer Switch (Front Wiper Deicer Switch)
*9
Air Conditioning Control Assembly (Center Cluster Module Circuit)
*10
Rear Defogger and Mirror Heater Switch

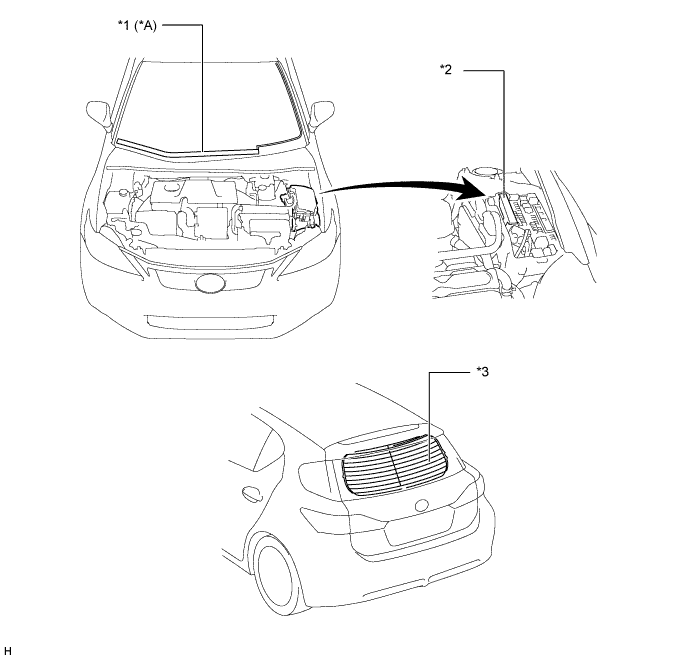

Y109550E01


Text in Illustration (LHD Models:)
*A
Models with Front Wiper Deicer System
-
-
*1
Windshield Deicer Wire
*2
No. 1 Integration Relay
*3
Rear Window Defogger Wire
-
-

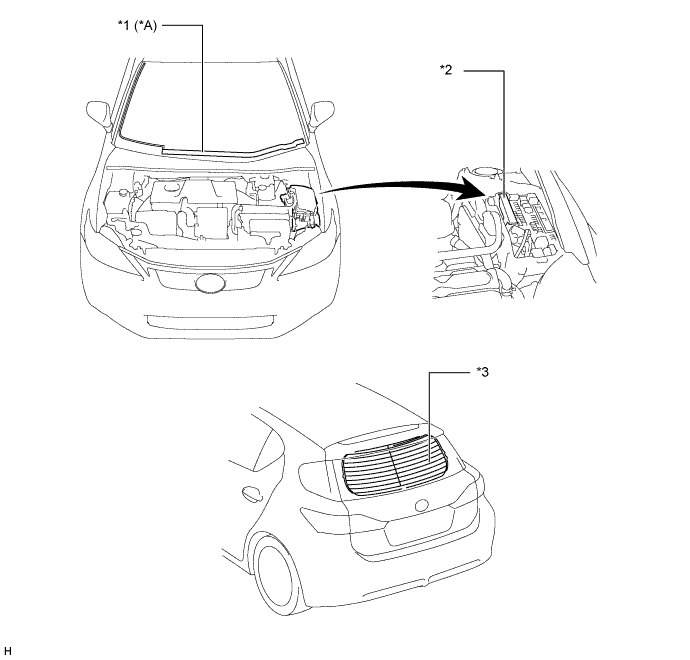

Y109551E01


Text in Illustration (RHD Models:)
*A
Models with Front Wiper Deicer System
-
-
*1
Windshield Deicer Wire
*2
No. 1 Integration Relay
*3
Rear Window Defogger Wire
-
-
