SLIDING ROOF SYSTEM > PARTS LOCATION



Y109211E01

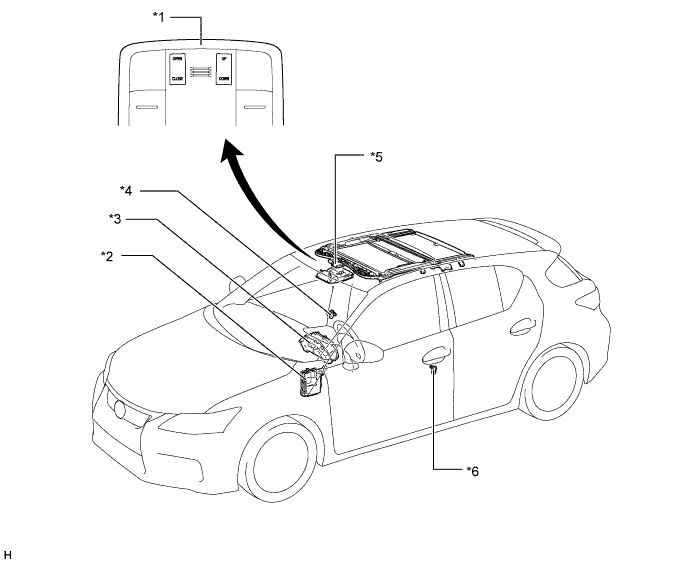

Text in Illustration (LHD Models:)
*1
Map Light Assembly
- Open/Close Switch
- Tilt Up/Tilt Down Switch
*2
Main Body ECU (Multiplex Network Body ECU )
*3
Combination Meter Assembly
- Multi-information Display
- Master Warning Light
*4
Front Door Courtesy Light Assembly (RH)
*5
Sliding Roof Drive Gear Assembly
- Sliding Roof ECU
*6
Front Door Courtesy Light Assembly (LH)

Y109210E01

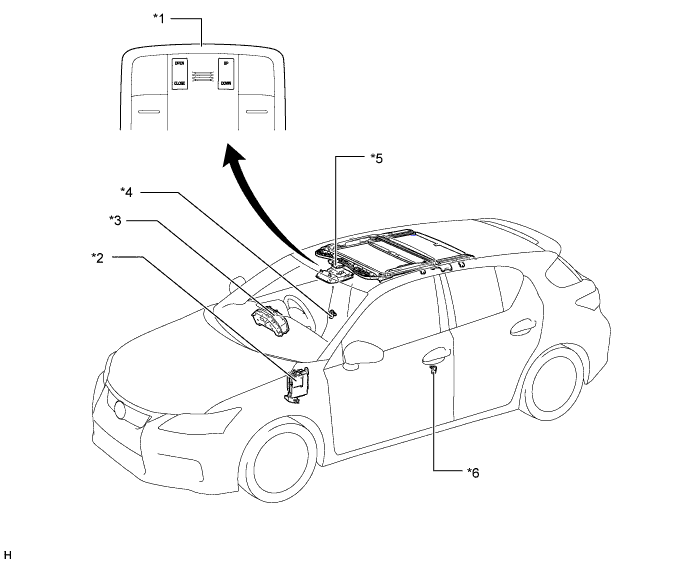

Text in Illustration (RHD Models:)
*1
Map Light Assembly
- Open/Close Switch
- Tilt Up/Tilt Down Switch
*2
Main Body ECU (Multiplex Network Body ECU )
*3
Combination Meter Assembly
- Multi-information Display
- Master Warning Light
*4
Front Door Courtesy Light Assembly (RH)
*5
Sliding Roof Drive Gear Assembly
- Sliding Roof ECU
*6
Front Door Courtesy Light Assembly (LH)
