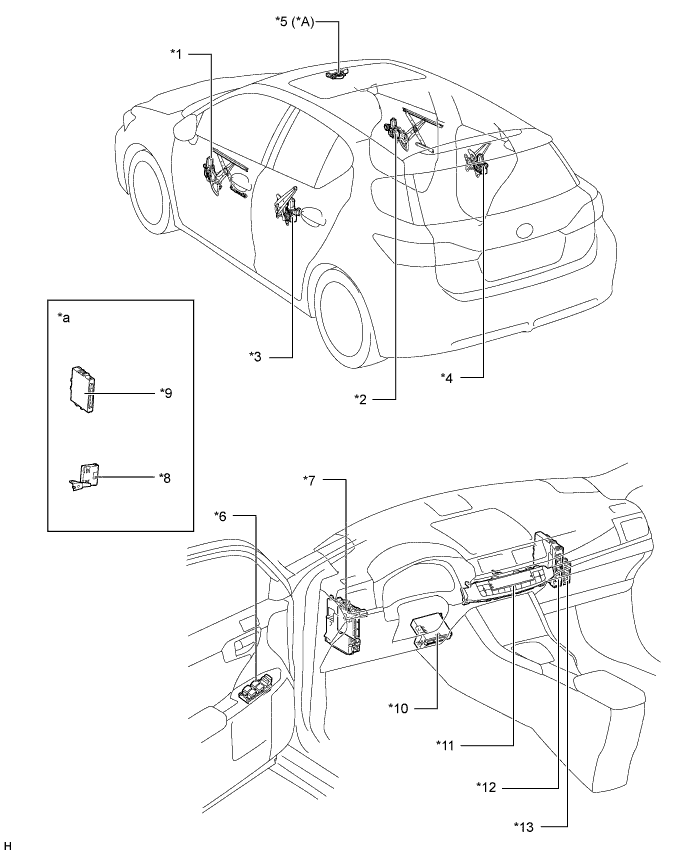

Text in Illustration (LHD Models:)
*A
| Models with Sliding Roof System
| -
| -
|
*1
| Power Window Regulator Motor Assembly (Driver)
| *2
| Power Window Regulator Motor Assembly (Front Passenger)
|
*3
| Power Window Regulator Motor Assembly (Rear LH)
| *4
| Power Window Regulator Motor Assembly (Rear RH)
|
*5
| Sliding Roof ECU (Sliding Roof Drive Gear Assembly)
| *6
| Multiplex Network Master Switch Assembly
|
*7
| Main Body ECU (Multiplex Network Body ECU)
| *8
| ID Code Box (Immobiliser Code ECU)
|
*9
| Certification ECU (Smart Key ECU Assembly)
| *10
| Air Conditioning Amplifier Assembly
|
*11
| Air Conditioning Control Assembly (Center Cluster Module Circuit)
| *12
| Power Management Control ECU
|
*13
| Transmission Control ECU Assembly
| -
| -
|
*a
| Refer to the Service Bulletin for the installation position of the part.
| -
| -
|

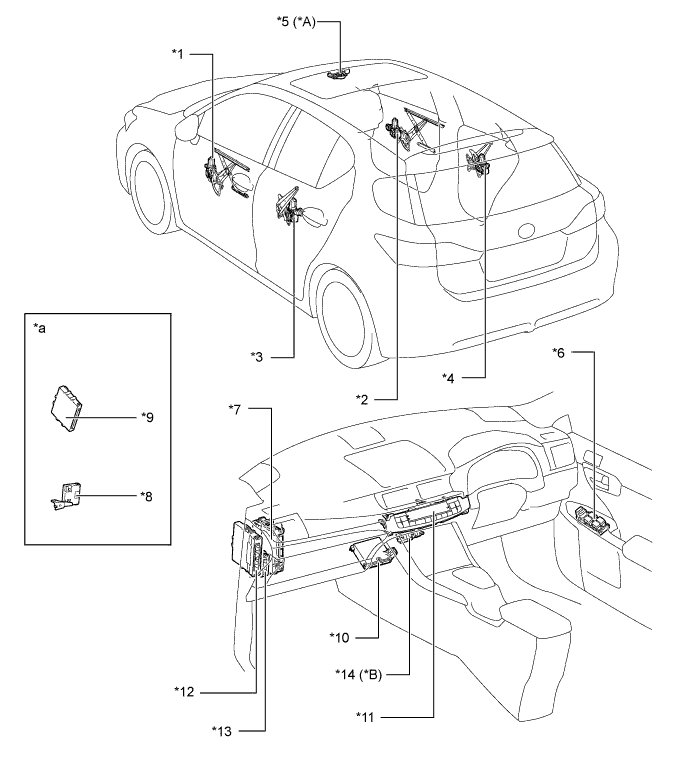

Text in Illustration (RHD Models:)
*A
| Models with Sliding Roof System
| *B
| Models with Double Locking System
|
*1
| Power Window Regulator Motor Assembly (Driver)
| *2
| Power Window Regulator Motor Assembly (Front Passenger)
|
*3
| Power Window Regulator Motor Assembly (Rear LH)
| *4
| Power Window Regulator Motor Assembly (Rear RH)
|
*5
| Sliding Roof ECU (Sliding Roof Drive Gear Assembly)
| *6
| Multiplex Network Master Switch Assembly
|
*7
| Main Body ECU (Multiplex Network Body ECU)
| *8
| ID Code Box (Immobiliser Code ECU)
|
*9
| Certification ECU (Smart Key ECU Assembly)
| *10
| Air Conditioning Amplifier Assembly
|
*11
| Air Conditioning Control Assembly (Center Cluster Module Circuit)
| *12
| Power Management Control ECU
|
*13
| Transmission Control ECU Assembly
| *14
| Double Lock Door Control Relay Assembly
|
*a
| Refer to the Service Bulletin for the installation position of the part.
| -
| -
|
