SEAT HEATER SYSTEM > PARTS LOCATION

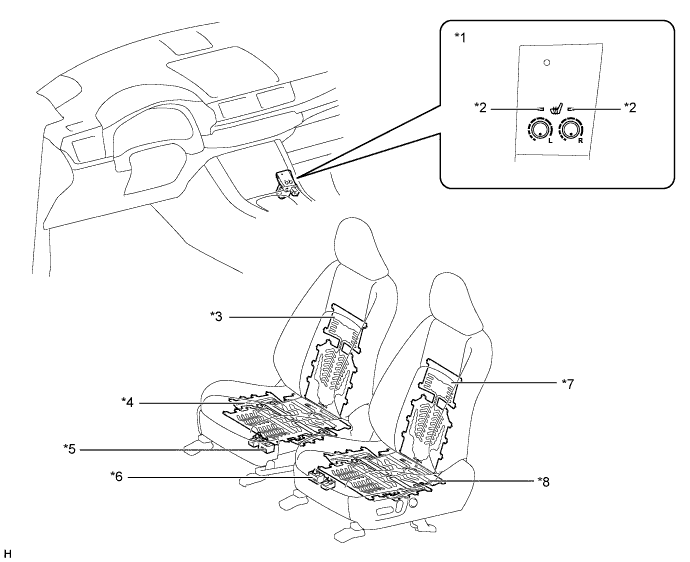

Y109208E01


Text in Illustration (LHD Models:)
*1
Seat Heater Switch (Combination Switch Assembly)
*2
Indicator Light
*3
Separate Type Front Seat Back Cover (Front Passenger)
- Seat Back Heater
*4
Separate Type Front Seat Cushion Cover (Front Passenger)
- Seat Cushion Heater
*5
Seat Heater Control Sub-assembly RH
*6
Seat Heater Control Sub-assembly LH
*7
Separate Type Front Seat Back Cover (Driver)
- Seat Back Heater
*8
Separate Type Front Seat Cushion Cover (Driver)
- Seat Cushion Heater

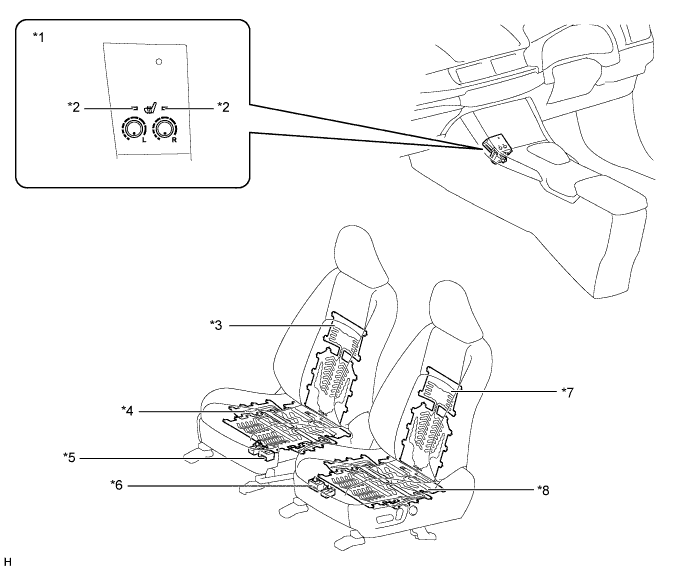

Y109209E01


Text in Illustration (RHD Models:)
*1
Seat Heater Switch (Combination Switch Assembly)
*2
Indicator Light
*3
Separate Type Front Seat Back Cover (Driver)
- Seat Back Heater
*4
Separate Type Front Seat Cushion Cover (Driver)
- Seat Cushion Heater
*5
Seat Heater Control Sub-assembly RH
*6
Seat Heater Control Sub-assembly LH
*7
Separate Type Front Seat Back Cover (Front Passenger)
- Seat Back Heater
*8
Separate Type Front Seat Cushion Cover (Front Passenger)
- Seat Cushion Heater
