HYBRID CONTROL SYSTEM > PARTS LOCATION |

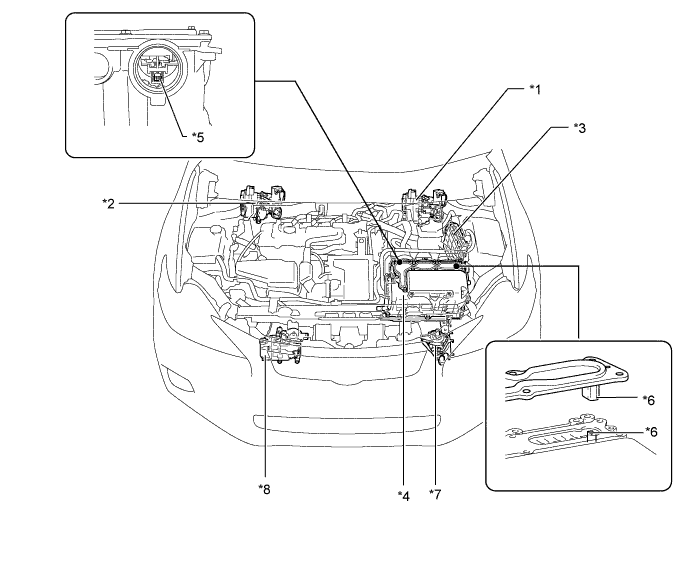

| *1 | Brake Booster with Master Cylinder (LHD Models) - Skid Control ECU | *2 | Brake Booster with Master Cylinder (RHD Models) - Skid Control ECU |
| *3 | ECM | *4 | Inverter with Converter Assembly - MG ECU - Boost Converter - DC-DC Converter - Inverter |
| *5 | Interlock Switch (For Power Cable Connector) | *6 | Interlock Switch (For Inverter Terminal Cover) |
| *7 | Inverter Water Pump Assembly | *8 | Compressor with Motor Assembly |

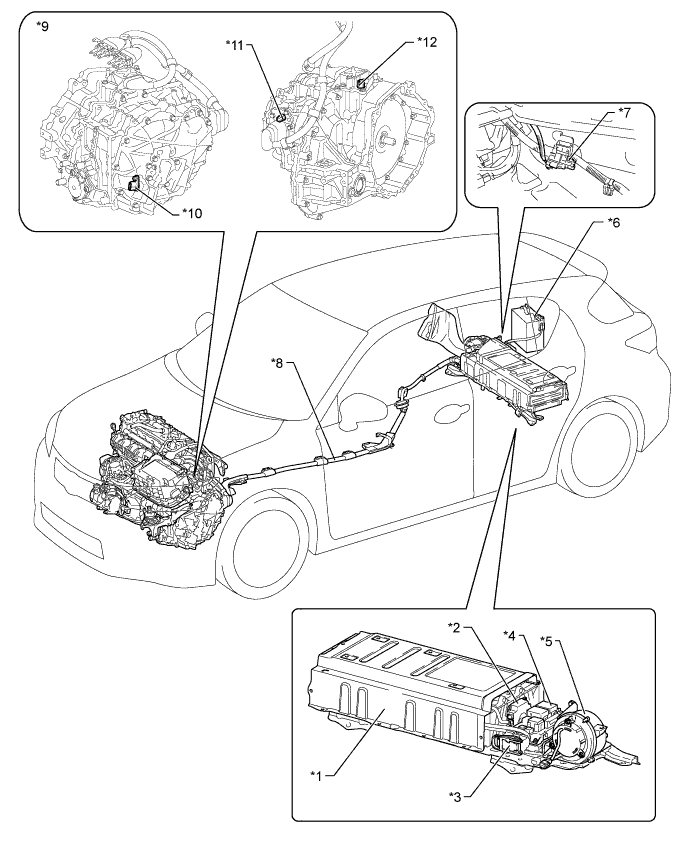

| *1 | HV Battery Assembly | *2 | Battery Smart Unit |
| *3 | Service Plug Grip | *4 | Hybrid Battery Junction Block - Battery Current Sensor - SMRB - SMRP - SMRG - Precharge Resistor |
| *5 | Battery Cooling Blower Assembly | *6 | Auxiliary Battery |
| *7 | Auxiliary Battery Temperature Sensor (Thermistor Assembly) | *8 | Power Cable |
| *9 | Hybrid Vehicle Transaxle Assembly | *10 | Motor Resolver (For MG2) |
| *11 | Motor Temperature Sensor (For MG2) | *12 | Generator Resolver (For MG1) Generator Temperature Sensor (For MG1) |

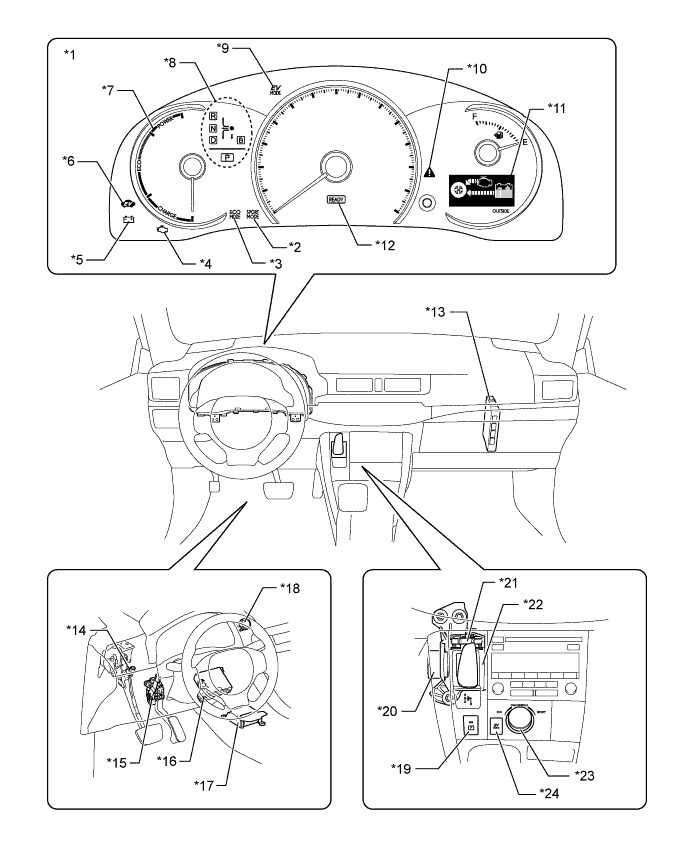

| *1 | Combination Meter Assembly | *2 | SPORT MODE Indicator Light |
| *3 | ECO MODE Indicator Light | *4 | Malfunction Indicator Lamp (MIL) |
| *5 | Discharge Warning Light | *6 | EV Drive Indicator Light |
| *7 | Hybrid System Indicator | *8 | Shift Position Indicator |
| *9 | EV Drive Mode Indicator Light | *10 | Master Warning Light |
| *11 | Multi-information Display | *12 | READY Indicator Light |
| *13 | Power Management Control ECU (HV CPU) | *14 | Stop Lamp Switch |
| *15 | Accelerator Pedal Sensor Assembly | *16 | Air Conditioning Amplifier Assembly |
| *17 | Airbag Sensor Assembly | *18 | Power Switch |
| *19 | P Position Switch (Transmission Shift Main Switch) | *20 | Shift Lever Position Sensor (Shift Sensor) |
| *21 | Shift Lever Position Sensor (Select Sensor) | *22 | Transmission Instrument Panel Shift Assembly |
| *23 | Drive Mode Select -SPORT Mode Switch -NORMAL Mode Switch -ECO Mode Switch | *24 | EV Drive Mode Switch |

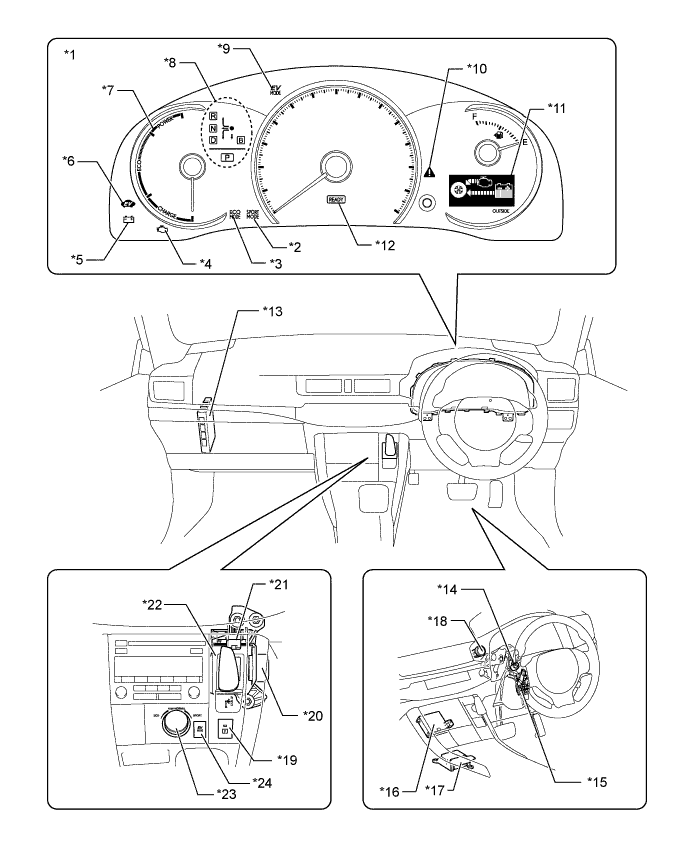

| *1 | Combination Meter Assembly | *2 | SPORT MODE Indicator Light |
| *3 | ECO MODE Indicator Light | *4 | Malfunction Indicator Lamp (MIL) |
| *5 | Discharge Warning Light | *6 | EV Drive Indicator Light |
| *7 | Hybrid System Indicator | *8 | Shift Position Indicator |
| *9 | EV Drive Mode Indicator Light | *10 | Master Warning Light |
| *11 | Multi-information Display | *12 | READY Indicator Light |
| *13 | Power Management Control ECU (HV CPU) | *14 | Stop Lamp Switch |
| *15 | Accelerator Pedal Sensor Assembly | *16 | Air Conditioning Amplifier Assembly |
| *17 | Airbag ECU Assembly | *18 | Power Switch |
| *19 | P Position Switch (Transmission Shift Main Switch) | *20 | Shift Lever Position Sensor (Shift Sensor) |
| *21 | Shift Lever Position Sensor (Select Sensor) | *22 | Transmission Instrument Panel Shift Assembly |
| *23 | Drive Mode Select -SPORT Mode Switch -NORMAL Mode Switch -ECO Mode Switch | *24 | EV Drive Mode Switch |
