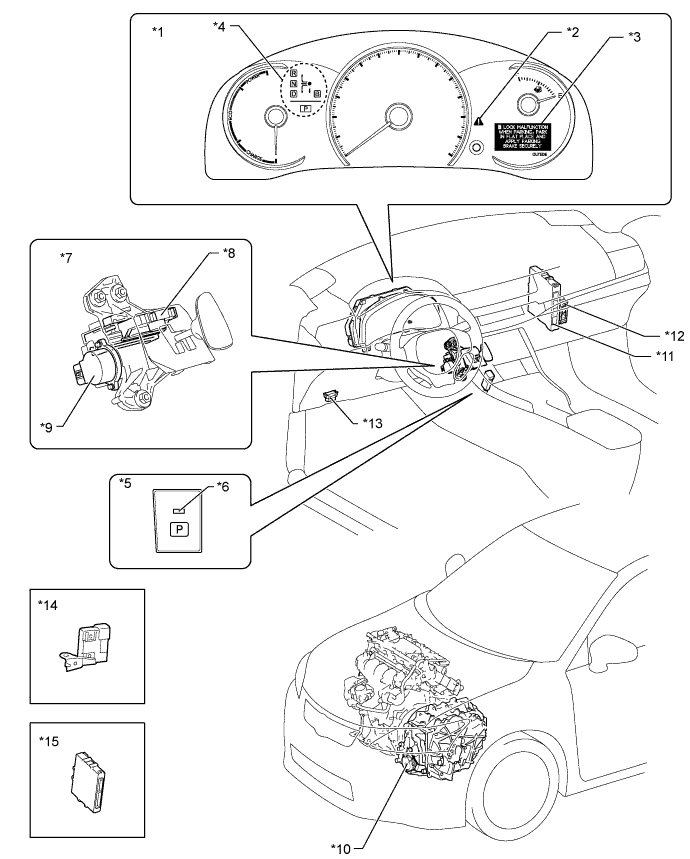

Text in Illustration (LHD Models:)
*1
| Combination Meter Assembly
- Buzzer
| *2
| Master Warning Light
|
*3
| Multi-information Display
| *4
| Shift Position Indicator
|
*5
| P Position Switch (Transmission Shift Main Switch)
| *6
| P Position Indicator Light
|
*7
| Transmission Instrument Panel Shift Assembly
| *8
| Shift Lever Position Sensor (Select Sensor)
|
*9
| Shift Lever Position Sensor (Shift Sensor)
| *10
| Shift Control Actuator Assembly
|
*11
| Power Management Control ECU (HV CPU)
| *12
| Transmission Control ECU Assembly
|
*13
| DLC3
| *14
| ID Code Box (Immobiliser Code ECU)*
|
*15
| Certification ECU (Smart Key ECU Assembly)*
| -
| -
|

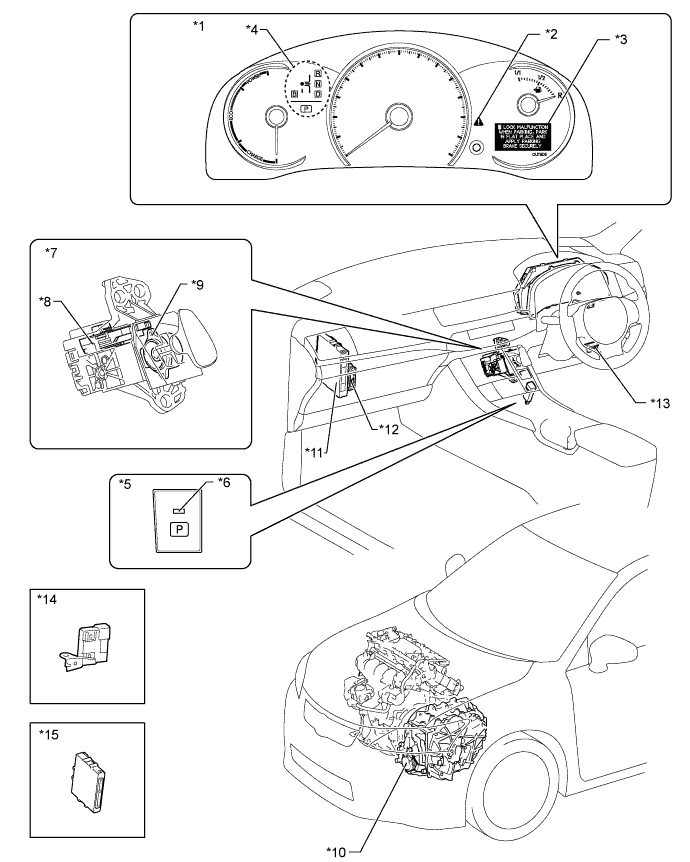

Text in Illustration (RHD Models:)
*1
| Combination Meter Assembly
- Buzzer
| *2
| Master Warning Light
|
*3
| Multi-information Display
| *4
| Shift Position Indicator
|
*5
| P Position Switch (Transmission Shift Main Switch)
| *6
| P Position Indicator Light
|
*7
| Transmission Instrument Panel Shift Assembly
| *8
| Shift Lever Position Sensor (Select Sensor)
|
*9
| Shift Lever Position Sensor (Shift Sensor)
| *10
| Shift Control Actuator Assembly
|
*11
| Power Management Control ECU (HV CPU)
| *12
| Transmission Control ECU Assembly
|
*13
| DLC3
| *14
| ID Code Box (Immobiliser Code ECU)*
|
*15
| Certification ECU (Smart Key ECU Assembly)*
| -
| -
|
