BRAKE CONTROL SYSTEM > PARTS LOCATION |

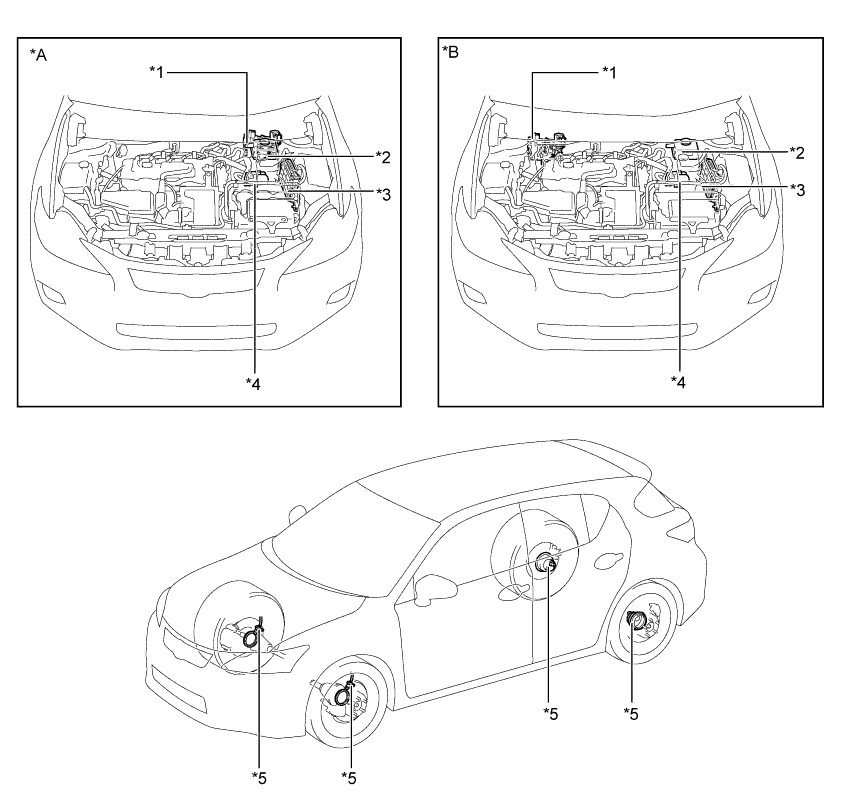

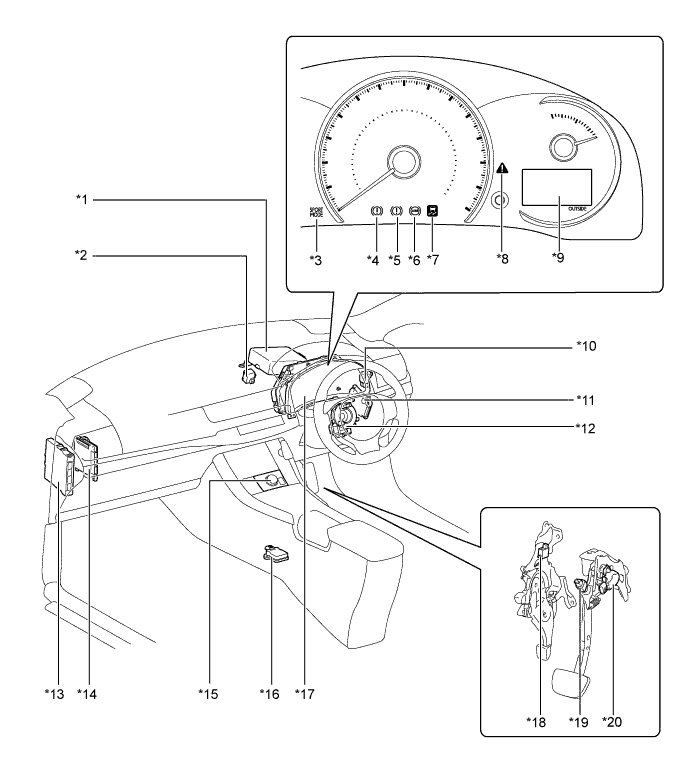

| *A | LHD Models | *B | RHD Models |
| *1 | Brake Booster with Master Cylinder - Hydraulic Brake Booster - Brake Actuator - Brake Stroke Simulator Cylinder Assembly - Skid Control ECU | *2 | Reservoir Tank - Brake Fluid Level Warning Switch |
| *3 | ECM | *4 | Brake Booster Pump Assembly |
| *5 | Speed Sensor | - | - |
| *1 | SPORT Mode Indicator Light | *2 | Brake Warning Light/Red (Malfunction) |
| *3 | Brake Warning Light/Yellow (Minor Malfunction) | *4 | ABS Warning Light |
| *5 | Slip Indicator Light | *6 | Master Warning Light |
| *7 | Multi-information Display | *8 | Power Steering ECU Assembly |
| *9 | Combination Meter Assembly | *10 | Stop Light Control Relay |
| *11 | Main Body ECU (Multiplex Network Body ECU) | *12 | Parking Brake Switch |
| *13 | Brake Pedal Stroke Sensor | *14 | Stop Light Switch Assembly |
| *15 | Skid Control Buzzer Assembly | *16 | Steering Angle Sensor |
| *17 | Drive Mode Select | *18 | Yawrate Sensor |
| *19 | Power Management Control ECU | *20 | Driving Support ECU Assembly |

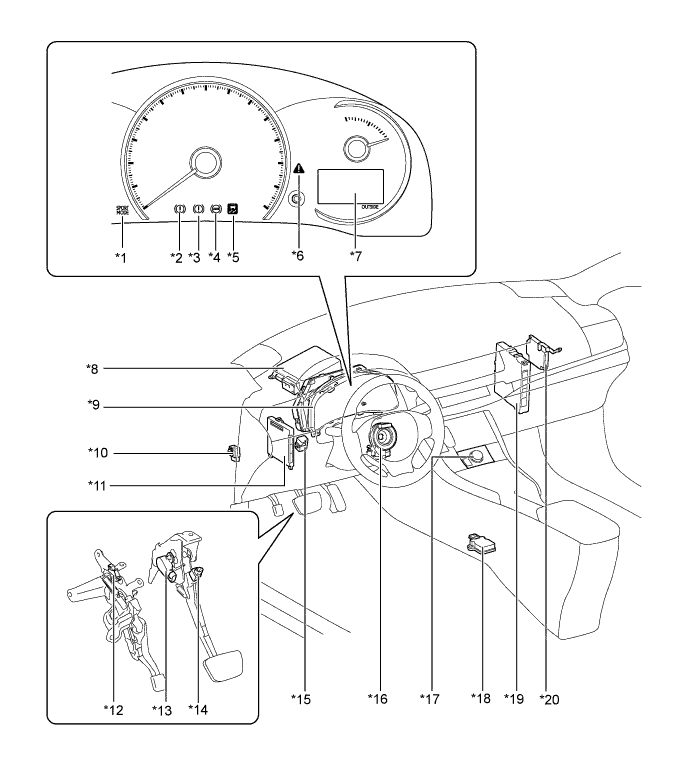

| *1 | Power Steering ECU Assembly | *2 | Skid Control Buzzer Assembly |
| *3 | SPORT Mode Indicator Light | *4 | Brake Warning Light/Red (Malfunction) |
| *5 | Brake Warning Light/Yellow (Minor Malfunction) | *6 | ABS Warning Light |
| *7 | Slip Indicator Light | *8 | Master Warning Light |
| *9 | Multi-information Display | *10 | Stop Light Control Relay |
| *11 | Driving Support ECU Assembly | *12 | Steering Angle Sensor |
| *13 | Power Management Control ECU | *14 | Main Body ECU (Multiplex Network Body ECU) |
| *15 | Drive Mode Select | *16 | Yawrate Sensor |
| *17 | Combination Meter Assembly | *18 | Parking Brake Switch Assembly |
| *19 | Stop Light Switch Assembly | *20 | Brake Pedal Stroke Sensor |
