AUDIO AND VISUAL SYSTEM > GENERAL



OUTLINE


  1. Audio Head Unit

    1. The following sound system are adopted:

      1. 6-speaker Surround Sound System
      2. 10-speaker LEXUS Premium Surround Sound System
      3. 13-speaker Mark Levinson Premium Surround Sound System

    2. Discs containing MPEG audio layer-3 (MP3) files and Windows Media Audio (WMA) files can be played.



    3. Discs with the marks shown below can be played.


      Y101581

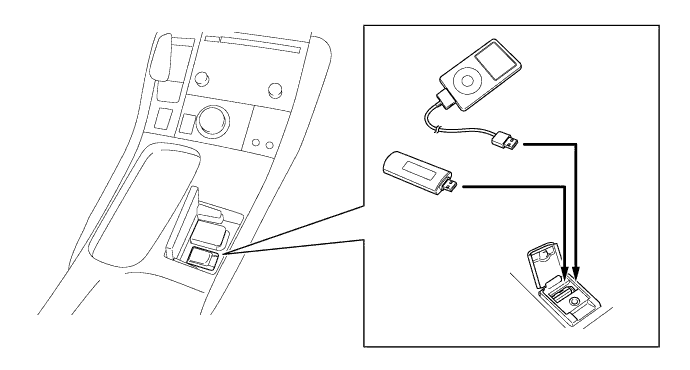

    4. A USB port is provided that enables operation of a USB memory stick, a portable audio player (USB type) or an iPod.

      HINT:
      1. iPod is a trademark of Apple Inc. that has been registered in the U.S.A. and other countries.
      2. Supported iPod models and firmware versions are listed below:

        Supported iPod Model
        		Supported Firmware Version
        iPod 5G
        		1.2.0 or higher
        iPod nano 1G
        		1.3.0 or higher
        iPod nano 2G
        		1.1.2 or higher
        iPod nano 3G
        		1.0.0 or higher
        iPod touch
        		1.1.0 or higher
        iPod classic
        		1.0.0 or higher
      3. Unsupported iPod models are listed in the table below:

        Unsupported Models
        		iPod shuffle
        iPhone
        iPod 1G, 2G, 3G, 4G
        iPod mini

      4. USB memory devices that meet the following specification are supported:

        USB Communication Speed
        		USB 2.0, Full Speed (12 Mbps)
        File System
        		FAT 16/32 (Windows)
        Device Class
        		Mass Storage Class
        File Format
        		MP3, WMA


        Y109249



    5. A removable audio holder is provided to accommodate devices in a stand-up position, such as an external audio device or USB type portable audio player.


      Y109454E01


      Text in Illustration
      *1
      		Audio Holder
      		-
      		-

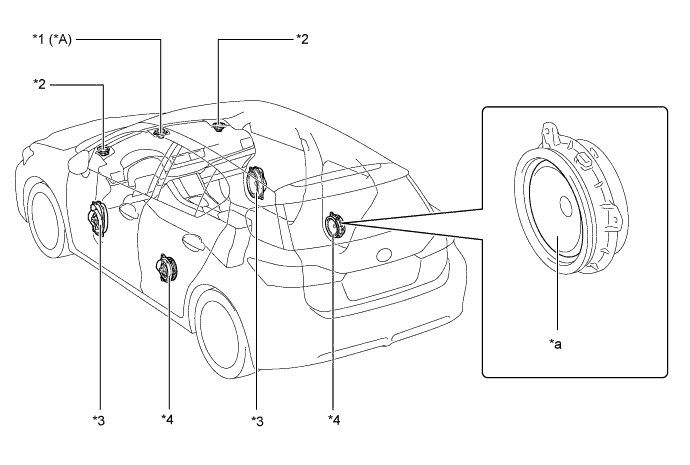

  2. Bamboo Charcoal-resin Speaker Diaphragm

    1. Resin material that is mixed with light and strong bamboo charcoal and bamboo fibers is used for the speaker diaphragm, realizing a clear, crisp and natural sound.



    2. These bamboo charcoal-resin speaker diaphragms are provided on the following speakers of the 6-speaker or 10-speaker system.


      Y109409E01


      Text in Illustration
      *A
      		Models with 10-speaker LEXUS Premium Surround Sound System
      		-
      		-
      *1
      		Center Squawker
      		*2
      		Side Squawker
      *3
      		Woofer
      		*4
      		Full Range
      *a
      		Bamboo Charcoal-resin Speaker Diaphragm
      		-
      		-

  3. Class D Amplifier

    1. A class D amplifier has been adopted on the 10-speaker LEXUS premium surround sound system and 13-speaker Mark Levinson premium surround sound system.

    2. A class D amplifier that exhibits extremely high amplification efficiency with high output, even with low power consumption, has been adopted. Additionally, as the amplifier generates little heat, this makes it possible to provide a smaller heatsink, realizing a compact and lightweight amplifier.

  4. Steering Pad Switch Assembly

    1. Switches that the driver often uses are provided on the steering wheel for convenience.

  5. Bluetooth Audio System

    1. The Bluetooth audio system enables users to enjoy music played on a portable player from the vehicle speakers via wireless communication.

      1. The Bluetooth specifications and profiles required for operation are as follows:

        Specification / Profile
        		Version
        Bluetooth Specification
        		Version 1.1 or higher
        		Required
        Version 2.0+EDR or higher
        		Recommended
        Profile
        		Advanced Audio Distribution Profile (A2DP) Version 1.0 or higher
        		Required
        Audio/Video Remote Control Profile (AVRCP) Version 1.0 or higher
        		Required
        Audio/Video Remote Control Profile (AVRCP) Version 1.3 or higher
        		Recommended

  6. Bluetooth Hands-free System

    1. The Bluetooth hands-free system allows the user to make or receive a call without taking their hands off the steering wheel when the system is linked with a Bluetooth-compatible cellular phone.

      Specification / Profile
      		Version
      Bluetooth Specification
      		Version 1.1 or higher
      		Required
      Version 2.0+EDR or higher
      		Recommended
      Profile
      		Hands Free Profile (HFP) Version 1.0 or higher
      		Required
      Hands Free Profile (HFP) Version 1.5 or higher
      		Recommended
      Object Push Profile (OPP) Version 1.1
      		Required
      Phone Book Access Profile (PBAP) Version 1.0
      		Required

      HINT:
      The operation of the interrupt call function of the Bluetooth hands-free system may vary with the Bluetooth phone or the telephone company that is used.

      Y101897
      		"Bluetooth" is a trademark owned by Bluetooth SIG, Inc.


SPECIFICATION

  1. Audio Head Unit

    1. Without Navigation System:

      Audio Head Unit Design
      		Specification
      		Destination
      Y109431
      1. AM/FM Tuner
      2. RDS-TMC Tuner
      3. Digital Audio Broadcast (DAB) radio: An optional radio antenna and tuner are necessary
      4. CD Player: Compatible with MP3 and WMA files
      5. CD-TEXT Display Function
      6. Bluetooth Audio
      7. Bluetooth Hands-free System
      8. Portable Audio Player (USB type) Interface
      9. iPod Interface
      10. Stereo Jack Adapter
      11. 6-speaker System
      12. Unit: Panasonic
      		Europe
      Y109432
      1. AM/FM Tuner
      2. RDS-TMC Tuner
      3. Digital Audio Broadcast (DAB) radio: An optional radio antenna and tuner are necessary
      4. CD Player: Compatible with MP3 and WMA files
      5. CD-TEXT Display Function
      6. Bluetooth Audio
      7. Bluetooth Hands-free System
      8. Portable Audio Player (USB type) Interface
      9. iPod Interface
      10. Stereo Jack Adapter
      11. 6-speaker System
      12. Unit: Panasonic
      Y109433
      1. AM/FM Tuner
      2. RDS-TMC Tuner
      3. Digital Audio Broadcast (DAB) radio: An optional radio antenna and tuner are necessary
      4. 6-CD Changer: Compatible with MP3 and WMA files
      5. CD-TEXT Display Function
      6. Bluetooth Audio
      7. Bluetooth Hands-free System
      8. Portable Audio Player (USB type) Interface
      9. iPod Interface
      10. Stereo Jack Adapter
      11. 10-speaker System
      12. Unit: Pioneer
      13. Stereo Component Amplifier Assembly: Panasonic
      Y109434
      1. AM/FM Tuner
      2. RDS-TMC Tuner
      3. Digital Audio Broadcast (DAB) radio: An optional radio antenna and tuner are necessary
      4. 6-CD Changer: Compatible with MP3 and WMA files
      5. CD-TEXT Display Function
      6. Bluetooth Audio
      7. Bluetooth Hands-free System
      8. Portable Audio Player (USB type) Interface
      9. iPod Interface
      10. Stereo Jack Adapter
      11. 10-speaker System
      12. Unit: Pioneer
      13. Stereo Component Amplifier Assembly: Panasonic
      Y109435
      1. AM/FM Tuner
      2. CD Player: Compatible with MP3 and WMA files
      3. CD-TEXT Display Function
      4. Portable Audio Player (USB type) Interface
      5. iPod Interface
      6. Stereo Jack Adapter
      7. 6-speaker System
      8. Unit: Panasonic
      		G.C.C. Countries
      Y109436
      1. AM/FM Tuner
      2. CD Player: Compatible with MP3 and WMA files
      3. CD-TEXT Display Function
      4. Bluetooth Audio
      5. Bluetooth Hands-free System
      6. Portable Audio Player (USB type) Interface
      7. iPod Interface
      8. Stereo Jack Adapter
      9. 10-speaker System
      10. Unit: Pioneer
      11. Stereo Component Amplifier Assembly: Panasonic
      Y109437
      1. AM/FM Tuner
      2. CD Player: Compatible with MP3 and WMA files
      3. CD-TEXT Display Function
      4. Portable Audio Player (USB type) Interface
      5. iPod Interface
      6. Stereo Jack Adapter
      7. 10-speaker System
      8. Unit: Panasonic
      		Thailand

    2. With Navigation System:

      Audio Head Unit Design
      		Specification
      		Destination
      Y109438
      1. AM/FM Tuner
      2. RDS-TMC Tuner
      3. Digital Audio Broadcast (DAB) radio: An optional radio antenna and tuner are necessary
      4. 6-CD Changer: Compatible with MP3 and WMA files
      5. Bluetooth Audio
      6. Bluetooth Hands-free System
      7. Portable Audio Player (USB type) Interface
      8. iPod Interface
      9. Stereo Jack Adapter
      10. 10-speaker System
      11. Unit: Pioneer
      12. Stereo Component Amplifier Assembly: Panasonic
      		Europe
      Y109439
      1. AM/FM Tuner
      2. RDS-TMC Tuner
      3. Digital Audio Broadcast (DAB) radio: An optional radio antenna and tuner are necessary
      4. 6-DVD Changer: Compatible with MP3 and WMA files
      5. Bluetooth Audio
      6. Bluetooth Hands-free System
      7. Portable Audio Player (USB type) Interface
      8. iPod Interface
      9. Stereo Jack Adapter
      10. 13-speaker System
      11. Unit: Pioneer
      12. Stereo Component Amplifier Assembly: Mark Levinson
      Y109440
      1. AM/FM Tuner
      2. RDS-TMC Tuner
      3. Digital Audio Broadcast (DAB) radio: An optional radio antenna and tuner are necessary
      4. 6-CD Changer: Compatible with MP3 and WMA files
      5. Bluetooth Audio
      6. Bluetooth Hands-free System
      7. Portable Audio Player (USB type) Interface
      8. iPod Interface
      9. Stereo Jack Adapter
      10. 10-speaker System
      11. Unit: Pioneer
      12. Stereo Component Amplifier Assembly: Panasonic
      Y109441
      1. AM/FM Tuner
      2. RDS-TMC Tuner
      3. Digital Audio Broadcast (DAB) radio: An optional radio antenna and tuner are necessary
      4. 6-DVD Changer: Compatible with MP3 and WMA files
      5. Bluetooth Audio
      6. Bluetooth Hands-free System
      7. Portable Audio Player (USB type) Interface
      8. iPod Interface
      9. Stereo Jack Adapter
      10. 13-speaker System
      11. Unit: Pioneer
      12. Stereo Component Amplifier Assembly: Mark Levinson
      Y109442
      1. AM/FM Tuner
      2. 6-CD Changer: Compatible with MP3 and WMA files
      3. Bluetooth Hands-free System
      4. Portable Audio Player (USB type) Interface
      5. iPod Interface
      6. Stereo Jack Adapter
      7. 10-speaker System
      8. Unit: Pioneer
      9. Stereo Component Amplifier Assembly: Panasonic
      		G.C.C. Countries
      Y109443
      1. AM/FM Tuner
      2. 6-DVD Changer: Compatible with MP3 and WMA files
      3. Bluetooth Hands-free System
      4. Portable Audio Player (USB type) Interface
      5. iPod Interface
      6. Stereo Jack Adapter
      7. 13-speaker System
      8. Unit: Pioneer
      9. Stereo Component Amplifier Assembly: Mark Levinson
      Y109444
      1. AM/FM Tuner
      2. 6-CD Changer: Compatible with MP3 and WMA files
      3. Bluetooth Hands-free System
      4. Portable Audio Player (USB type) Interface
      5. iPod Interface
      6. Stereo Jack Adapter
      7. 10-speaker System
      8. Unit: Pioneer
      9. Stereo Component Amplifier Assembly: Panasonic
      		Australia
      Y109445
      1. AM/FM Tuner
      2. 6-DVD Changer: Compatible with MP3 and WMA files
      3. Bluetooth Hands-free System
      4. Portable Audio Player (USB type) Interface
      5. iPod Interface
      6. Stereo Jack Adapter
      7. 13-speaker System
      8. Unit: Pioneer
      9. Stereo Component Amplifier Assembly: Mark Levinson
      Y109446
      1. AM/FM Tuner
      2. RDS-TMC Tuner
      3. 6-CD Changer: Compatible with MP3 and WMA files
      4. Bluetooth Hands-free System
      5. Portable Audio Player (USB type) Interface
      6. iPod Interface
      7. Stereo Jack Adapter
      8. 10-speaker System
      9. Unit: Pioneer
      10. Stereo Component Amplifier Assembly: Panasonic
      		Thailand
      Y109447
      1. AM/FM Tuner
      2. RDS-TMC Tuner
      3. 6-DVD Changer: Compatible with MP3 and WMA files
      4. Bluetooth Hands-free System
      5. Portable Audio Player (USB type) Interface
      6. iPod Interface
      7. Stereo Jack Adapter
      8. 13-speaker System
      9. Unit: Pioneer
      10. Stereo Component Amplifier Assembly: Mark Levinson

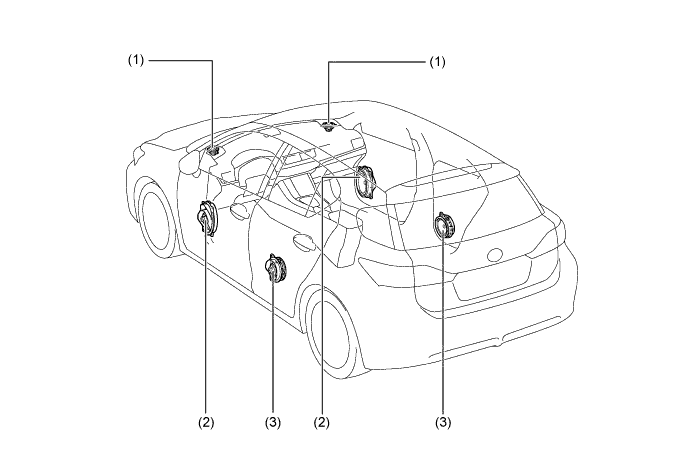

  2. 6-speaker Surround Sound System


    Y109257E01


    Location
    		Speaker Type
    		Quantity
    		Size
    		Impedance
    		Rated Input Power
    (1)
    		Side Squawker
    		2
    		9 cm
    		4 Ω
    		22 W
    (2)
    		Woofer
    		2
    		16 x 23 cm
    		4 Ω
    		22 W
    (3)
    		Full Range
    		2
    		16 cm
    		4 Ω
    		22 W

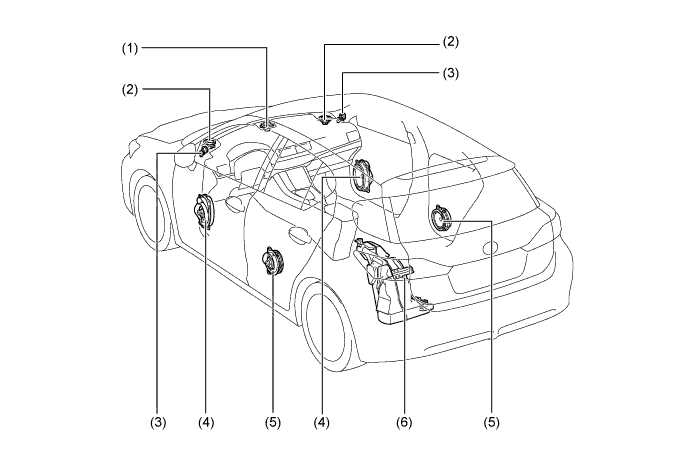

  3. 10-speaker Lexus Premium Surround Sound System


    Y109258E01


    Location
    		Speaker Type
    		Quantity
    		Size
    		Impedance
    		Rated Input Power
    (1)
    		Center Squawker
    		1
    		9.0 cm
    		4 Ω
    		22 W
    (2)
    		Side Squawker
    		1
    		9.0 cm
    		4 Ω
    		22 W
    (3)
    		Tweeter
    		2
    		2.5 cm
    		4 Ω
    		2 W
    (4)
    		Woofer
    		2
    		16 x 23 cm
    		4 Ω
    		22 W
    (5)
    		Full Range
    		2
    		16 cm
    		4 Ω
    		22 W
    (6)
    		Sub Woofer
    		1
    		20 cm
    		2 Ω
    		40 W

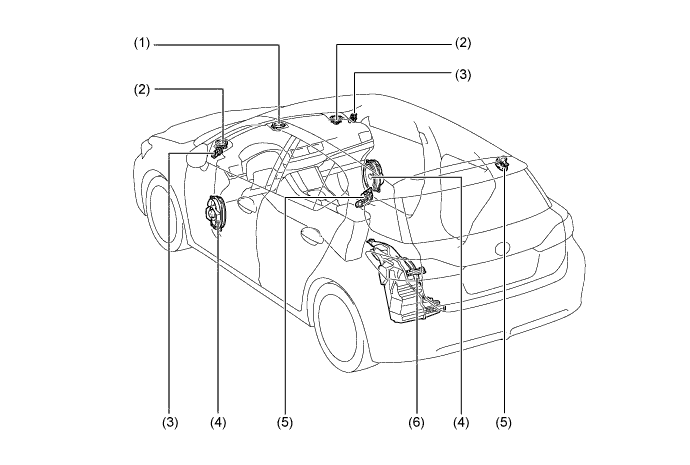

  4. 13-speaker Mark Levinson Surround Sound System


    Y109259E01


    Location
    		Speaker Type
    		Quantity
    		Size
    		Impedance
    		Rated Input Power
    (1)
    		Center Squawker (Coaxial)
    		1 + 1
    		9 cm
    		6 Ω
    		15 W
    (2)
    		Side Squawker
    		2
    		9 cm
    		6 Ω
    		15 W
    (3)
    		Tweeter
    		2
    		2.5 cm
    		-
    		20 W
    (4)
    		Woofer
    		2
    		16 x 23 cm
    		6 Ω
    		40 W
    (5)
    		Squawker (Coaxial)
    		(1 + 1) x 2
    		9 cm
    		6 Ω
    		15 W
    (6)
    		Sub Woofer
    		1
    		20 cm
    		12 Ω
    		120 W

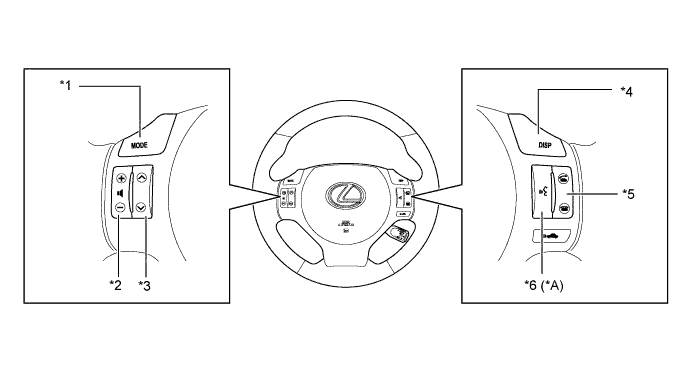

  5. Steering Pad Switch

    Item
    		Switch
    		Equipment
    Audio
    		- Volume +/-
    - Seek +/-
    - MODE
    		X
    Telephone
    		- On Hook
    - Off Hook
    		X (Models with Bluetooth Hands-free System)
    - (Models without Bluetooth Hands-free System)
    Multi-information Display
    		DISP
    		X

    1. X: Equipped

    Y109250E01


    Text in Illustration
    *A
    		Models with Bluetooth Hands-free System
    		-
    		-
    *1
    		MODE Switch
    		*2
    		Volume Switch
    *3
    		Seek Switch
    		*4
    		DISP Switch
    *5
    		On/Off Hook Switch
    		*6
    		Voice Switch


MAIN FEATURES

  1. Sound Library

    1. Up to 2000 tracks can be recorded to the HDD from audio discs (based on 5-minute tracks recorded at 128 kbps).

    2. Tracks from a CD are recorded at 4 times normal play speed.

    3. The recorded tracks will be provided with album, artist, genre and title names using the Gracenote Media Database (CDDB) and stored in the sound library on the HDD. (Models for Europe only)

    4. Album, artist, genre and title names for recorded tracks can be input or edited freely.

    5. These names can help you search for a track easily.

      HINT:
      1. Recording equipment should be used only for lawful copying. You are advised to carefully confirm what is lawful copying in the country in which you are making a copy.
      2. Copying of copyright material such as films or music is unlawful unless permitted by a legal exception or consent granted by the owners of the rights to the content.
      3. Music recognition technology and related data are provided by Gracenote.
      4. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.
      5. CD and music-related data from Gracenote, Inc., copyright 2000 - 2008 Gracenote.
      6. Gracenote Software, copyright 2000 - 2008 Gracenote.
      7. This product and service may covered by one or more of the following U.S. Patents: #5,987,525; #6,061,680; #6,154,773, #6,161,132, #6,230,192, #6,230,207, #6,240,459, #6,330,593, and other patents supplied or pending.
      8. Some services supplied under license from Open Globe, Inc. for U.S. patent: #6,304,523.
      9. Gracenote and CDDB are registered trademarks of Gracenote.
      10. The Gracenote logo and logotype, and the "Powered by Gracenote" logo are trademarks of Gracenote.


      Y103230
      		Gracenote and CDDB is a trademark owned by Gracenote.
