AUDIO AND VISUAL SYSTEM > PARTS LOCATION |

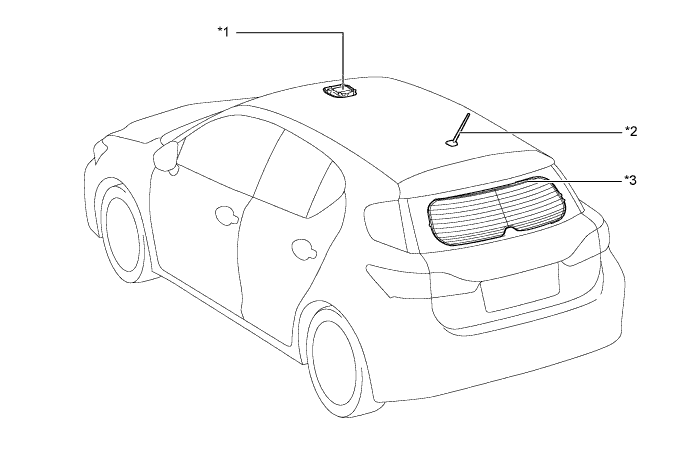

| *1 | Map Light Assembly - Telephone Microphone Assembly | *2 | Roof Antenna Assembly - AM - FM Main |
| *3 | Window Glass Antenna - FM Sub | - | - |
| *A | Models with HDD Navigation System | *B | Models with DVD Navigation System |

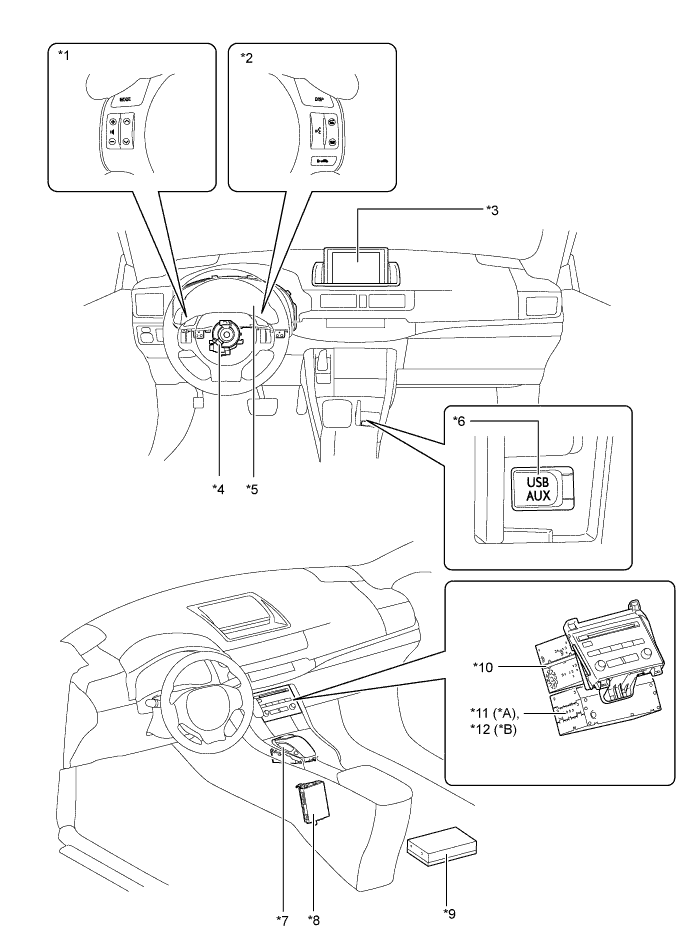

| *1 | Steering Pad Switch Assembly - Volume - Seek - Mode | *2 | Steering Pad Switch Assembly - Voice - Telephone |
| *3 | Multi Display | *4 | Spiral with Sensor Cable Sub-assembly |
| *5 | Combination Meter Assembly | *6 | No.1 Stereo Jack Adapter Assembly |
| *7 | Remote Touch | *8 | Multimedia Interface ECU |
| *9 | Stereo Component Amplifier Assembly | *10 | Radio Receiver Assembly |
| *11 | Navigation Computer Sub-assembly | *12 | Display and Navigation Module Display |
| *A | Models with HDD Navigation System | *B | Models with DVD Navigation System |

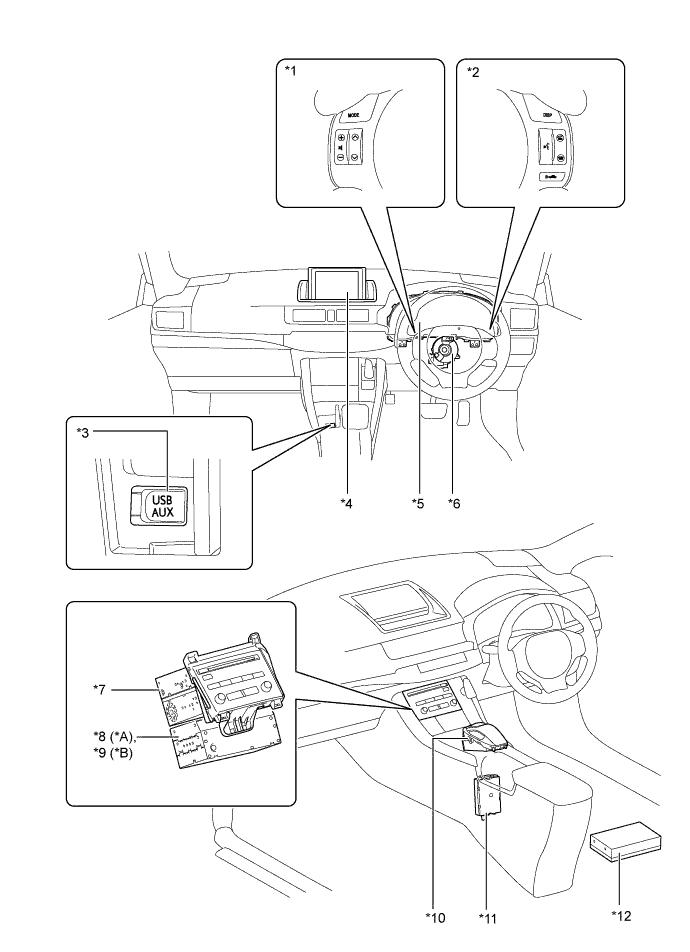

| *1 | Steering Pad Switch Assembly - Volume - Seek - Mode | *2 | Steering Pad Switch Assembly - Voice - Telephone |
| *3 | No.1 Stereo Jack Adapter Assembly | *4 | Multi Display |
| *5 | Combination Meter Assembly | *6 | Spiral with Sensor Cable Sub-assembly |
| *7 | Radio Receiver Assembly | *8 | Navigation Computer Sub-assembly |
| *9 | Display and Navigation Module Display | *10 | Remote Touch |
| *11 | Multimedia Interface ECU | *12 | Stereo Component Amplifier Assembly |
