NAVIGATION SYSTEM / MULTI INFORMATION SYSTEM > PARTS LOCATION |

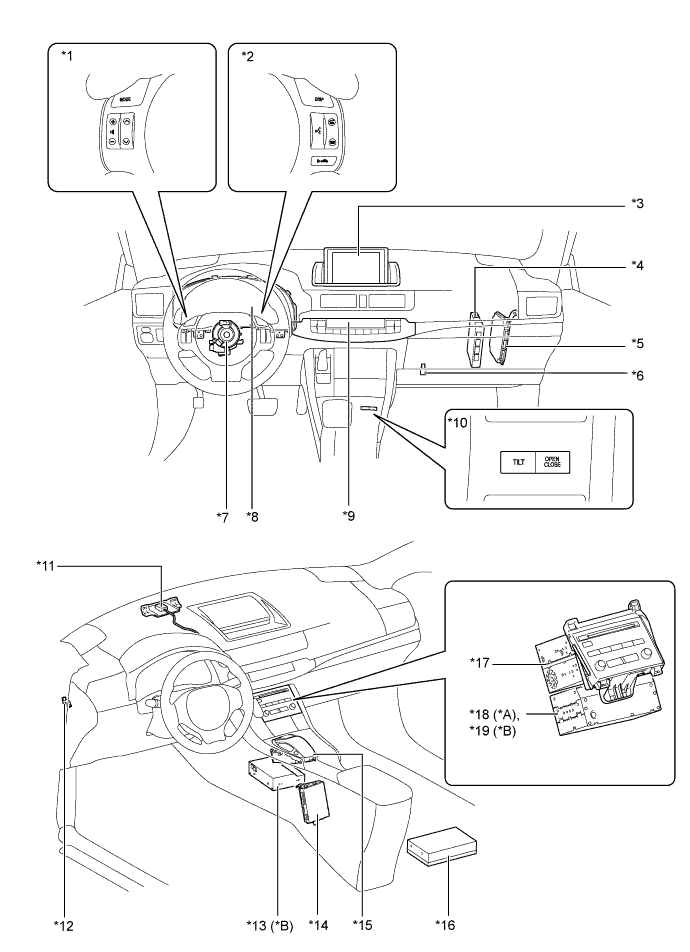

| *1 | Map Light Assembly - Telephone Microphone Assembly | *2 | Rear Television Camera Assembly |
| *A | Models with HDD Navigation System | *B | Models with DVD Navigation System |
| *1 | Steering Pad Switch Assembly - Volume - Seek - Mode | *2 | Steering Pad Switch Assembly - Voice - Telephone |
| *3 | Multi Display | *4 | Power Management Control ECU |
| *5 | Parking Assist ECU | *6 | Map Connector |
| *7 | Spiral with Sensor Cable Sub-assembly | *8 | Combination Meter Assembly |
| *9 | Air Conditioning Control Assembly - Center Cluster Module Circuit | *10 | Multi-display Switch - OPEN/CLOSE Switch - TILT Switch |
| *11 | GPS Antenna | *12 | Parking Brake Switch Assembly |
| *13 | Multi-media Module Navigation Assembly | *14 | Multi-media Interface ECU |
| *15 | Remote Touch | *16 | Stereo Component Amplifier Assembly |
| *17 | Radio Receiver Assembly | *18 | Navigation Computer Sub-assembly |
| *19 | Display and Navigation Module Display | - | - |

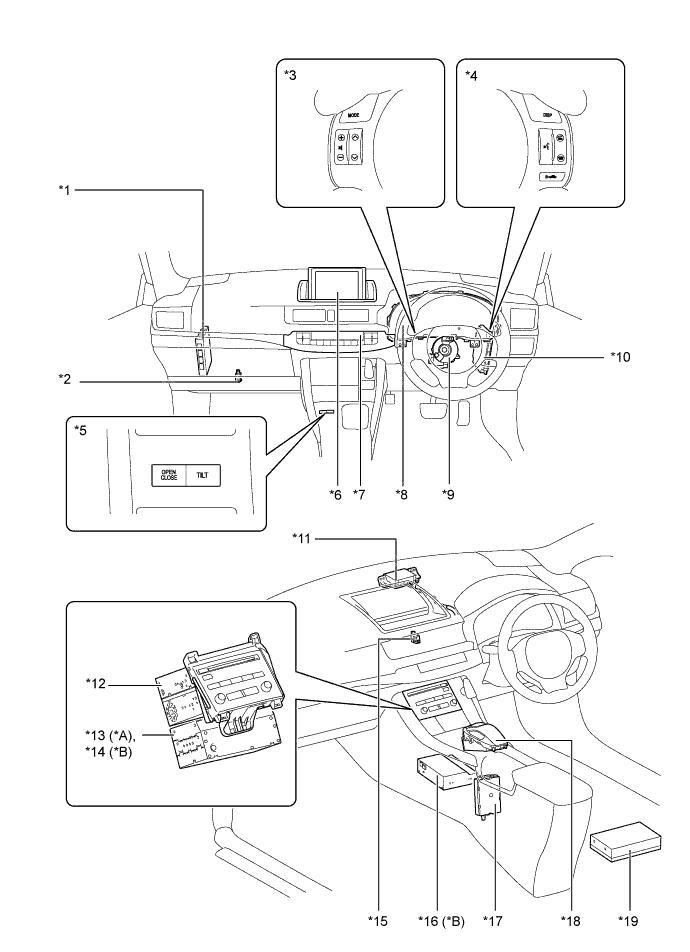

| *A | Models with HDD Navigation System | *B | Models with DVD Navigation System |
| *1 | Power Management Control ECU | *2 | Map Connector |
| *3 | Steering Pad Switch Assembly - Volume - Seek - Mode | *4 | Steering Pad Switch Assembly - Voice - Telephone |
| *5 | Multi Display Switch - OPEN/CLOSE Switch - TILT Switch | *6 | Multi Display |
| *7 | Air Conditioning Control Assembly - Center Cluster Module Circuit | *8 | Combination Meter Assembly |
| *9 | Spiral with Sensor Cable Sub-assembly | *10 | Parking Assist ECU |
| *11 | GPS Antenna | *12 | Radio Receiver Assembly |
| *13 | Navigation Computer Sub-assembly | *14 | Display and Navigation Module Display |
| *15 | Parking Brake Switch Assembly | *16 | Multi-media Module Navigation Assembly |
| *17 | Multi-media Interface ECU | *18 | Remote Touch |
| *19 | Stereo Component Amplifier Assembly | - | - |
