LEXUS PARKING ASSIST-SENSOR SYSTEM > PARTS LOCATION |
| *1 | Ultrasonic Sensor (Front Corner RH) | *2 | Ultrasonic Sensor (Front Corner LH) |
| *3 | Ultrasonic Sensor (Rear Corner LH) | *4 | Ultrasonic Sensor (Rear Center LH) |
| *5 | Ultrasonic Sensor (Rear Center RH) | *6 | Ultrasonic Sensor (Rear Corner RH) |
| *A | Models with Navigation System | *B | Models with HDD Navigation System |
| *C | Models with DVD Navigation System | - | - |

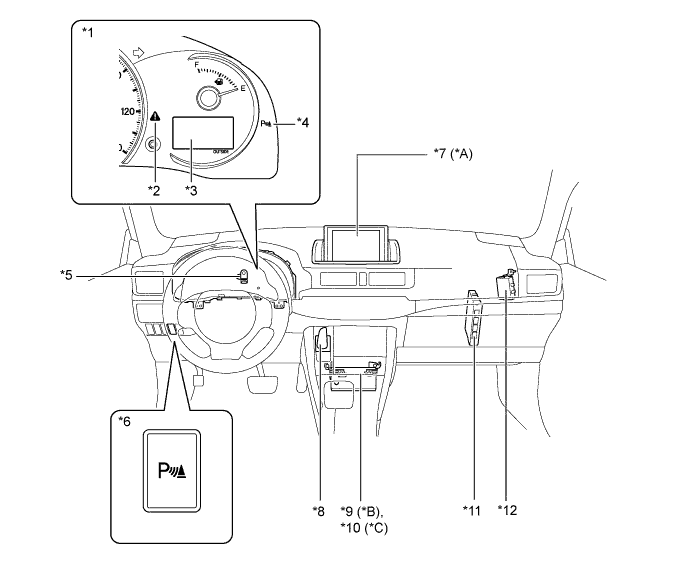

| *1 | Combination Meter Assembly | *2 | Master Warning Light |
| *3 | Multi-information Display | *4 | LEXUS Parking Assist-sensor System Indicator Light |
| *5 | Clearance Warning Buzzer | *6 | Clearance Warning Switch |
| *7 | Multi Display | *8 | Shift Lever Assembly - Shift Sensor - Select Sensor |
| *9 | Navigation Computer Sub-assembly | *10 | Display and Navigation Module Display |
| *11 | Power Management Control ECU | *12 | Clearance Warning ECU Assembly |
| *A | Models with Navigation System | *B | Models with HDD Navigation System |
| *C | Models with DVD Navigation System | - | - |

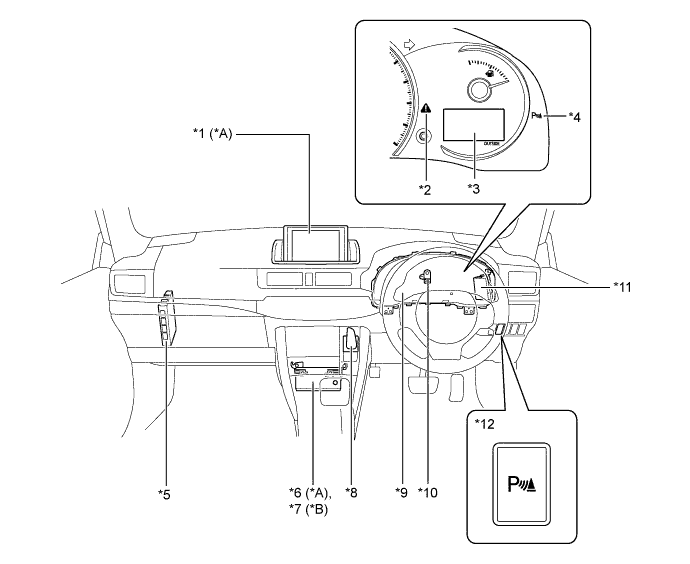

| *1 | Multi Display | *2 | Master Warning Light |
| *3 | Multi-information Display | *4 | LEXUS Parking Assist-sensor System Indicator Light |
| *5 | Power Management Control ECU | *6 | Navigation Computer Sub-assembly (Models with HDD Navigation System) |
| *7 | Display and Navigation Module Display (Models with DVD Navigation System) | *8 | Shift Lever Assembly - Shift Sensor - Select Sensor |
| *9 | Combination Meter Assembly | *10 | Clearance Warning Buzzer |
| *11 | Clearance Warning ECU Assembly | *12 | Clearance Warning Switch |
