PARKING ASSIST MONITOR SYSTEM > PARTS LOCATION |

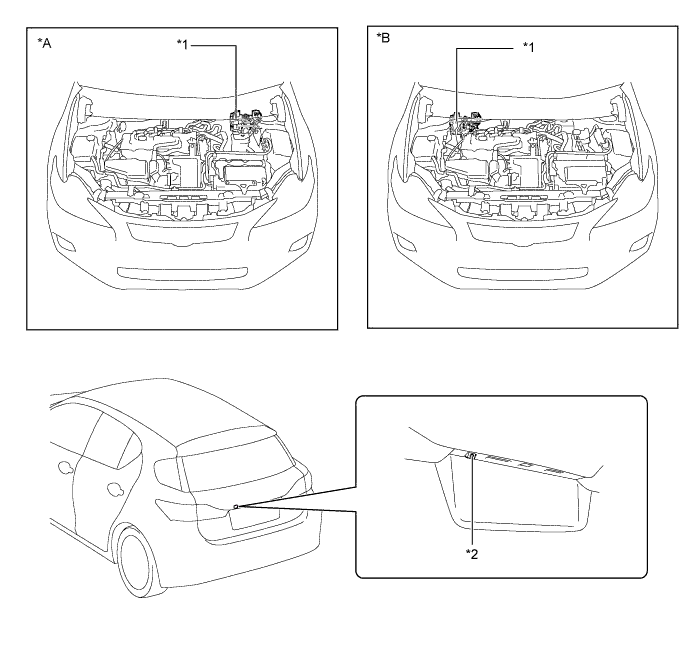

| *A | LHD Models | *B | RHD Models |
| *1 | Brake Booster with Master Cylinder - Skid Control ECU | *2 | Rear Television Camera Assembly |

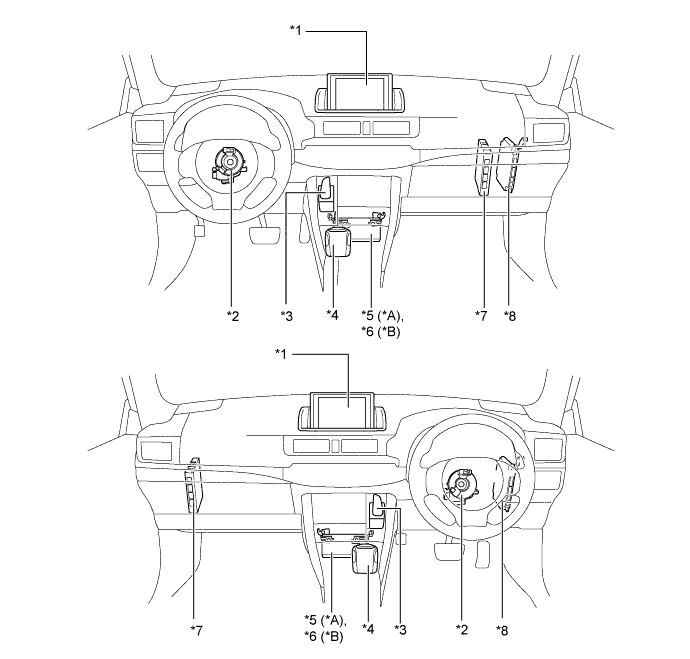

| *A | Models with HDD Navigation System | *B | Models with DVD Navigation System |
| *1 | Multi Display | *2 | Steering Angle Sensor |
| *3 | Shift Lever Assembly - Shift Sensor - Select Sensor | *4 | Remote Touch |
| *5 | Navigation Computer Sub-assembly | *6 | Display and Navigation Module Display |
| *7 | Power Management Control ECU | *8 | Parking Assist ECU |
