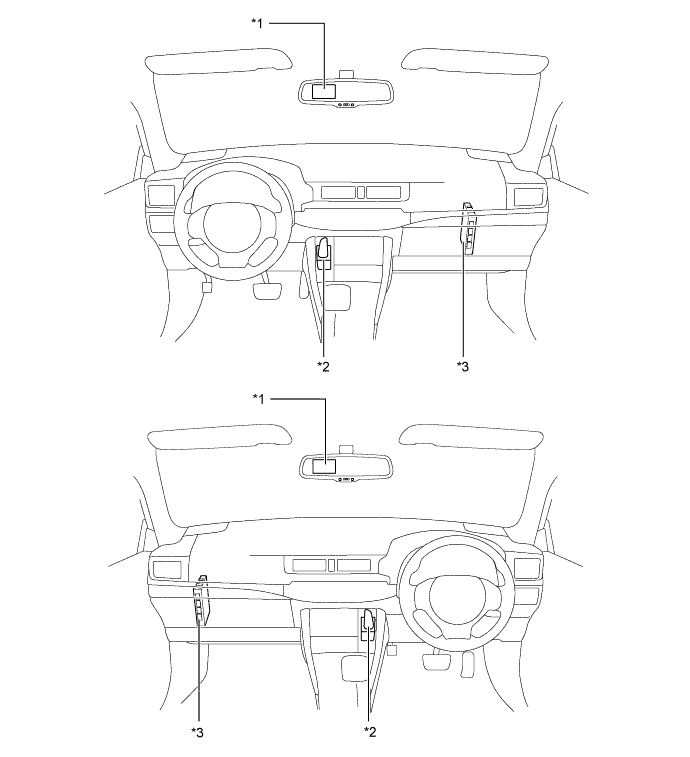

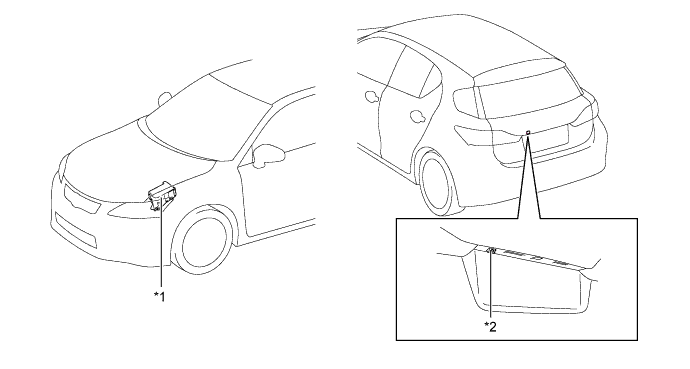

MONITOR SYSTEM > PARTS LOCATION |
| *1 | Engine Room Relay Block - Back-up Light Switch Assembly | *2 | Rear Television Camera Assembly |
| *1 | Inner Rear View Mirror Assembly | *2 | Shift Lever Assembly - Select Sensor - Shift Sensor |
| *3 | Power Management Control ECU | - | - |
