FRONT SUSPENSION SYSTEM > GENERAL |
| OUTLINE |
A MacPherson strut type independent suspension is used.
Suspension tower damper has been employed to absorb body vibration and flex.
Excellent driving stability and ride comfort are achieved by optimizing the suspension geometry.

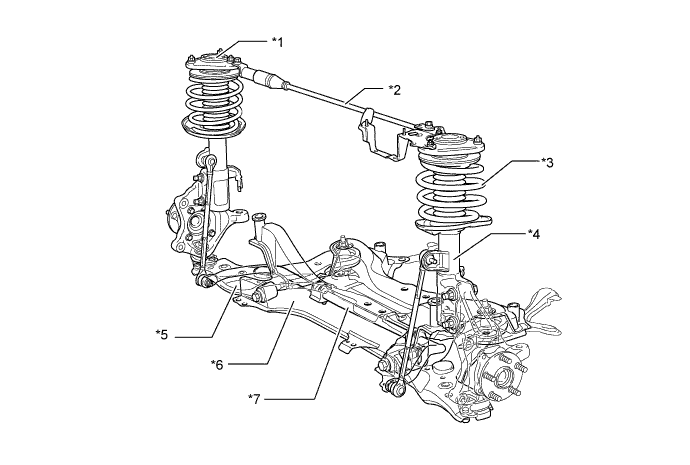

| *1 | Front Suspension Support Sub-assembly | *2 | Suspension Tower Damper |
| *3 | Front Coil Spring | *4 | Front Shock Absorber Assembly |
| *5 | Front Lower No. 1 Suspension Arm Sub-assembly | *6 | Suspension Member (Front Suspension Crossmember Sub-assembly) |
| *7 | Front Stabilizer Bar | - | - |
| SPECIFICATION |
| Tire Size | 195/65R15 | 205/55R16, 215/45R17 | ||
| Suspension Type | MacPherson Strut | |||
| Front Wheel Alignment (Unloaded Vehicle) | Tread | mm (in.) | 1535 (60.4) | 1525 (60.0) |
| Caster | 5°48' | 5°56', 5°48'* | ||
| Camber | -0°15' | -0°13', -0°14'* | ||
| Toe-in | mm (in.) | 2.0 (0.08) | 2.0 (0.08) | |
| King Pin Inclination | 12°22' | 12°11', 12°14'* | ||
| MAIN FEATURES |
Optimized Caster
Optimum caster angle and trail values are featured to provide straight-line stability during low-speed to high-speed ranges and assist steering response at high speeds.
| *a | Caster Angle | *b | Trail Value |
| *c | King Pin Axis | *d | Lower Ball Joint Fulcrum Point |
Optimized Camber
The front suspension uses negative camber to reduce the ground contact camber angle of the outer wheel at the time of turning (cornering) which is caused when the vehicle posture changes during cornering, thus realizing excellent cornering performance.
| *a | Straight-line | *b | Cornering |
| *c | Negative Camber | - | - |
Optimized King Pin Offset
A small king pin offset is used and the moment which occurs around the king pin axis is made small in order to achieve excellent vehicle stability during braking. When force is applied to the wheel during braking etc., force is applied at the tire center ground contact point and the king pin offset. The power of force multiplied by king pin offset tries to turn the king pin axis. In this way, making the king pin offset smaller produces a smaller moment at the king pin axis, providing excellent vehicle stability during braking.
| *a | Rear View | *b | Upper View |
| *c | King Pin Axis | *d | Tire Contact Center |
| *e | Tire Center Ground Contact Point | *f | King Pin Offset |
 | Force | - | - |
Suspension Tower Damper Effectiveness
The suspension tower damper absorbs body vibration and flex, reducing vibration levels over a wide range of frequencies in order to provide greater handling stability and realize a more comfortable ride.
| *1 | Suspension Tower Damper | - | - |
| External Input |  | Damping Effect |
