REAR SUSPENSION SYSTEM > GENERAL



OUTLINE

  1. A trailing arm type double wishbone independent suspension is used.

  2. Suspension tower damper has been employed to absorb body vibration and flex.



  3. The rear suspension realizes excellent stability and controllability by optimizing the suspension geometry and the allocation of components.

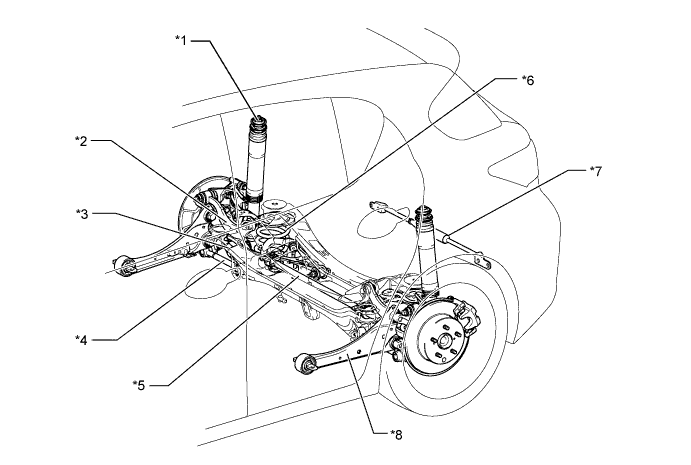

    X104922E01


    Text in Illustration
    *1
    		Rear Shock Absorber Assembly
    		*2
    		Upper Control Arm Assembly
    *3
    		Rear Suspension Arm Assembly No. 2
    		*4
    		Rear Suspension Arm Assembly No. 1
    *5
    		Rear Stabilizer Bar
    		*6
    		Rear Coil Spring
    *7
    		Suspension Tower Dumper Assembly
    		*8
    		Trailing Arm Assembly


SPECIFICATION

Tire Size
195/65R15
205/55R16, 215/45R17
Rear Suspension Type
Double Wishbone
Rear Wheel Alignment
(Unloaded Vehicle)
Tread
mm (in.)
1530 (60.2)
1520 (59.8)
Camber
- 1° 00'
Toe-in
mm (in.)
2.0 (0.08)

MAIN FEATURES


  1. Suspension Tower Damper Effectiveness



    1. The suspension tower damper absorbs body vibration and flex, reducing vibration levels over a wide range of frequencies in order to provide greater handling stability and realize a more comfortable ride.


      X104923E01


      Text in Illustration
      *1
      		Suspension Tower Damper
      		-
      		-
      V100135
      		External Input
      		V100136
      		Damping Effect
