TIRE AND WHEEL TYPE SYSTEM > GENERAL



OUTLINE

  1. 3 sizes of tires and wheels are available.

  2. A tire repair kit is available. This kit feeds repair sealant and air together into a punctured tire.


SPECIFICATION

  1. Tire and wheel

    Grade
    		Eco
    Tire Size
    		195/65R15
    Wheel
    		Size
    		15 x 5 1/2J
    Pitch Circle Diameter
    		mm (in.)
    		100 (3.9)
    Inset
    		mm (in.)
    		40 (1.6)
    Material
    		Aluminum
    Color Name
    		Dark Silver Metallic (Wheel)
    Silver Metallic + Dark Silver Metallic (Wheel Cap)
    Wheel Cap
    		Full Wheel Cap
    Wheel Design / Wheel Cap Design
    		X104904
    Grade
    		Base
    Tire Size
    		205/55R16
    		215/45R17
    Wheel
    		Size
    		16 x 6J
    		17 x 7J
    Pitch Circle Diameter
    		mm (in.)
    		100 (3.9)
    		100 (3.9)
    Inset
    		mm (in.)
    		45 (1.8)
    		45 (1.8)
    Material
    		Aluminum
    		Aluminum
    Color Name
    		Silver Metallic/
    Dark Gray Metallic*
    		Silver Metallic/
    Dark Gray Metallic*
    Wheel Cap
    		Center Ornament
    		Center Ornament
    Wheel Design / Wheel Cap Design
    		X104905
    		X104906
    *: F SPORT

  2. Tire Repair Set

    Item
    		Specification
    Usable Temperature Range
    		°C (°F)
    		-30 to 60 (22 to 140)
    Maximum Current Consumption
    		A
    		10
    Sealant
    		Repair Seal Liquid Material
    		Synthetic Rubber Latex, Propylene Glycol, Distilled Water
    Quantity
    		ml (US qts, Imp. qts)
    		615 to 620 (0.65 to 0.66, 0.54 to 0.55)
    Expiration Date
    		Displayed on Sealant Bottle


MAIN FEATURES

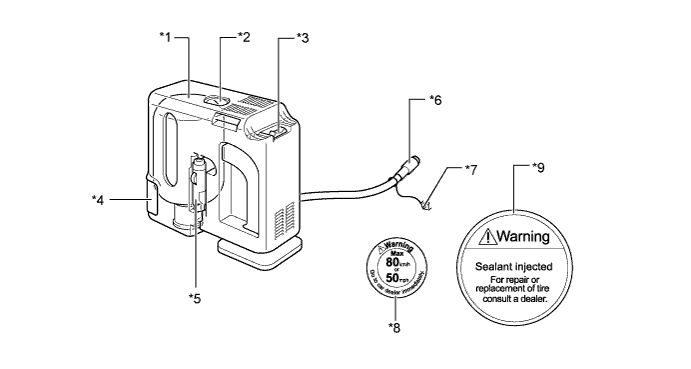

  1. Tire Repair Set



    1. The tire repair set can be used in an emergency to repair a tire that has had its tread punctured by a nail, screw etc.


      X101170E03


      Text in Illustration
      *1
      		Repair Sealant Bottle
      		*2
      		Air Pressure Gauge
      *3
      		Air Compressor Switch
      		*4
      		Insert Key
      *5
      		Power Plug
      		*6
      		Hose
      *7
      		Air Release Cap
      		*8
      		Speed Restriction Sticker
      *9
      		Sealant Applied Sticker
      		-
      		-
