POWER STEERING SYSTEM > PARTS LOCATION |

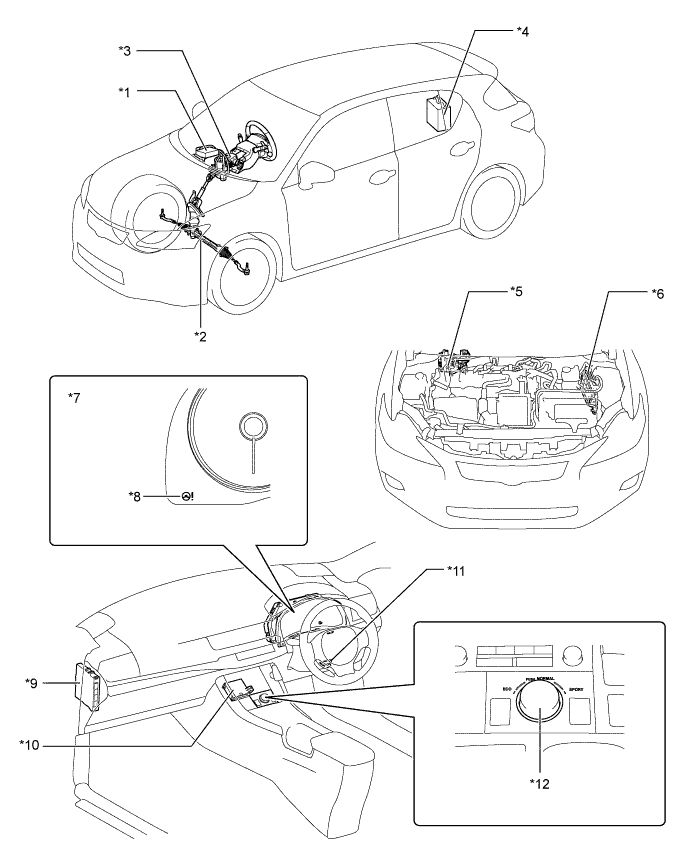

| *1 | Power Steering ECU Assembly | *2 | Steering Gear Assembly |
| *3 | Steering Column Assembly - Power Steering Motor - Torque Sensor - Rotation Angle Sensor | *4 | Auxiliary Battery |
| *5 | Brake Booster with Master Cylinder Assembly - Skid Control ECU | *6 | ECM |
| *7 | Combination Meter Assembly | *8 | EPS Warning Light |
| *9 | DLC3 | *10 | Air Conditioning Amplifier Assembly |
| *11 | Power Management Control ECU | *12 | Drive Mode Select - SPORT Mode Switch |

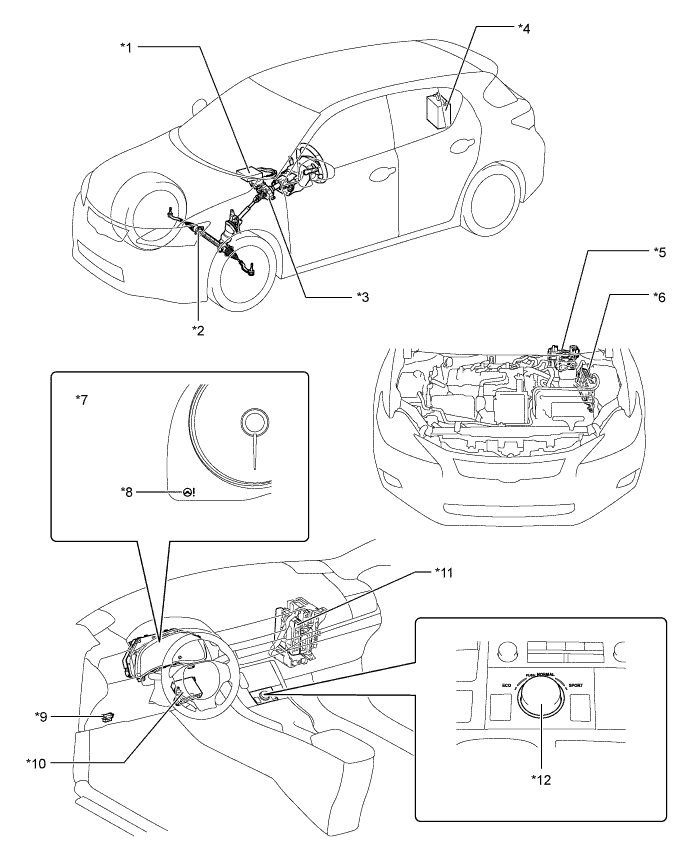

| *1 | Power Steering ECU Assembly | *2 | Steering Gear Assembly |
| *3 | Steering Column Assembly - Power Steering Motor - Torque Sensor - Rotation Angle Sensor | *4 | Auxiliary Battery |
| *5 | Brake Booster with Master Cylinder Assembly - Skid Control ECU | *6 | ECM |
| *7 | Combination Meter Assembly | *8 | EPS Warning Light |
| *9 | Power Management Control ECU | *10 | Air Conditioning Amplifier Assembly |
| *11 | DLC3 | *12 | Drive Mode Select - SPORT Mode Switch |
