FEATURES > PERFORMANCE



OUTLINE


  1. LEXUS Hybrid Drive



    1. LEXUS Hybrid Drive optimally performs cooperative control of the 2ZR-FXE engine, and Motor Generator 1 (MG1) and Motor Generator 2 (MG2) in the P410 hybrid vehicle transaxle assembly that provides excellent transmission performance. Furthermore, this system uses a high-output HV battery with a nominal voltage of DC 201.6 V, and a variable-voltage system in which a boost converter boosts the operating voltage of the system to a maximum voltage of DC 650 V.

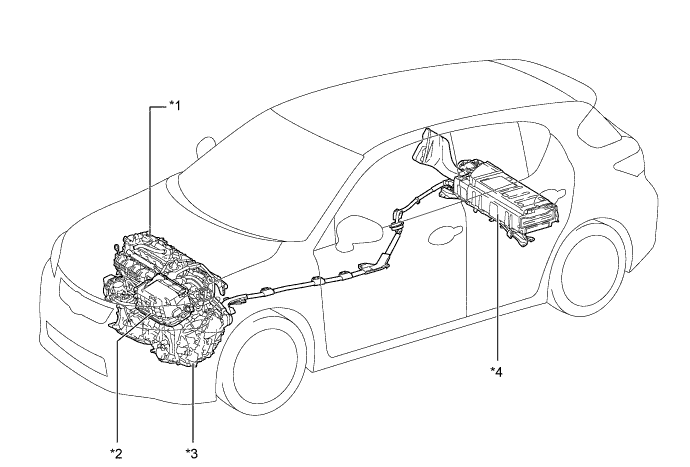

      V101168E01


      Text in Illustration
      *1
      		2ZR-FXE Engine
      		*2
      		Inverter with Converter Assembly
      *3
      		P410 Hybrid Vehicle Transaxle Assembly
      		*4
      		HV Battery Assembly

      System Performance
      Maximum System Output*
      		kW
      		100
      *: Maximum system output is engine output and MG2 output controlled by LEXUS Hybrid Drive. MG2 output depends on power supplied by the HV battery.

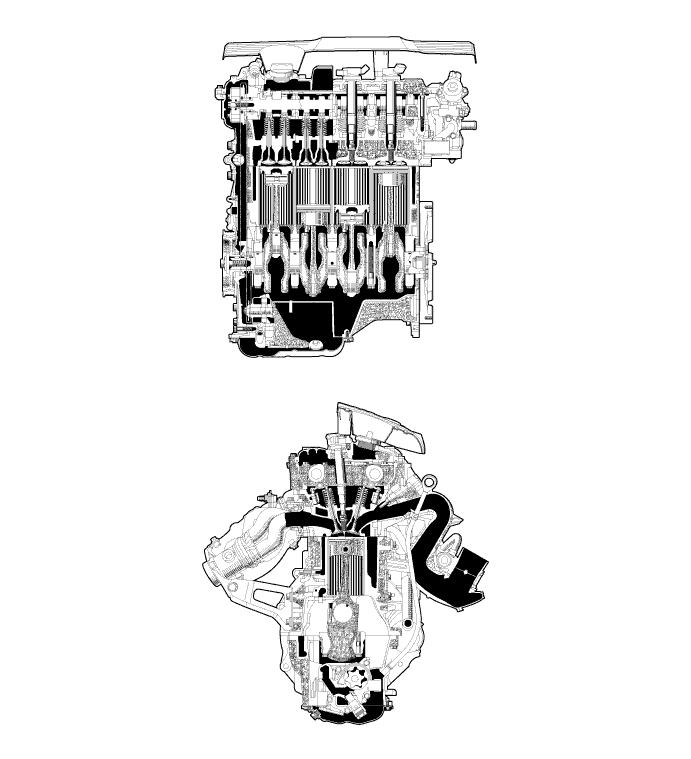

  2. 2ZR-FXE Engine

    1. The 2ZR-FXE is an in-line 4-cylinder, 1.8-liters, 16-valve DOHC engine.



    2. This engine uses a high-expansion ratio Atkinson cycle, Variable Valve Timing-intelligent (VVT-i) system, Electric Throttle Control System-intelligent (ETCS-i) and Exhaust Gas Recirculation (EGR) system employing a highly efficient EGR cooler. In addition, use of an electric engine water pump assembly has eliminated the V-ribbed belt. Thus, improved engine performance, quietness, fuel economy, and cleaner emissions have been achieved.


      V100288


      Item
      		Specification
      No. of Cyls. & Arrangement
      		4-cylinder, In-line
      Valve Mechanism
      		16-valve DOHC, Chain Drive
      Fuel System
      		SFI
      Displacement
      		cm3 (cu. in.)
      		1798 (109.7)
      Max. Output (EEC)
      		kW@rpm
      		73@5200
      Max. Torque (EEC)
      		N*m@rpm
      		142@2800 to 4400

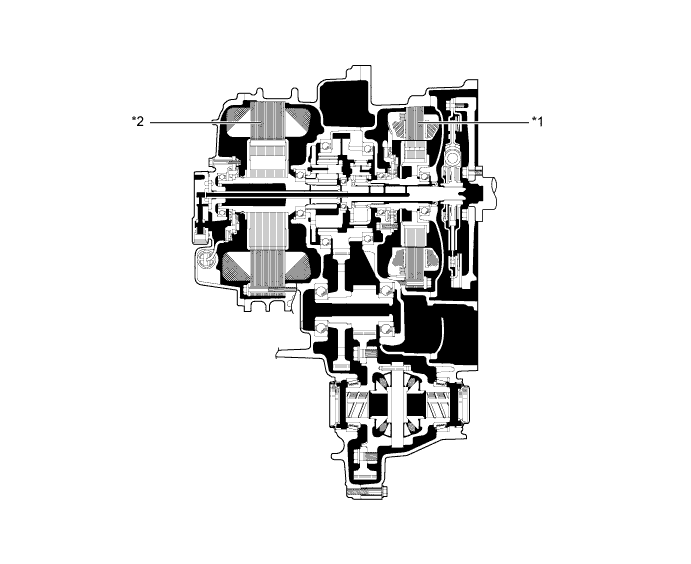

  3. P410 Hybrid Vehicle Transaxle Assembly



    1. The P410 hybrid vehicle transaxle assembly contains Motor Generator 1 (MG1) and Motor Generator 2 (MG2).


      V100289E01


      Text in Illustration
      *1
      		Motor Generator 1 (MG1)
      		*2
      		Motor Generator 2 (MG2)

      Item
      		Specification
      Motor Generator 1 (MG1)
      		Motor Generator 2 (MG2)
      Type
      		Permanent Magnet Motor
      		Permanent Magnet Motor
      Function
      		Generate, Engine Starter
      		Generate, Drive Wheels
      Cooling System
      		Water-cooled
      		Air-cooled
      Maximum Output
      		kW
      		-
      		60
      Maximum Torque
      		N*m
      		-
      		207

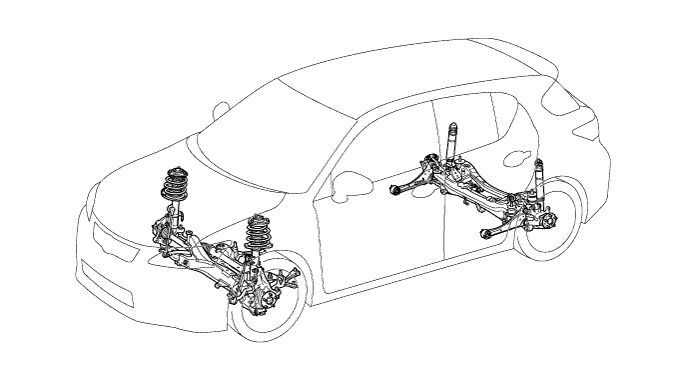

  4. Suspension

    1. A MacPherson strut type independent suspension is used for the front.



    2. A double wishbone type independent suspension is used for the rear.


      V101170

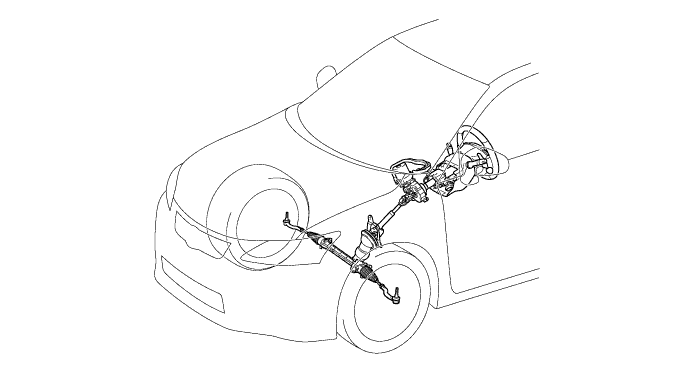

  5. Steering



    1. An Electric Power Steering (EPS) system is used.


      V101169

  6. Brake

    Item
    		Specification
    Front Brake
    		Type
    		Ventilated Disc
    Rotor Size (D x T)*1
    		mm (in.)
    		255 x 25 (10.04 x 0.98)
    Rear Brake
    		Type
    		Solid Disc
    Rotor Size (D x T)*1
    		mm (in.)
    		259 x 9 (10.20 x 0.35 )*2
    279 x 10 (10.98 x 0.39)*3
    Brake Control System
    		ABS with EBD, Brake Assist, TRC, VSC+, Hill-start Assist Control
    *1: Diameter x Thickness
    *2: Eco grade models
    *3: Except Eco grade models
