PRE-CRASH SAFETY SYSTEM > PARTS LOCATION |

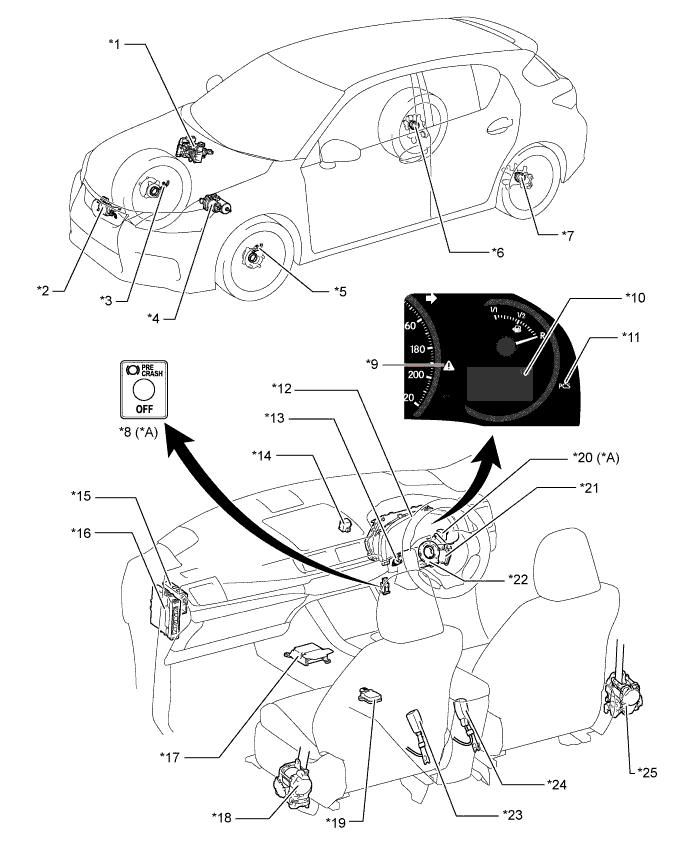

| *A | Models with Pre-crash Brake | - | - |
| *1 | Brake Booster with Master Cylinder - Skid Control ECU - Brake Actuator | *2 | Millimeter Wave Radar Sensor |
| *3 | Front Speed Sensor RH | *4 | Brake Booster Pump Assembly |
| *5 | Front Speed Sensor LH | *6 | Rear Speed Sensor RH |
| *7 | Rear Speed Sensor LH | *8 | Master Warning Light |
| *9 | Multi-information Display | *10 | PCS Warning Light |
| *11 | Combination Meter Assembly | *12 | Skid Control Buzzer Assembly |
| *13 | Stop Light Control Relay | *14 | Stop Light Switch Assembly |
| *15 | Pre-crash Brake Cancel Switch | *16 | Spiral with Sensor Cable Sub-assembly (Steering Angle Sensor) |
| *17 | Airbag Sensor Assembly | *18 | Front Seat Outer Belt Assembly (for Driver Side) |
| *19 | Yawrate Sensor | *20 | Seat Belt Control ECU |
| *21 | Driving Support ECU Assembly | *22 | Power Management Control ECU |
| *23 | Front Seat Inner Belt Assembly (for Driver Side) | *24 | Front Seat Inner Belt Assembly (for Passenger Side) |
| *25 | Front Seat Outer Belt Assembly (for Passenger Side) | - | - |
| *A | Models with Pre-crash Brake | - | - |
| *1 | Brake Booster with Master Cylinder - Skid Control ECU - Brake Actuator | *2 | Millimeter Wave Radar Sensor |
| *3 | Front Speed Sensor RH | *4 | Brake Booster Pump Assembly |
| *5 | Front Speed Sensor LH | *6 | Rear Speed Sensor RH |
| *7 | Rear Speed Sensor LH | *8 | Pre-crash Brake Cancel Switch |
| *9 | Master Warning Light | *10 | Multi-information Display |
| *11 | PCS Warning Light | *12 | Combination Meter Assembly |
| *13 | Stop Light Switch Assembly | *14 | Skid Control Buzzer Assembly |
| *15 | Seat Belt Control ECU | *16 | Power Management Control ECU |
| *17 | Airbag Sensor Assembly | *18 | Front Seat Outer Belt Assembly (for Passenger Side) |
| *19 | Yawrate Sensor | *20 | Stop Light Control Relay |
| *21 | Driving Support ECU Assembly | *22 | Steering Angle Sensor |
| *23 | Front Seat Inner Belt Assembly (for Passenger Side) | *24 | Front Seat Inner Belt Assembly (for Driver Side) |
| *25 | Front Seat Outer Belt Assembly (for Driver Side)) | - | - |
