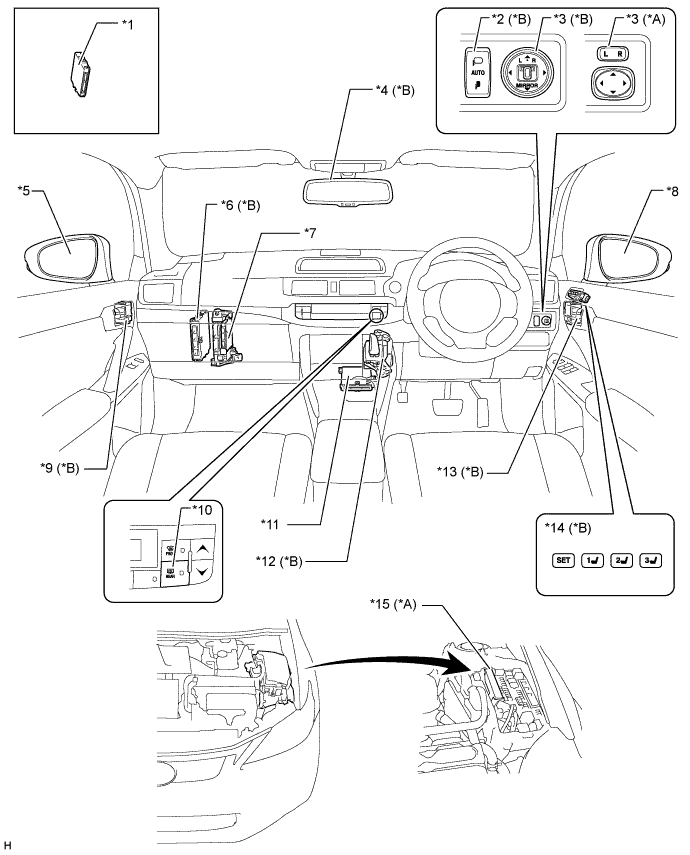

MIRROR SYSTEM > PARTS LOCATION |
| *A | Models without Memory Function | *B | Models with Memory Function |
| *1 | Outer Mirror Switch Assembly | *2 | Retractable Outer Mirror Switch |
| *3 | Certification ECU (Smart Key ECU Assembly)* | *4 | Inner Rear View Mirror Assembly - Surrounding Light Detection Sensor - Rear Light Detection Sensor - AUTO Switch |
| *5 | Outer Rear View Mirror Assembly LH - Retract Motor (Models with Memory Function) - Mirror Adjustment Motor - Mirror Position Sensor (Models with Memory Function) - Mirror Heater - Foot Light - EC Mirror Cell (Models with Memory Function) | *6 | Seat Memory Switch |
| *7 | Outer Mirror Control ECU LH | *8 | Main Body ECU (Multiplex Network Body ECU) |
| *9 | Shift Lever Assembly - Shift Lever Position Sensor (Shift/Select) | *10 | Power Management Control ECU |
| *11 | Outer Rear View Mirror Assembly RH - Retract Motor (Models with Memory Function) - Mirror Adjustment Motor - Mirror Position Sensor (Models with Memory Function) - Mirror Heater - Foot Light - EC Mirror Cell (Models with Memory Function) | *12 | Air Conditioning Amplifier Assembly |
| *13 | Outer Mirror Control ECU RH | *14 | Rear Defogger Switch |
| *15 | No. 1 Integration Relay | - | - |

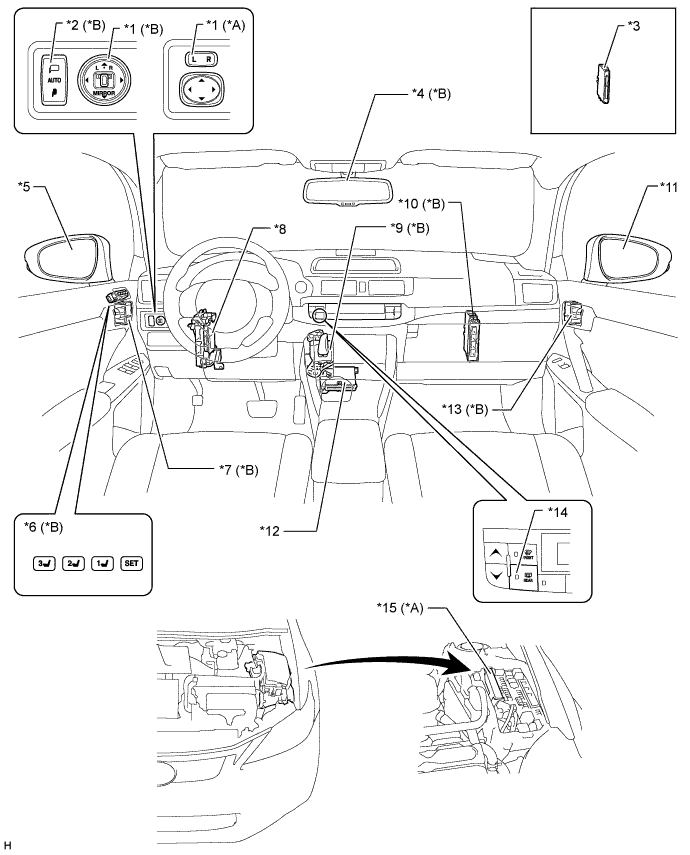

| *A | Models without Memory Function | *B | Models with Memory Function |
| *1 | Certification ECU (Smart Key ECU Assembly)* | *2 | Retractable Outer Mirror Switch |
| *3 | Outer Mirror Switch Assembly | *4 | Inner Rear View Mirror Assembly - Surrounding Light Detection Sensor - Rear Light Detection Sensor - AUTO Switch |
| *5 | Outer Rear View Mirror Assembly LH - Retract Motor (Models with Memory Function) - Mirror Adjustment Motor - Mirror Position Sensor (Models with Memory Function) - Mirror Heater - Foot Light - EC Mirror Cell (Models with Memory Function) | *6 | Power Management Control ECU |
| *7 | Main Body ECU (Multiplex Network Body ECU) | *8 | Outer Rear View Mirror Assembly RH - Retract Motor (Models with Memory Function) - Mirror Adjustment Motor - Mirror Position Sensor (Models with Memory Function) - Mirror Heater - Foot Light - EC Mirror Cell (Models with Memory Function) |
| *9 | Outer Mirror Control ECU LH | *10 | Rear Defogger Switch |
| *11 | Air Conditioning Amplifier Assembly | *12 | Shift Lever Assembly - Shift Lever Position Sensor (Shift/Select) |
| *13 | Outer Mirror Control ECU RH | *14 | Seat Memory Switch |
| *15 | No. 1 Integration Relay | - | - |
