AIRBAG SYSTEM > PARTS LOCATION |

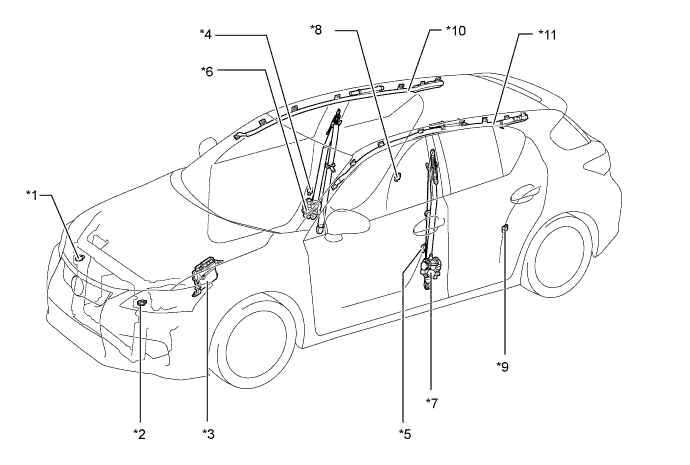

| *1 | Front Airbag Sensor RH | *2 | Front Airbag Sensor LH |
| *3 | ECM | *4 | Side Airbag Sensor RH |
| *5 | Side Airbag Sensor LH | *6 | Front Seat Outer Belt Assembly RH |
| *7 | Front Seat Outer Belt Assembly LH | *8 | No. 2 Side Airbag Sensor RH |
| *9 | No. 2 Side Airbag Sensor LH | *10 | Curtain Shield Airbag Assembly RH |
| *11 | Curtain Shield Airbag Assembly LH | - | - |
| *A | Models without Power Seat | *B | Models with Power Seat |
| *C | Models with Airbag Cut Off Switch | - | - |

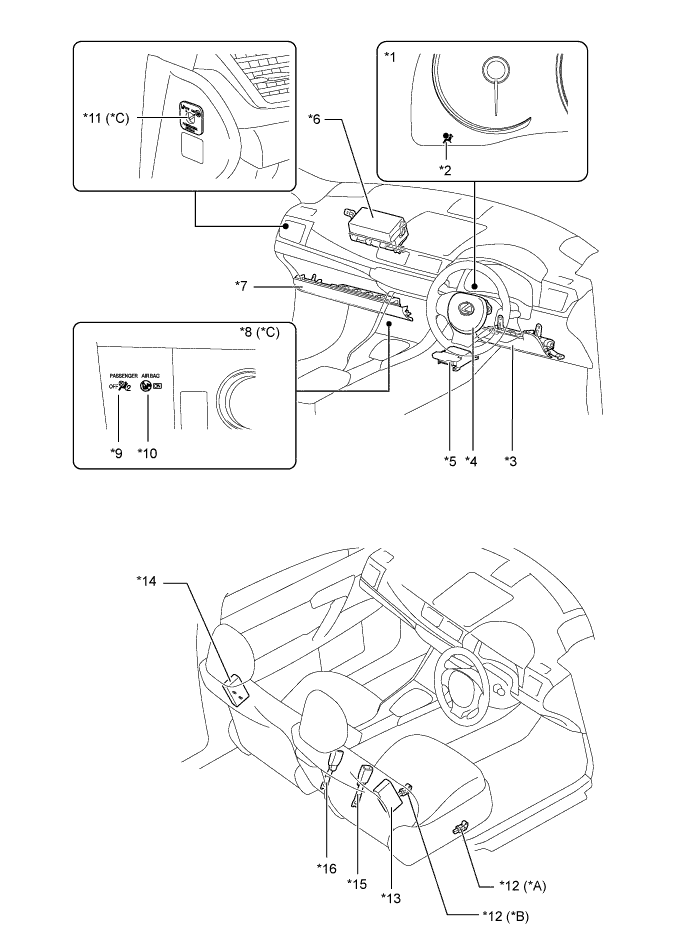

| *1 | Combination Meter Assembly | *2 | SRS Warning Light |
| *3 | Instrument Panel Airbag Assembly Lower No. 1 - Driver Knee Airbag | *4 | Horn Button Assembly - Driver Airbag |
| *5 | Airbag Sensor Assembly | *6 | Instrument Panel Passenger Airbag Assembly - Front Passenger Airbag |
| *7 | Instrument Panel Airbag Assembly Lower No. 2 - Front Passenger Knee Airbag | *8 | Combination Switch Assembly |
| *9 | AIRBAG OFF Indicator Light | *10 | AIRBAG ON Indicator Light |
| *11 | Airbag Cut Off Switch Cylinder Sub-assembly | *12 | Seat Position Airbag Sensor |
| *13 | Front Seat Airbag Assembly LH - Front Side Airbag | *14 | Front Seat Airbag Assembly RH - Front Side Airbag |
| *15 | Front Seat Inner Belt Assembly LH - Driver Seat Belt Buckle Switch | *16 | Front Seat Inner Belt Assembly RH - Front Passenger Seat Belt Buckle Switch |
| *A | Models without Power Seat | *B | Models with Power Seat |
| *C | Models with Airbag Cut Off Switch | - | - |

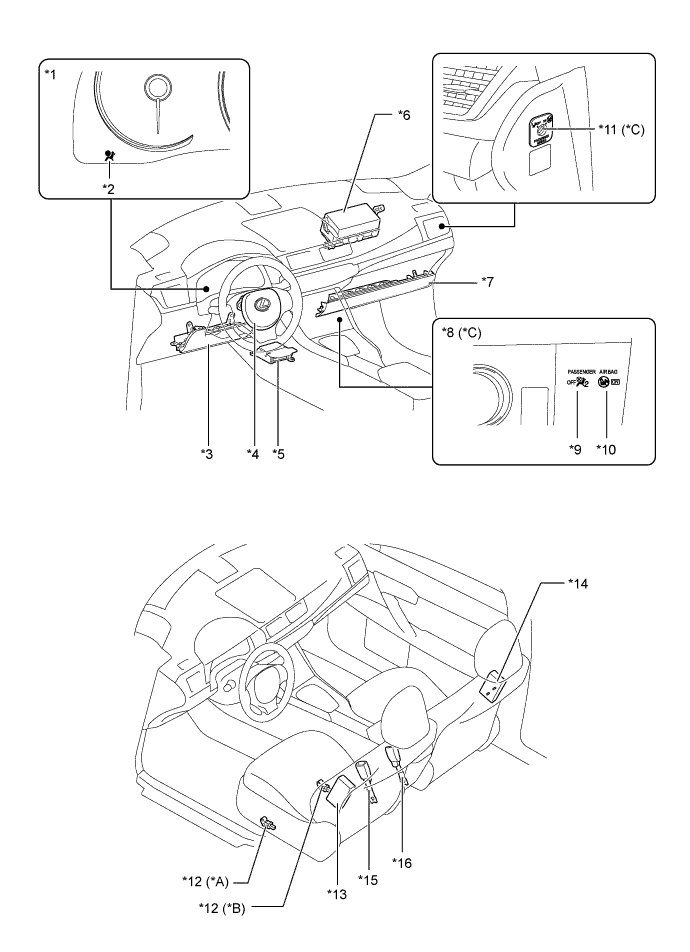

| *1 | Combination Meter Assembly | *2 | SRS Warning Light |
| *3 | Instrument Panel Airbag Assembly Lower No. 1 - Driver Knee Airbag | *4 | Horn Button Assembly - Driver Airbag |
| *5 | Airbag Sensor Assembly | *6 | Instrument Panel Passenger Airbag Assembly - Front Passenger Airbag |
| *7 | Instrument Panel Airbag Assembly Lower No. 2 - Front Passenger Knee Airbag | *8 | Combination Switch Assembly |
| *9 | AIRBAG OFF Indicator Light | *10 | AIRBAG ON Indicator Light |
| *11 | Airbag Cut Off Switch Cylinder Sub-assembly | *12 | Seat Position Airbag Sensor |
| *13 | Front Seat Airbag Assembly RH - Front Side Airbag | *14 | Front Seat Airbag Assembly LH - Front Side Airbag |
| *15 | Front Seat Inner Belt Assembly RH - Driver Seat Belt Buckle Switch | *16 | Front Seat Inner Belt Assembly LH - Front Passenger Seat Belt Buckle Switch |
