LIGHTING SYSTEM > GENERAL



OUTLINE

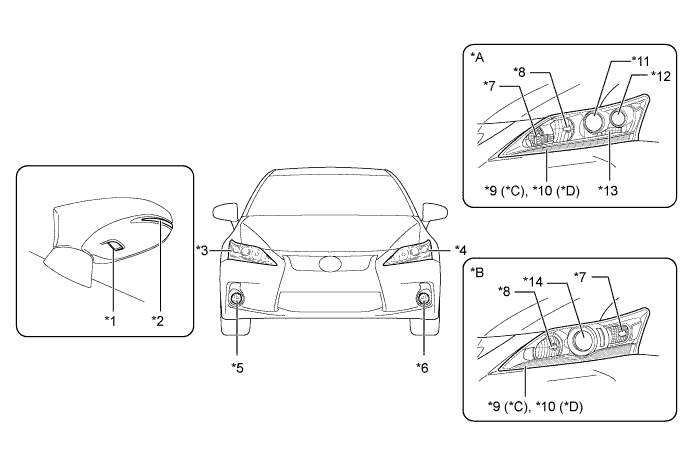

  1. Exterior Light



    1. The exterior lights consist of the following:


      Y109186E02


      Text in Illustration
      *A
      		Models with Light Emitting Diode (LED) Headlight
      		*B
      		Models with Halogen Headlight
      *C
      		Models with Daytime Running Light
      		*D
      		Models without Daytime Running Light
      *1
      		Foot Light
      		*2
      		Side Turn Signal Light
      *3
      		Headlight Unit RH
      		*4
      		Headlight Unit LH
      *5
      		Front Fog Light RH
      		*6
      		Front Fog Light LH
      *7
      		Front Turn Signal Light
      		*8
      		High Beam
      *9
      		Daytime Running Light
      		*10
      		Position Light
      *11
      		Low Beam (Concentrated Beam)
      		*12
      		Low Beam (Diffused Beam)
      *13
      		Low Beam (Widely Diffused Beam)
      		*14
      		Low Beam

      Y109188E01

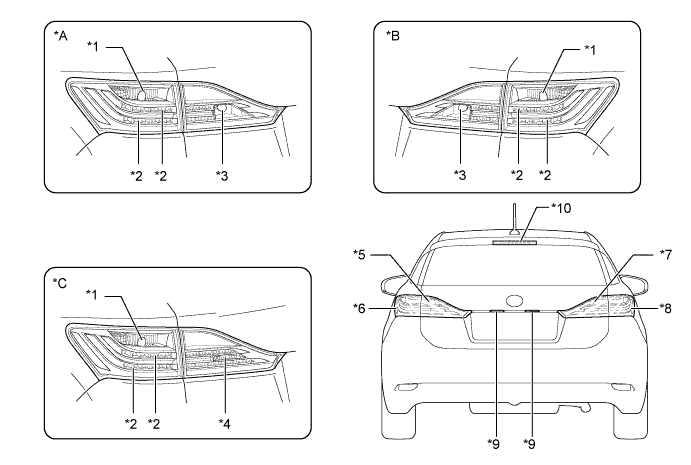

      Text in Illustration
      *A
      		LHD Models with Rear Fog Light
      		*B
      		RHD Models with Rear Fog Light
      *C
      		Models without Rear Fog Light
      		-
      		-
      *1
      		Turn Signal Light
      		*2
      		Taillight and Stop Light
      *3
      		Rear Fog Light
      		*4
      		Back-up Light
      *5
      		Rear Light Assembly LH
      		*6
      		Rear Combination Light Assembly LH
      *7
      		Rear Light Assembly RH
      		*8
      		Rear Combination Light Assembly RH
      *9
      		License Plate Light
      		*10
      		High Mounted Stop Light

  2. Daytime Running Light System

    1. The daytime running light system is designed to automatically illuminate the daytime running lights, during the daytime to keep the vehicle highly visible to other vehicles.

  3. Light Emitting Diode (LED) Headlight System

    1. An LED headlight system, capable of instant illumination and of ensuring a long service life, is used for the low beam headlights.

  4. Light Emitting Diode (LED) Daytime Running Light/Position Light

    1. An LED light, capable of instant illumination and of ensuring a long service life, is used for the daytime running lights/position lights.

  5. Automatic Headlight Beam Level Control System (Models with LED Headlight System)

    1. When the headlights are on, the automatic headlight beam level control system operates the headlight level motors in accordance with movement of the vehicle.

  6. Manual Headlight Beam Level Control System

    1. When the vehicle posture changes in accordance with the number (weight) of passengers and volume of luggage, this system makes it possible to adjust the low beam level (5-steps) manually to the appropriate level. The low beam level is adjusted using the headlight leveling switch.

  7. Automatic Light Control System

    1. When the dimmer switch is in the AUTO position, the light control sensor detects the ambient light level and automatically turns the headlights, taillights, position lights and license plate lights on or off accordingly.

    2. This system is controlled by the main body ECU (multiplex network body ECU).

  8. Light Auto Turn-off System

    1. The light auto turn-off system is used to prevent the driver from leaving the vehicle with the headlights, front fog lights, parking lights, taillights, rear fog light or license plate lights on.

  9. Door Mirror Foot Light System

    1. The door mirror foot light system operates the door mirror lights to ensure visibility when approaching or leaving the vehicle at night.


SPECIFICATION
*: Destination package for Chile

Light
Type
Wattage
Headlight Assembly
Halogen Headlight
High Beams
Halogen Bulb
60
Low Beams
Halogen Bulb
55
Daytime Running Lights/Position Lights
LED x 9
10/0.5, 0.6*
Front Turn Signal Lights
Bulb
28
LED Headlight
High Beams
Halogen Bulb
60
Low Beams
LED x 3
30.4
Daytime Running Lights/Position Lights
LED x 9
10/0.5, 0.6*
Front Turn Signal Lights
Bulb
28
Front Fog Lights
Halogen Bulb
55
Outside Rear View Mirror Assembly
Side Turn Signal Lights
LED x 4
0.3
Rear Combination Light Assembly
Turn Signal Lights
Bulb
21
Taillights and Stop Lights
LED x 12
0.2/3.9
Rear Light Assembly
Back-up Lights
Bulb
16
Rear Fog Light
Bulb
21
High Mounted Stop Light (Center Stop Light Assembly)
LED x 9
0.6
License Plate Lights
Bulb
5

MAIN FEATURES


  1. Light Emitting Diode (LED) Light



    1. Compared to halogen light, even if an LED light is used for a long time, the reduction of brightness over its lifetime is less. In addition, there is no possibility of an LED having an open circuit because of vibration. Together, these attributes realize maintenance-free lighting.


      Y109326E01



  2. Light Emitting Diode (LED) Headlight



    1. The LED headlight system consists of lights that have different roles. These are to provide the concentrated beam pattern, diffused beam pattern and widely diffused beam pattern, providing even illumination for the driver.


      Y109694E01


      Text in Illustration
      *1
      		LED Headlight for Concentrated Beam Pattern
      		*2
      		LED Headlight for Diffused Beam Pattern
      *3
      		LED Headlight for Widely Diffused Beam Pattern
      		-
      		-
      *a
      		Headlight Beam Pattern Displayed on a Screen
      		-
      		-
