LIGHTING SYSTEM > PARTS LOCATION |

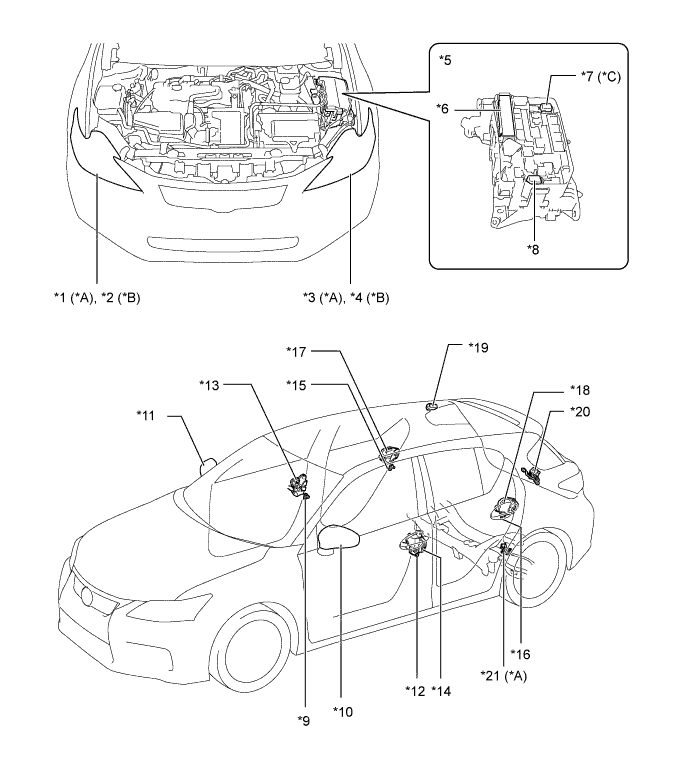

| *A | Models with Light Emitting Diode (LED) Headlight | *B | Models with Halogen Headlight |
| *C | Models with Daytime Running Light | - | - |
| *1 | Headlight Assembly RH - LED Driver Module - Headlight Leveling Motor | *2 | Headlight Assembly RH |
| *3 | Headlight Assembly LH - LED Driver Module - Headlight Leveling Motor | *4 | Headlight Assembly LH |
| *5 | Engine Room Junction Block | *6 | Integration Relay - HEAD Relay |
| *7 | DRL Relay | *8 | Dimmer Relay |
| *9 | Courtesy Switch (Front RH) | *10 | Outer Rear View Mirror Assembly LH - Foot Light |
| *11 | Outer Rear View Mirror Assembly RH - Foot Light | *12 | Courtesy Switch (Front LH) |
| *13 | Front Door Lock Assembly RH - Door Unlock Detection Switch | *14 | Front Door Lock Assembly LH - Door Unlock Detection Switch |
| *15 | Courtesy Switch (Rear RH) | *16 | Courtesy Switch (Rear LH) |
| *17 | Rear Door Lock Assembly RH - Door Unlock Detection Switch | *18 | Rear Door Lock Assembly LH - Door Unlock Detection Switch |
| *19 | Door Control Receiver | *20 | Back Door Lock Assembly - Courtesy Switch (Back Door) |
| *21 | Rear Height Control Sensor Assembly LH | - | - |

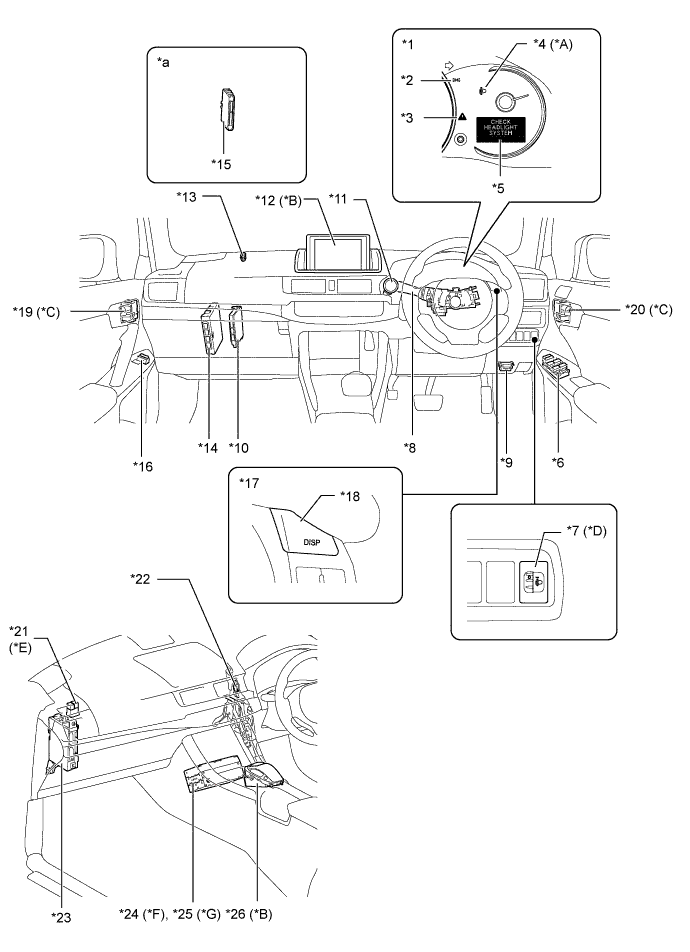

| *A | Models with Automatic Headlight Beam Level Control System | *B | Models with Navigation System |
| *C | Models with Memory System | *D | Models with Manual Headlight Beam Level Control System |
| *E | Models with Rear Fog Light | *F | Models with HDD Navigation System |
| *G | Models with DVD Navigation System | - | - |
| *1 | Combination Meter Assembly | *2 | Taillight Indicator Light |
| *3 | Master Warning Light | *4 | Automatic Headlight Beam Level Indicator Light |
| *5 | Multi-information Display | *6 | Multiplex Network Master Switch Assembly - Door Lock Switch |
| *7 | Headlight Leveling Switch | *8 | Headlight Dimmer Switch Assembly - Light Control Switch |
| *9 | DLC3 | *10 | Main Body ECU (Multiplex Network Body ECU) |
| *11 | Power Switch | *12 | Center Instrument Cluster Finish Panel Assembly - Multi Display |
| *13 | Automatic Light Control Sensor | *14 | Power Management Control ECU |
| *15 | Certification ECU (Smart Key ECU Assembly) | *16 | Door Lock Switch (Front Passenger) |
| *17 | Steering Pad Switch Assembly | *18 | DISP Switch |
| *19 | Outer Mirror Control ECU LH | *20 | Outer Mirror Control ECU RH |
| *21 | Parking Brake Switch | *22 | Relay Block No. 4 - RR FOG Relay |
| *23 | Instrument Panel Junction Block Assembly - TAIL Relay - FR FOG Relay | *24 | Display and Navigation Module Display |
| *25 | Navigation Computer Sub-assembly | *26 | Remote Touch |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |

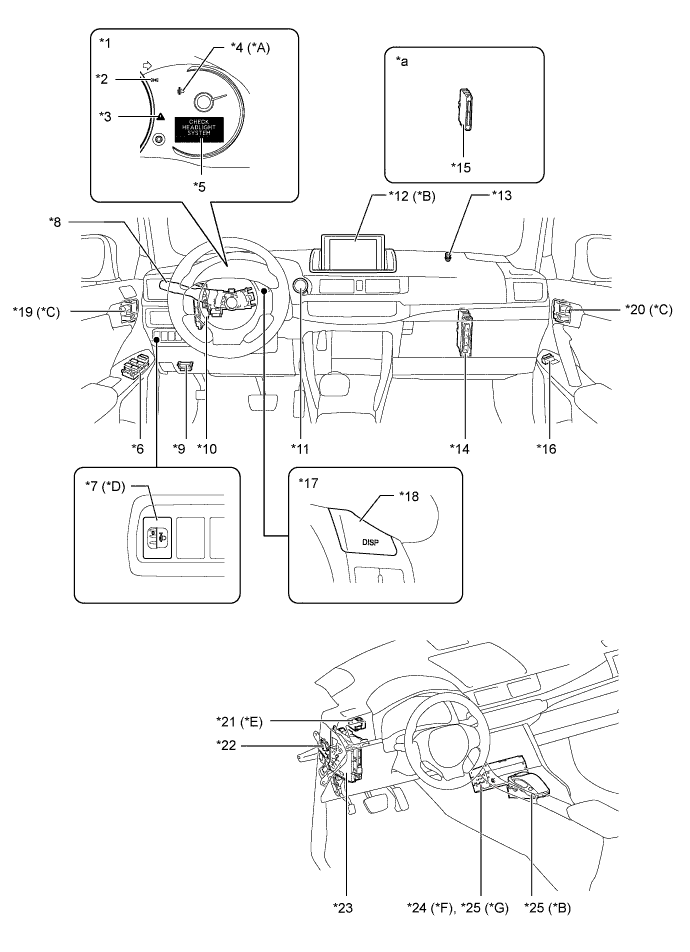

| *A | Models with Automatic Headlight Beam Level Control System | *B | Models with Navigation System |
| *C | Models with Memory System | *D | Models with Manual Headlight Beam Level Control System |
| *E | Models with Rear Fog Light | *F | Models with HDD Navigation System |
| *G | Models with DVD Navigation System | - | - |
| *1 | Combination Meter Assembly | *2 | Taillight Indicator Light |
| *3 | Master Warning Light | *4 | Automatic Headlight Beam Level Indicator Light |
| *5 | Multi-information Display | *6 | Multiplex Network Master Switch Assembly - Door Lock Switch |
| *7 | Headlight Leveling Switch | *8 | Headlight Dimmer Switch Assembly - Light Control Switch |
| *9 | DLC3 | *10 | Main Body ECU (Multiplex Network Body ECU) |
| *11 | Power Switch | *12 | Center Instrument Cluster Finish Panel Assembly - Multi Display |
| *13 | Automatic Light Control Sensor | *14 | Power Management Control ECU |
| *15 | Certification ECU (Smart Key ECU Assembly) | *16 | Door Lock Switch (Front Passenger) |
| *17 | Steering Pad Switch Assembly | *18 | DISP Switch |
| *19 | Outer Mirror Control ECU LH | *20 | Outer Mirror Control ECU RH |
| *21 | Parking Brake Switch | *22 | Relay Block No. 4 - RR FOG Relay |
| *23 | Instrument Panel Junction Block Assembly - TAIL Relay - FR FOG Relay | *24 | Display and Navigation Module Display |
| *25 | Navigation Computer Sub-assembly | *26 | Remote Touch |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
