AIR CONDITIONING SYSTEM > PARTS LOCATION |

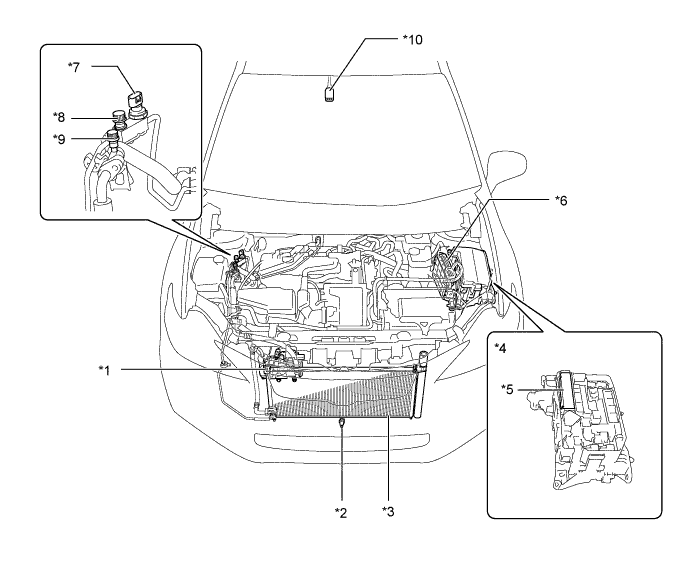

| *1 | Compressor with Motor Assembly - A/C Inverter - Compressor Motor | *2 | Ambient Temperature Sensor |
| *3 | Cooler Condenser Assembly | *4 | Engine Room Relay Block |
| *5 | Integration Relay | *6 | ECM |
| *7 | Air Conditioning Pressure Sensor | *8 | High Pressure Service Valve |
| *9 | Low Pressure Service Valve | *10 | Humidity Sensor |
| *A | Models with HDD Navigation System | *B | Models with DVD Navigation System |
| *C | Models with Navigation System | - | - |

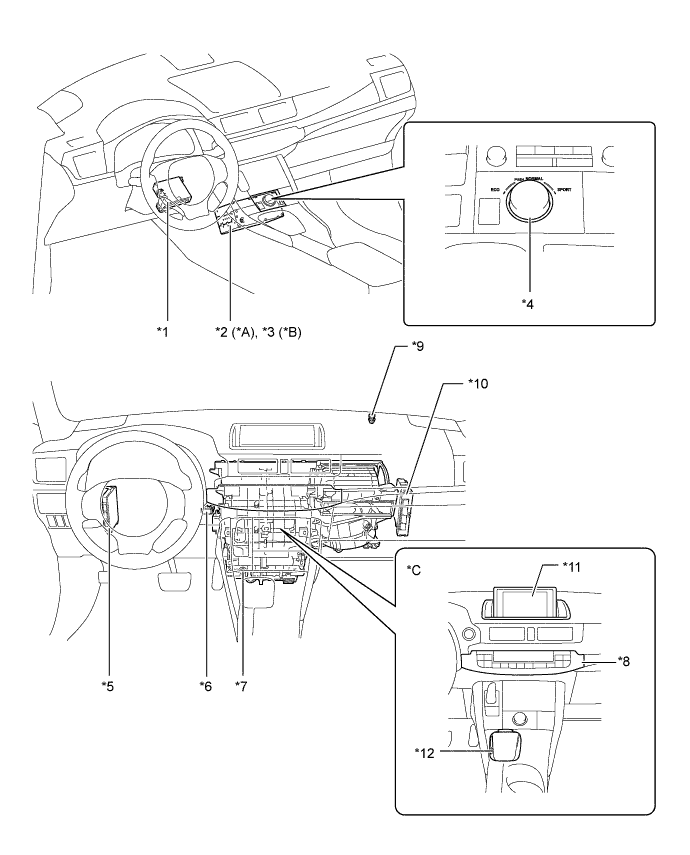

| *1 | Air Conditioning Amplifier Assembly | *2 | Navigation Computer Sub-assembly |
| *3 | Display and Navigation Module Display | *4 | Drive Mode Select - ECO MODE Switch |
| *5 | Main Body ECU (Multiplex Network Body ECU) | *6 | Room Temperature Sensor |
| *7 | Air Conditioning Unit | *8 | Air Conditioning Control Assembly - Center Cluster Module Circuit |
| *9 | Automatic Light Control Sensor | *10 | Power Management Control ECU |
| *11 | Center Instrument Cluster Panel Assembly (Multi Display) | *12 | Remote Touch |
| *A | Models with HDD Navigation System | *B | Models with DVD Navigation System |
| *C | Models with Navigation System | - | - |

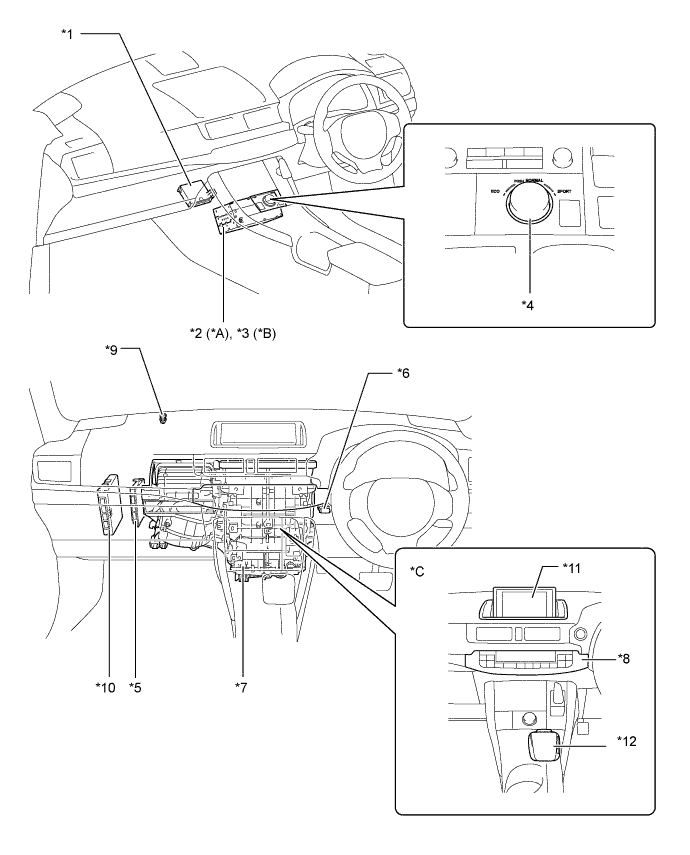

| *1 | Air Conditioning Amplifier Assembly | *2 | Navigation Computer Sub-assembly |
| *3 | Display and Navigation Module Display | *4 | Drive Mode Select - ECO MODE Switch |
| *5 | Main Body ECU (Multiplex Network Body ECU) | *6 | Room Temperature Sensor |
| *7 | Air Conditioning Unit | *8 | Air Conditioning Control Assembly - Center Cluster Module Circuit |
| *9 | Automatic Light Control Sensor | *10 | Power Management Control ECU |
| *11 | Center Instrument Cluster Panel Assembly (Multi Display) | *12 | Remote Touch |

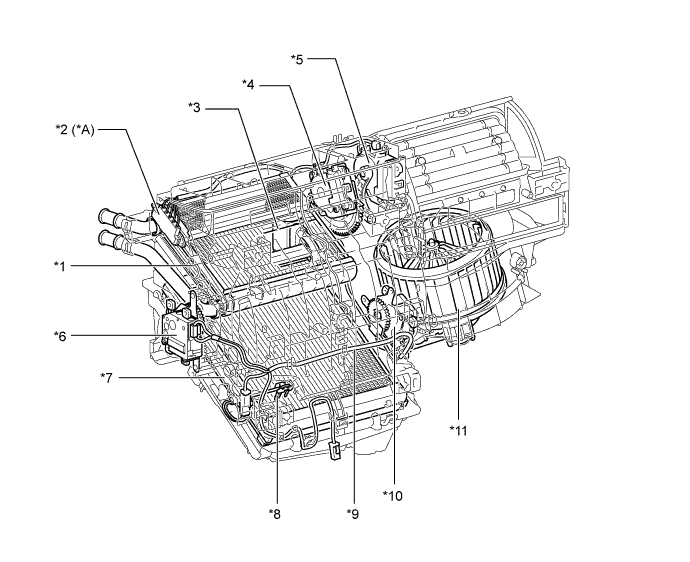

| *A | Models with PTC Heater | - | - |
| *1 | Heater Radiator Unit Sub-assembly | *2 | Quick Heater Assembly |
| *3 | Cooler Expansion Valve | *4 | Mode Damper Servo Sub-assembly |
| *5 | Recirculation and Fresh Damper Servo Sub-assembly | *6 | Air Mix Damper Servo Sub-assembly (Driver) |
| *7 | No. 1 Cooler Evaporator Sub-assembly | *8 | Evaporator Temperature Sensor (No. 1 Cooler Thermistor) |
| *9 | Air Conditioning Harness Assembly | *10 | Air Mix Damper Servo Sub-assembly (Passenger) |
| *11 | Blower with Fan Motor Sub-assembly | - | - |
