CAN COMMUNICATION SYSTEM > SYSTEM DIAGRAM

for Preparation Click here

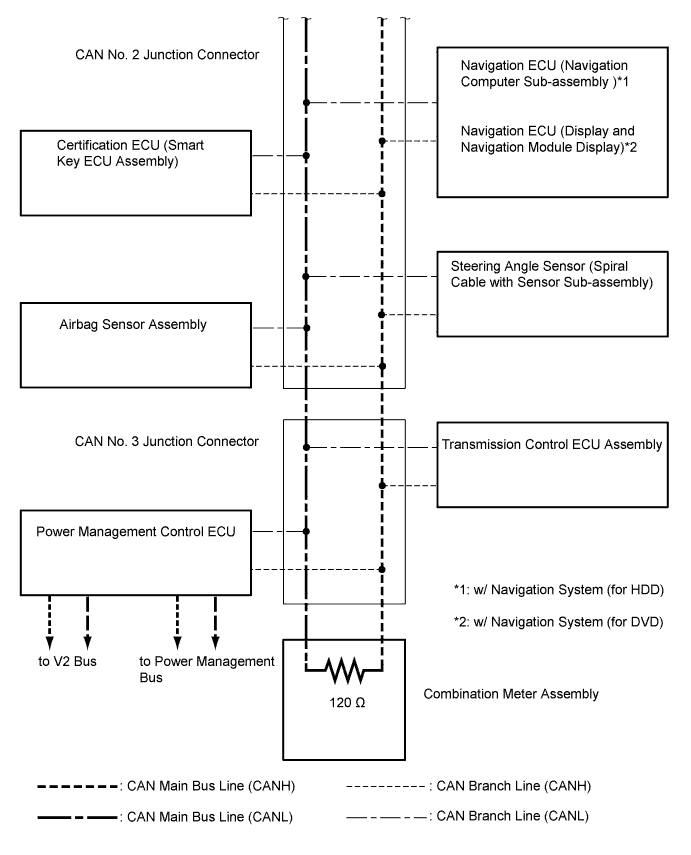

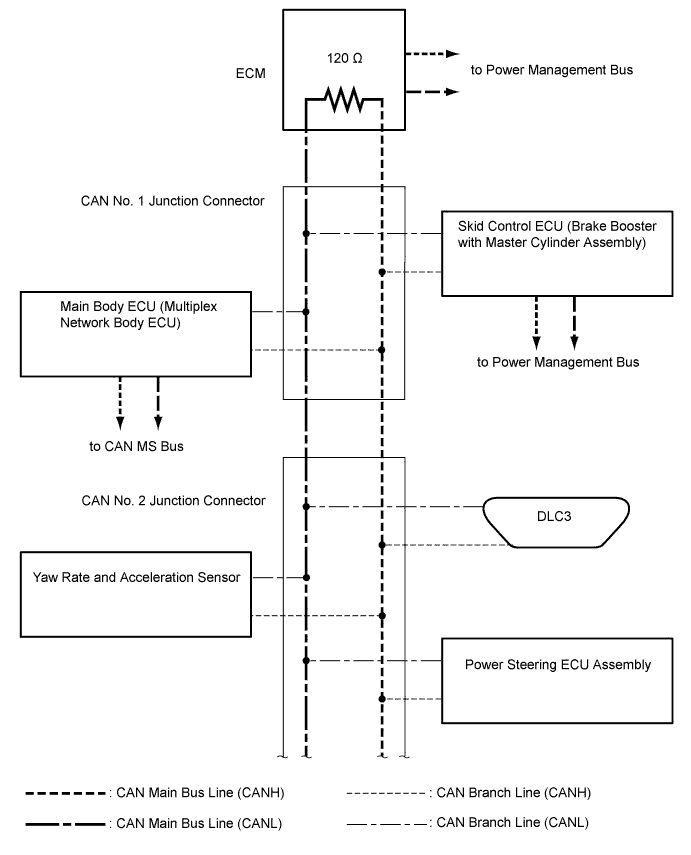

V1 BUS (for LHD)

C235273E02


C235274E01

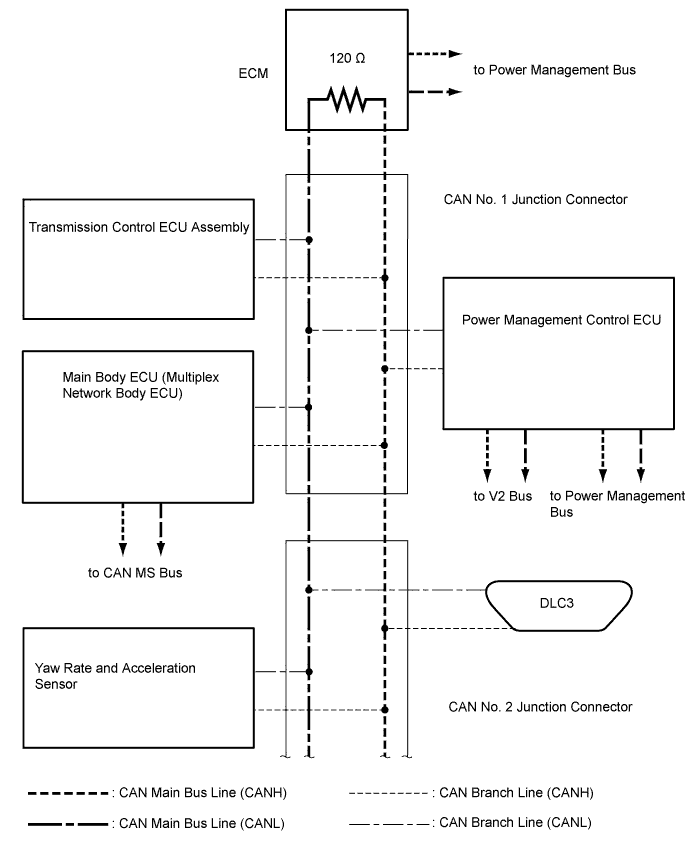

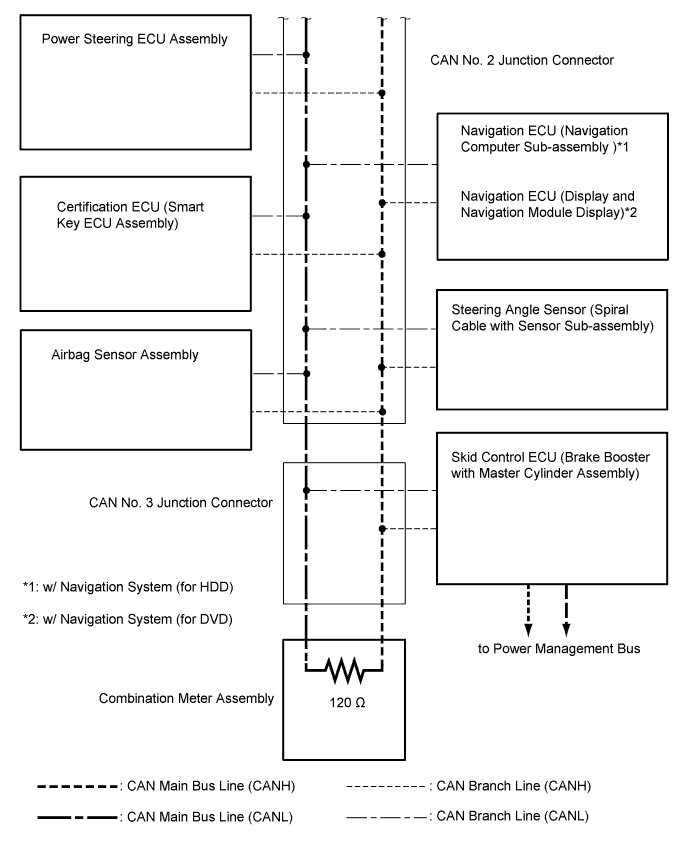

V1 BUS (for RHD)

C234361E02


C235523E01

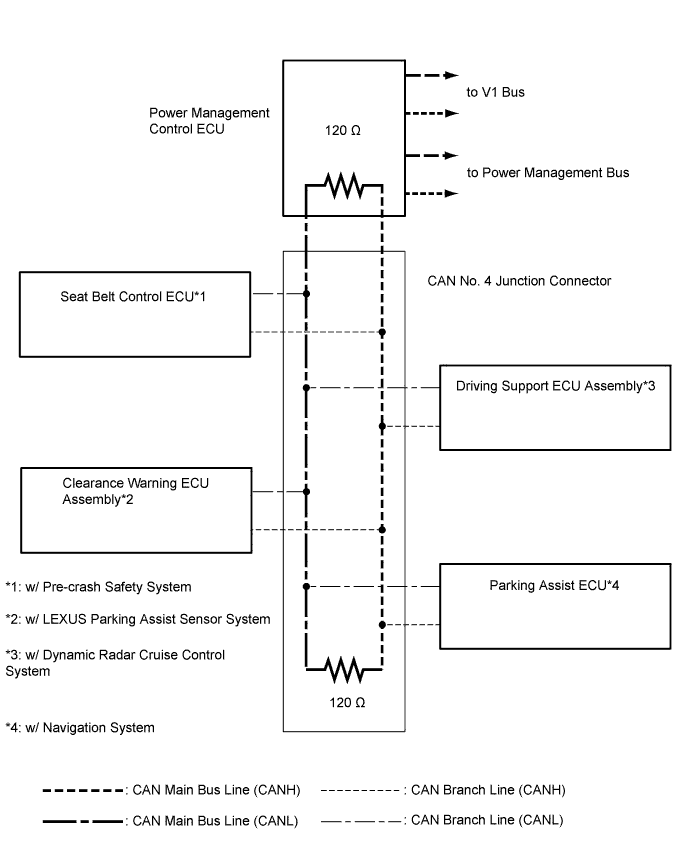

V2 BUS

C235275E06


POWER MANAGEMENT BUS

C234365E01

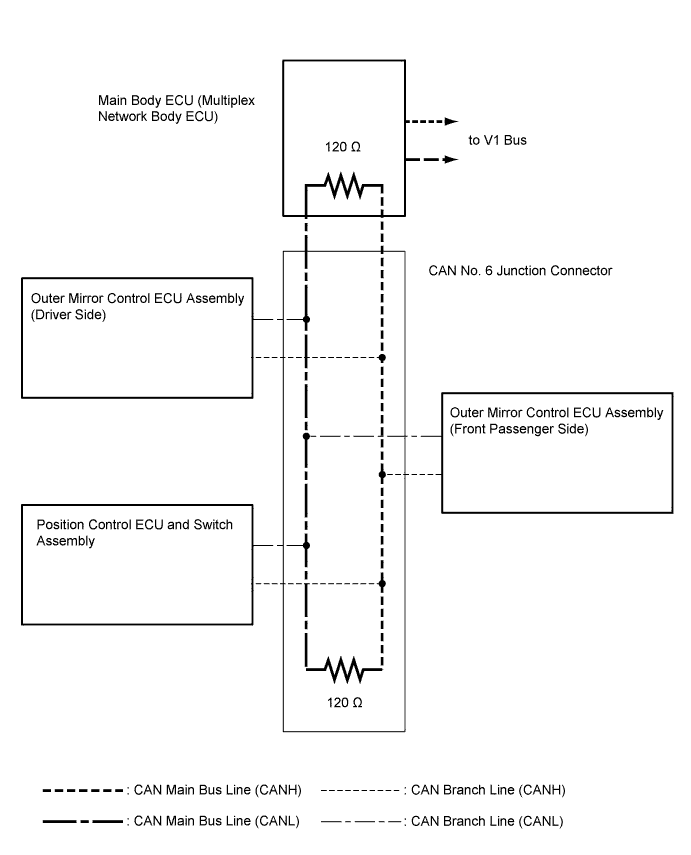

CAN MS BUS (w/ Seat Position Memory)

C234387E02
