REAR POWER WINDOW SWITCH > INSTALLATION

for Preparation Click here



1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

  1. Engage the 2 claws to install the rear power window regulator switch assembly.



2. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

  1. Connect the connector.



    B269476

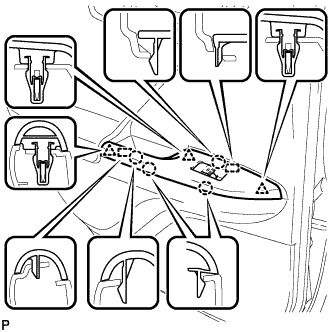

  1. Engage the 2 guides, 3 clips and 4 claws, and install the rear power window regulator switch assembly with rear door armrest base panel.
