Home › Vehicle Exterior › WINDOW / GLASS › REAR POWER WINDOW SWITCH

REAR POWER WINDOW SWITCH > REMOVAL

for Preparation Click here



1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

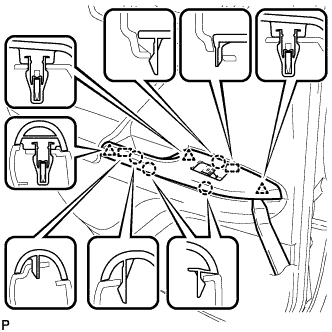

    B269474

  1. Using a moulding remover, disengage the 3 clips, 4 claws and 2 guides as shown in the illustration.

  1. Disconnect the connector and remove the rear power window regulator switch assembly with rear door armrest base panel.



2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY


    B268844

  1. Disengage the 2 claws and remove the rear power window regulator switch assembly.
