POWER WINDOW CONTROL SYSTEM > SYSTEM DIAGRAM

for Preparation Click here

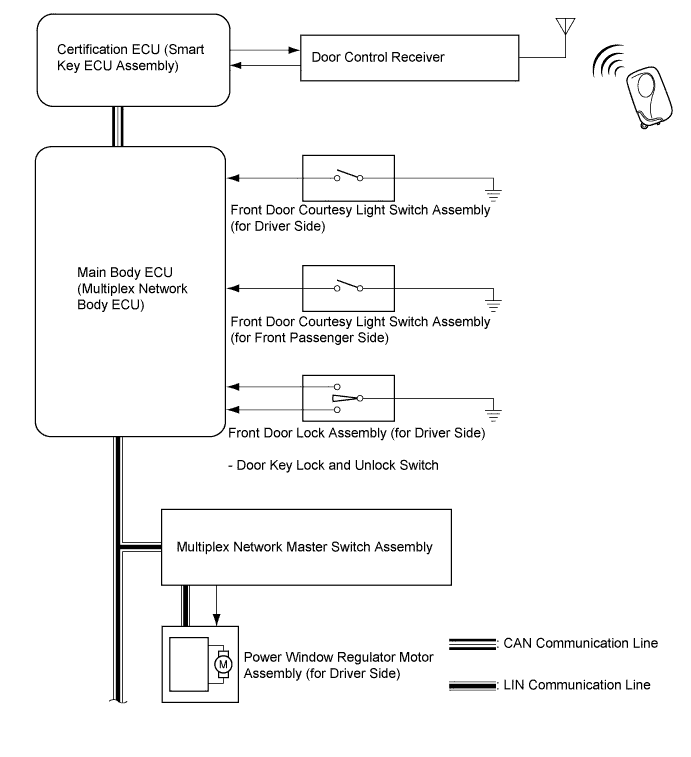

B267926E01

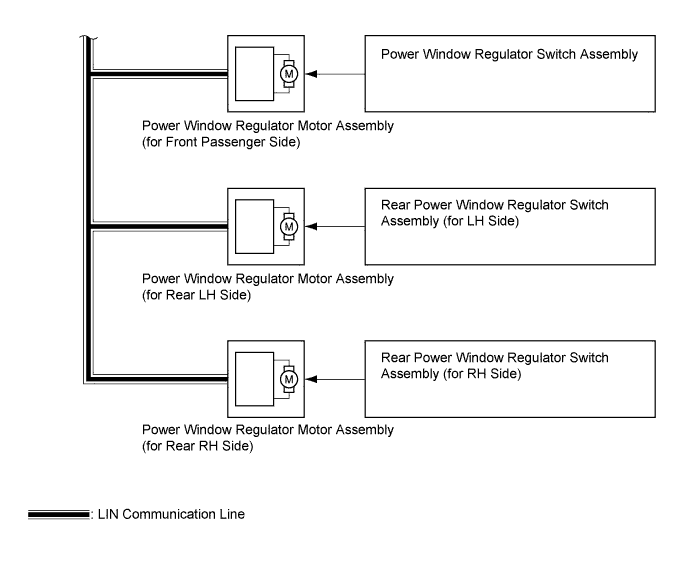

B203355E04


Communication Table
Transmitting ECU
Receiving ECU
Signal
Communication Method
Multiplex network master switch assembly
Power window regulator motor assembly (for driver side)
Power window auto up and down signal
LIN
  1. Power window regulator motor assembly (for front passenger side)
  2. Power window regulator motor assembly (for rear LH side)
  3. Power window regulator motor assembly (for rear RH side)
Power window remote up and down signal
LIN
Main body ECU (multiplex network body ECU)
  1. Power window regulator motor assembly (for driver side)
  2. Power window regulator motor assembly (for front passenger side)
  3. Power window regulator motor assembly (for rear LH side)
  4. Power window regulator motor assembly (for rear RH side)
Power window operation permission signal
LIN
Certification ECU (smart key ECU assembly)
Main body ECU (multiplex network body ECU)
Wireless LOCK/UNLOCK signal
CAN
