SKID CONTROL BUZZER (for LHD) > REMOVAL

for Preparation Click here



1. PRECAUTION

CAUTION:
Be sure to read Precaution thoroughly before servicing (Click here).

NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal, Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Click here).



2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
(Click here)

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY


    B269941

  1. Remove the 2 screws <E>.

  1. Disengage the clip.

  1. Disengage the clamp.

  1. Disconnect each connector and remove the No. 1 instrument panel under cover sub-assembly.



4. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

CAUTION:
When storing the lower No. 1 instrument panel airbag assembly, keep the airbag deployment side facing upward.

  1. Check that the power switch is off.

  1. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

    CAUTION:
    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



    B252842

  1. Apply protective tape at the position shown in the illustration.

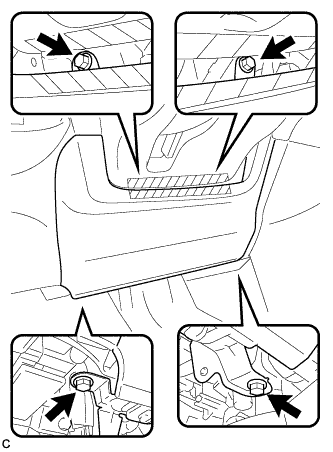

    B252843

  1. Remove the 4 bolts.

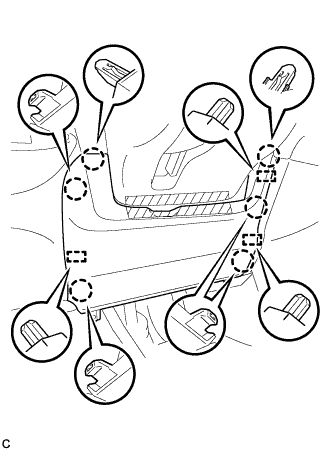

    B252844

  1. Disengage the 6 claws and 3 guides to separate the lower No. 1 instrument panel airbag assembly.



    B252859E01

  1. Using a screwdriver with the tip wrapped with protective tape, release the airbag connector lock.
    Text in Illustration
    *1
    		Protective Tape

  1. Disconnect the airbag connector to remove the lower No. 1 instrument panel airbag assembly.

    NOTICE:
    When disconnecting any airbag connector, take care not to damage the airbag wire harness.



5. REMOVE SKID CONTROL BUZZER ASSEMBLY

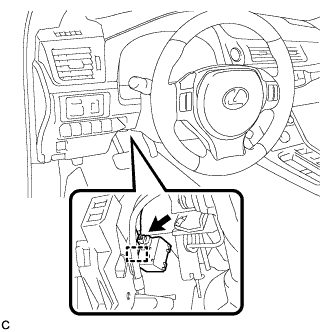

    C232369

  1. Disengage the clamp to remove the skid control buzzer assembly.

  1. Disconnect the skid control buzzer connector.
