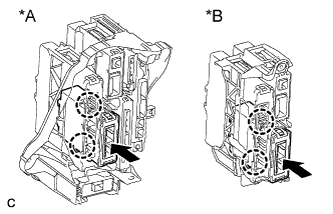

1. Engage the 2 claws to install the transmission control ECU assembly to the ECU integration box.


   Text in Illustration

   *A	for LHD
   *B	for RHD

1. Install the ECU integration box RH with the 2 nuts and bolt.


2. Engage the clamp to connect the wire harness.


3. Connect each connector.


1. Install the ECU integration box LH with the nut and bolt.


2. Engage the clamp to connect the wire harness.


3. Connect each connector.


1. Connect the connector.


2. Engage the clamp.


3. Engage the 5 claws.


4. Install the glove compartment door assembly with the 4 screws <C>.


1. Check that the power switch is off.


2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.


   CAUTION:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

3. Connect the airbag connector to the lower No. 2 instrument panel airbag assembly.


   NOTICE:

   When connecting any airbag connector, take care not to damage the airbag wire harness.

4. Push in the lock to install the airbag connector.


5. Temporarily install the lower No. 2 instrument panel airbag assembly with the 6 claws and 2 guides.


6. Install the 3 bolts.


   Torque:

   10 N*m{ 102 kgf*cm , 7 ft.*lbf }

   NOTICE:

   Confirm that the lower No. 2 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward.

1. Connect the connector.


2. Engage the clamp.


3. Engage the guide, claw and 2 clips to install the No. 2 instrument panel under cover sub-assembly.


1. Connect the connector.


2. Engage the clamp.


3. Engage the 2 guides, claw and 2 clips to install the No. 2 instrument panel under cover sub-assembly.


1. Connect the connector.


2. Engage the 4 guides, clip and 3 claws to install the instrument side panel RH.


1. Engage the 4 guides, clip and 3 claws to install the instrument side panel LH.


1. Align the alignment mark (light blue) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip RH.


   Text in Illustration

   *a	Alignment Mark (Light blue)

   NOTICE:

   After installation, check that the corners fit correctly.

1. Align the alignment mark (orange) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip LH.


   Text in Illustration

   *a	Alignment Mark (Orange)

   NOTICE:

   After installation, check that the corners fit correctly.

HINT:

Use the same procedure described for the LH side .

1. Engage the claw and clip.


   NOTICE:

   1. Be sure to engage the clip securely.

   2. If there is any damage, replace the garnish clip with a new one.


2. Install the cowl side trim sub-assembly LH with the clip.


HINT:

Use the same procedure described for the LH side .

1. Engage the 4 claws, 2 guides and 4 clips to install the front door scuff plate LH.


NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

1. Engage the 4 claws and 2 guides to install the rear floor board upper No. 3 plate.


1. Engage the 6 guides.


2. Install the deck floor box RH with the clip.


1. Install the rear No. 3 floor board.


1. Install the rear deck floor box.


1. Install the rear No. 2 floor board.
