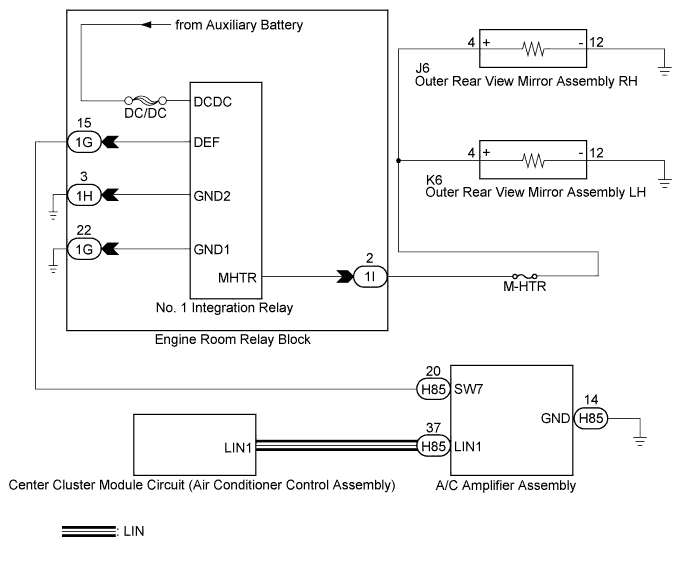

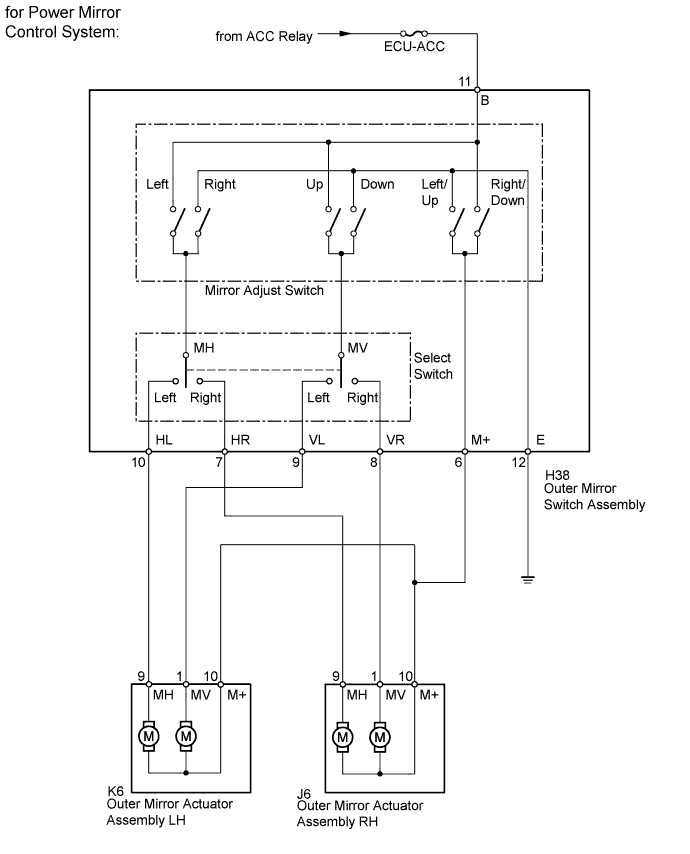

POWER MIRROR CONTROL SYSTEM (w/o Memory) > SYSTEM DIAGRAM

for Preparation Click here



B193770E22


B273265E01


Communication Table
Transmitting ECU
Receiving ECU
Signal
Communication Method
Center Cluster Module Circuit (Air Conditioner Control Assembly)
A/C Amplifier Assembly
Outer Mirror Heater Switch Signal
LIN
