HARD DISK DRIVE > INSTALLATION

for Preparation Click here



1. INSTALL HARD DISK DRIVE (for Two Screw Type)


    E220106

  1. Insert the hard disk drive as shown in the illustration.

  1. Install the hard disk drive with the 2 screws.



2. INSTALL HARD DISK DRIVE (for One Screw Type)


    E220130

  1. Insert the hard disk drive as shown in the illustration.

  1. Install the hard disk drive with the screw.



3. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY ASSEMBLY WITH BRACKET

  1. Connect each connector and install the display and navigation module display assembly with bracket.

  1. Install the 4 bolts.



4. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET

  1. Connect each connector.

  1. Install the radio receiver assembly with bracket with the 4 bolts.



5. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

  1. Connect the connector.

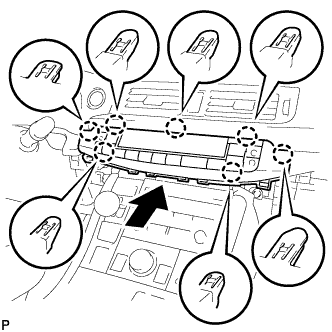

    E220732

  1. Engage the 7 claws to install the air conditioning control assembly.



6. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

  1. Connect each connector.

  1. Engage the clamp.

  1. Engage the 2 guides and 6 claws to install the integration control and panel assembly.



7. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

  1. Connect each connector.

  1. Engage the clamp.

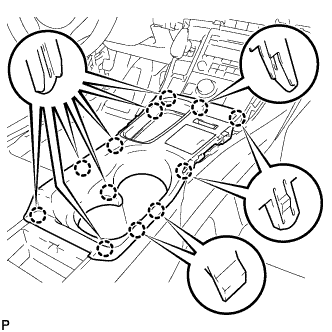

    B269924

  1. Engage the 12 claws to install the upper console panel sub-assembly.

    NOTICE:
    When installing the upper console panel sub-assembly, make sure not to pinch the wire harness connected to the front end of the remote touch (w/ Navigation System).

  1. Close the console compartment door.



8. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH

  1. Engage the 3 guides, clip and 4 claws to install the upper No. 1 console panel garnish.



9. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH

  1. Engage the 2 guides, clip and 5 claws to install the upper No. 2 console panel garnish.



10. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

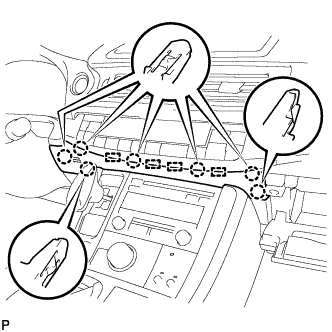

    B271367

  1. Engage the 4 guides and 7 claws to install the lower center instrument panel finish panel.

  1. Close the glove compartment door.



11. INSTALL NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for Metal Finish Panel and Urethane Panel)

  1. Engage the 5 clips to install the No. 3 instrument cluster finish panel garnish.



12. INSTALL NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for Wood Panel and Bamboo Panel)

  1. Engage the 4 clips to install the No. 3 instrument cluster finish panel garnish.



13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



14. INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE

  1. Engage the 4 claws and 2 guides to install the rear floor board upper No. 3 plate.



15. INSTALL DECK FLOOR BOX RH

  1. Engage the 6 guides.

  1. Install the deck floor box RH with the clip.



16. INSTALL REAR NO. 3 FLOOR BOARD

  1. Install the rear No. 3 floor board.



17. INSTALL REAR DECK FLOOR BOX

  1. Install the rear deck floor box.



18. INSTALL REAR NO. 2 FLOOR BOARD

  1. Install the rear No. 2 floor board.



19. INSPECT HARD DISK DRIVE
(Click here)
