EMISSION CONTROL SYSTEM > SYSTEM DIAGRAM

for Preparation Click here

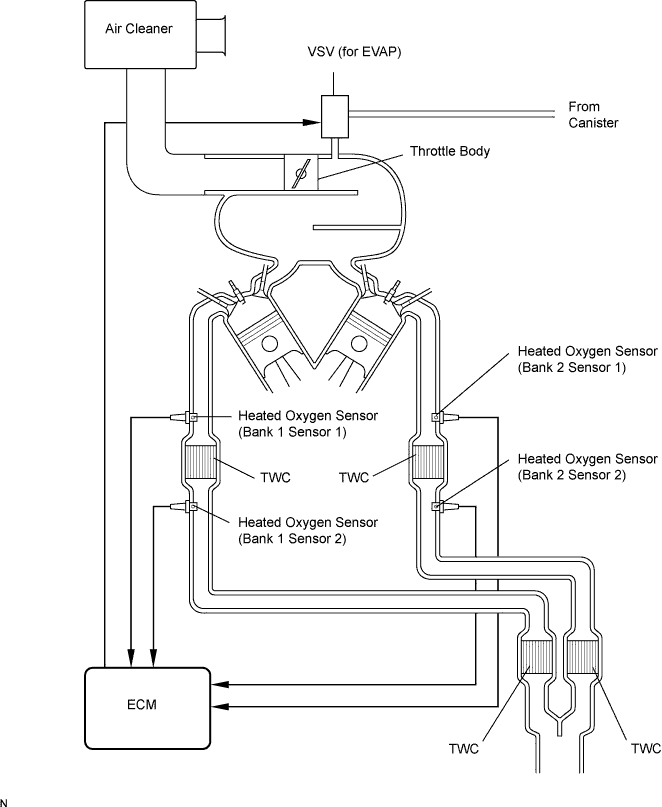

EMISSION CONTROL SYSTEM DIAGRAM

A108633E03

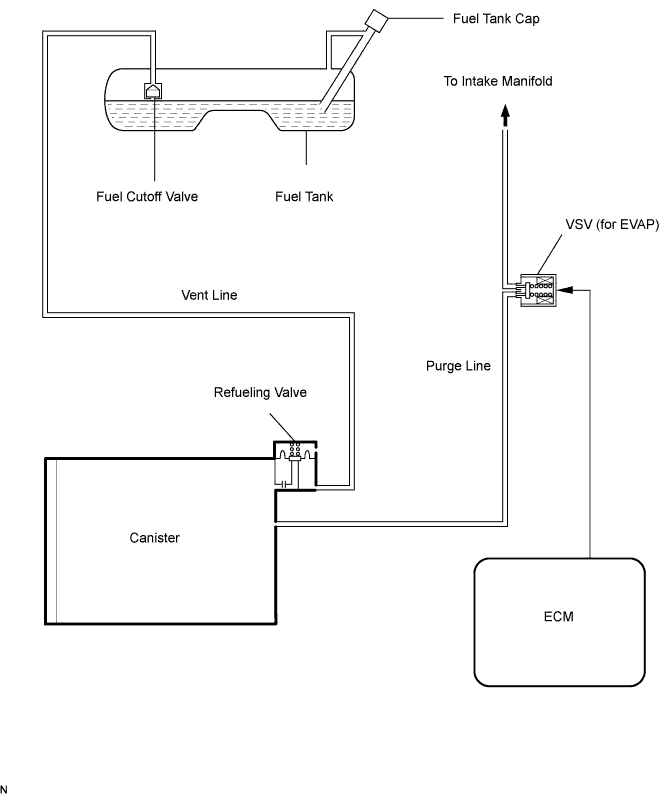

EVAP CONTROL SYSTEM DIAGRAM

A110762E03

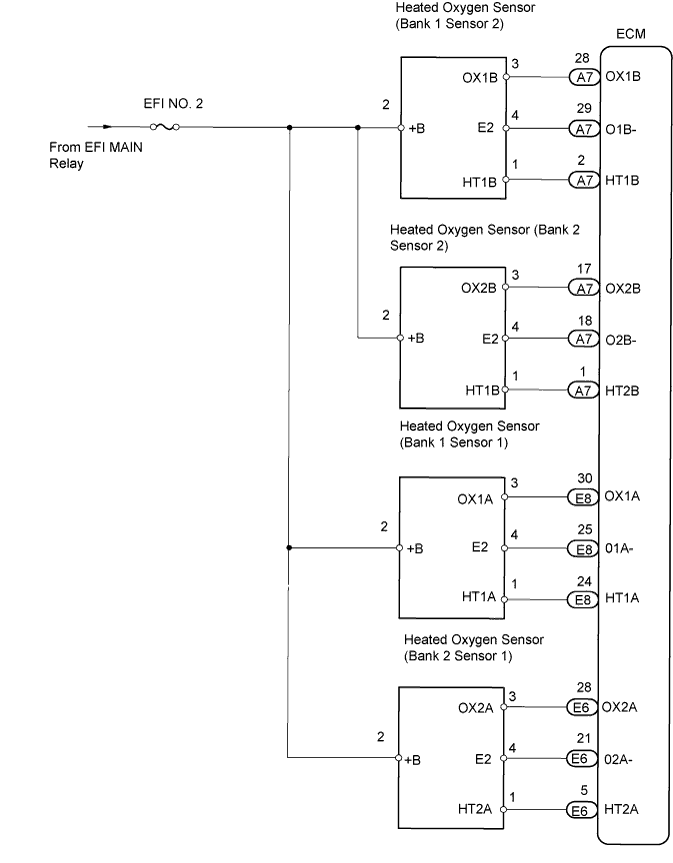

EMISSION CONTROL SYSTEM WIRING DIAGRAM

A109406E03
