FUEL SYSTEM > SYSTEM DIAGRAM

for Preparation Click here

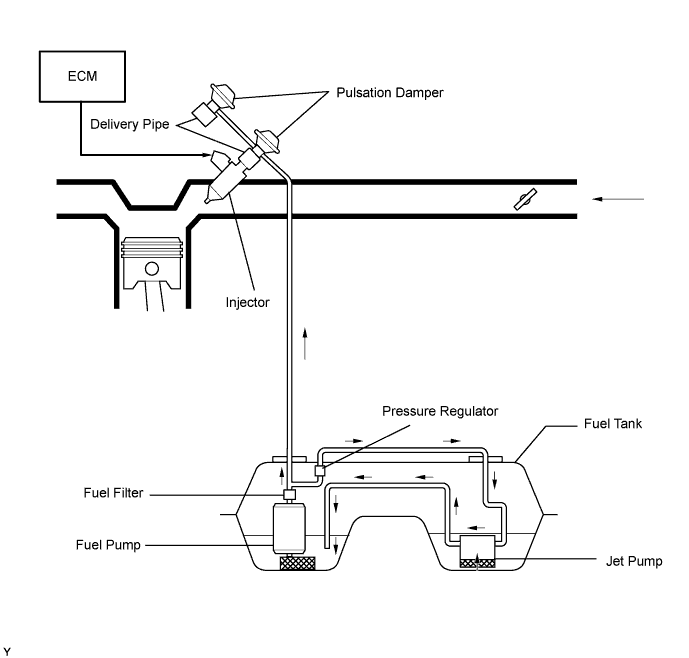

FUEL FLOW DIAGRAM

A106020E01

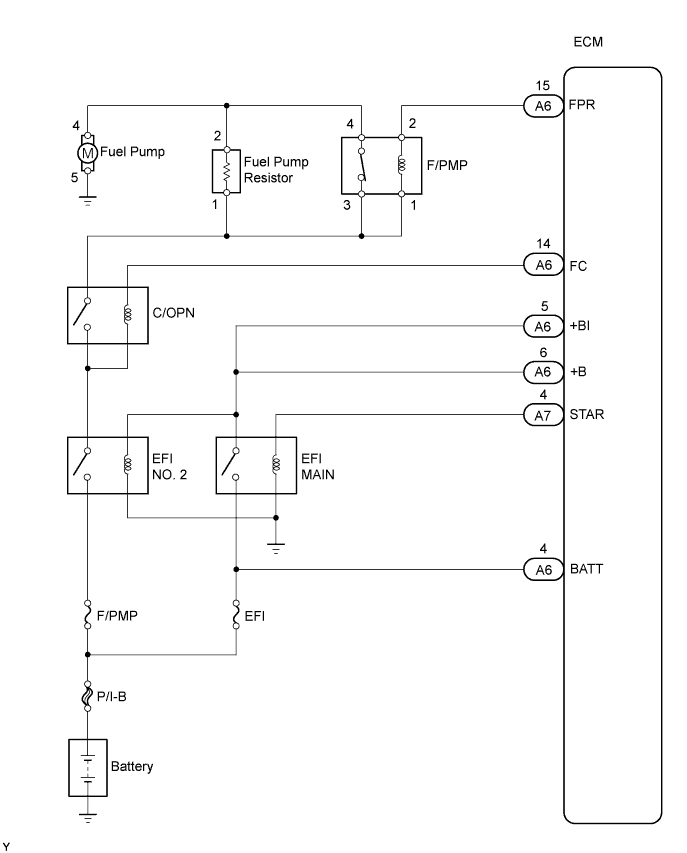

FUEL SYSTEM WIRING DIAGRAM

A110698E01

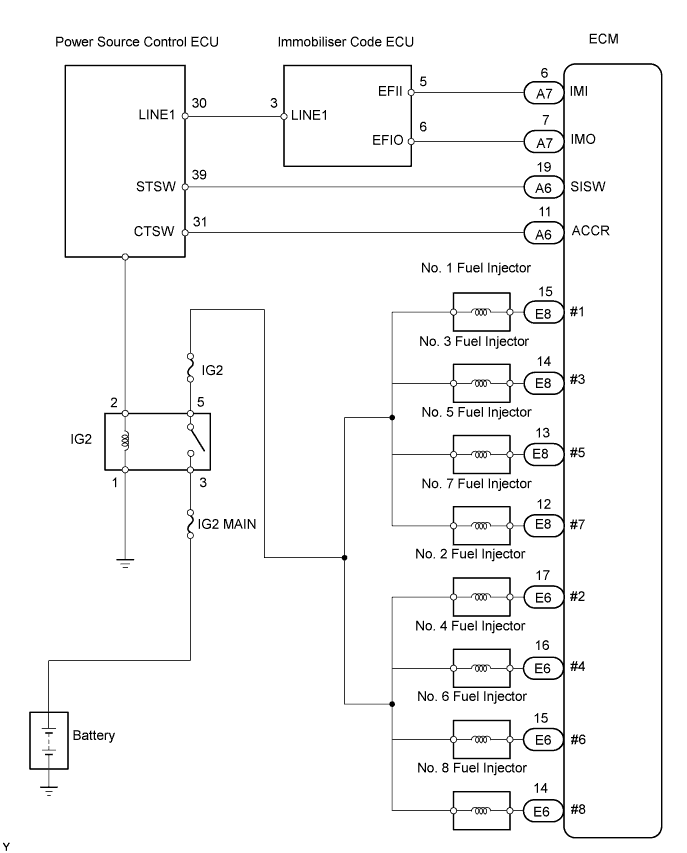

FUEL SYSTEM WIRING DIAGRAM 2

A110699E03
