FUEL SYSTEM > SYSTEM DIAGRAM

for Preparation Click here

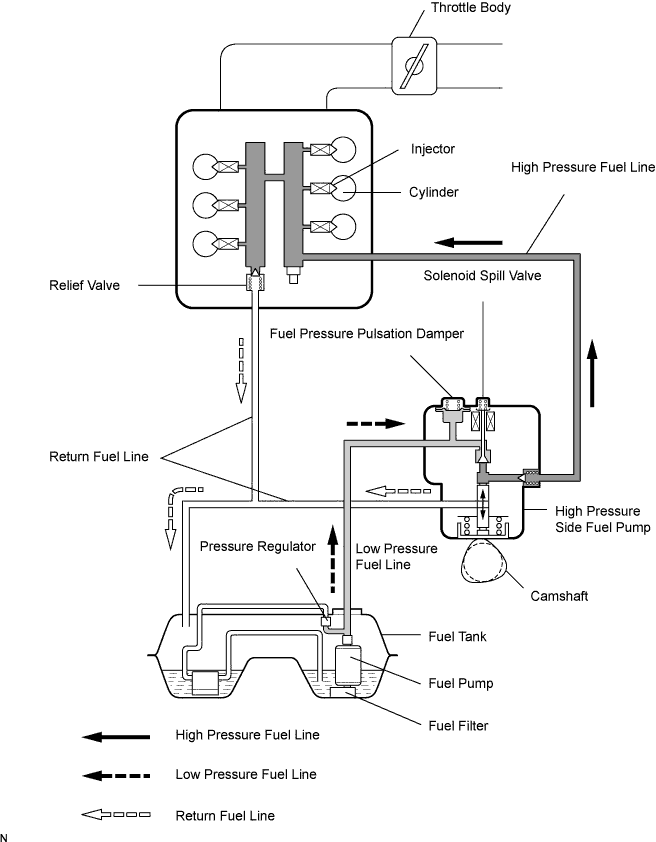

FUEL FLOW DIAGRAM

A108640E01

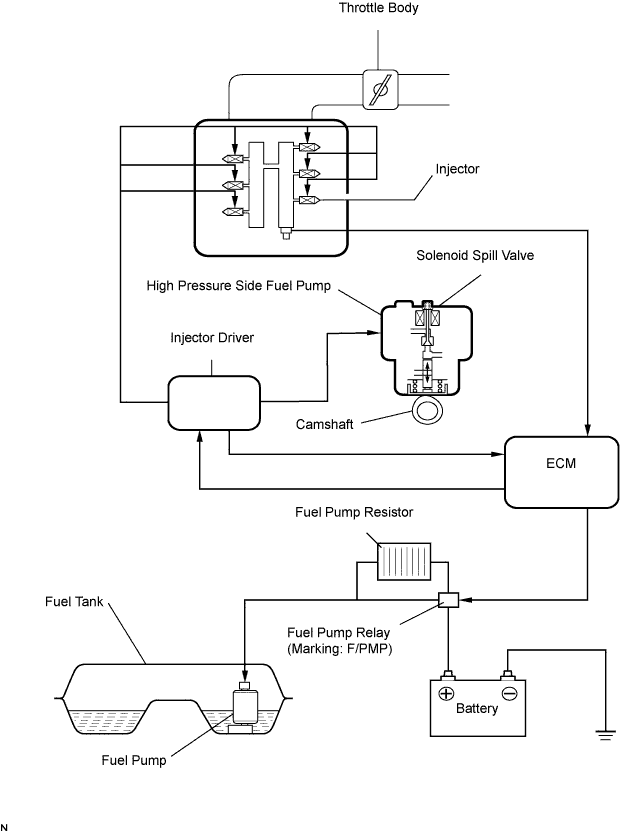

ELECTRICAL CONTROL DIAGRAM

A108641E01

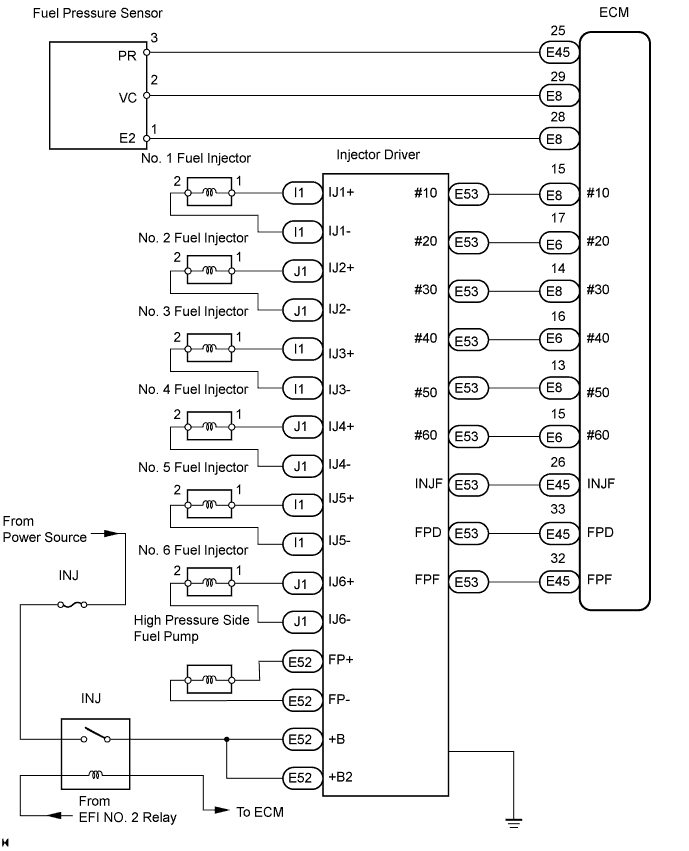

HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

A110700E01

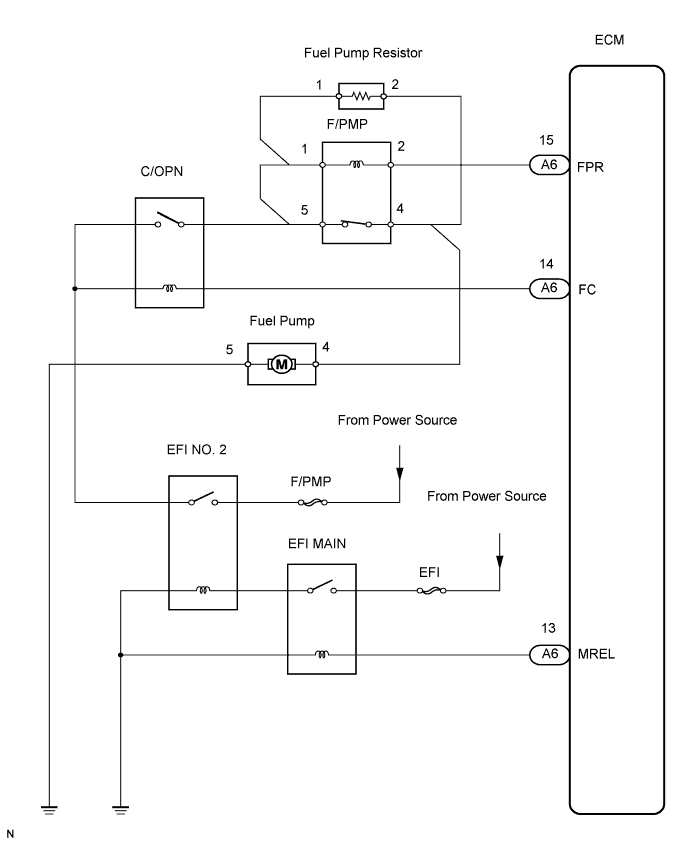

LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

A110701E01
