SYSTEM DIAGRAM

System information

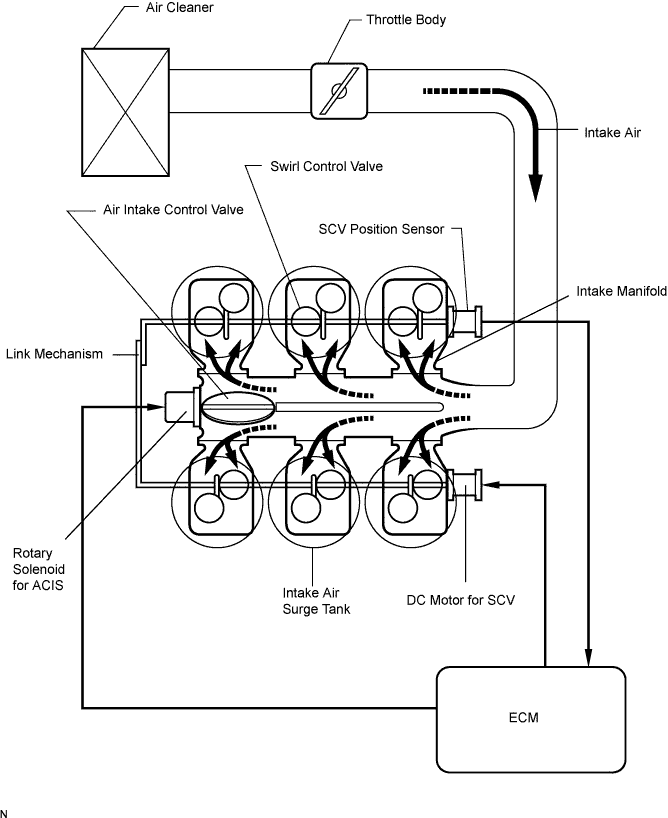

INTAKE CONTROL SYSTEM VALVE DIAGRAM

A107223E04

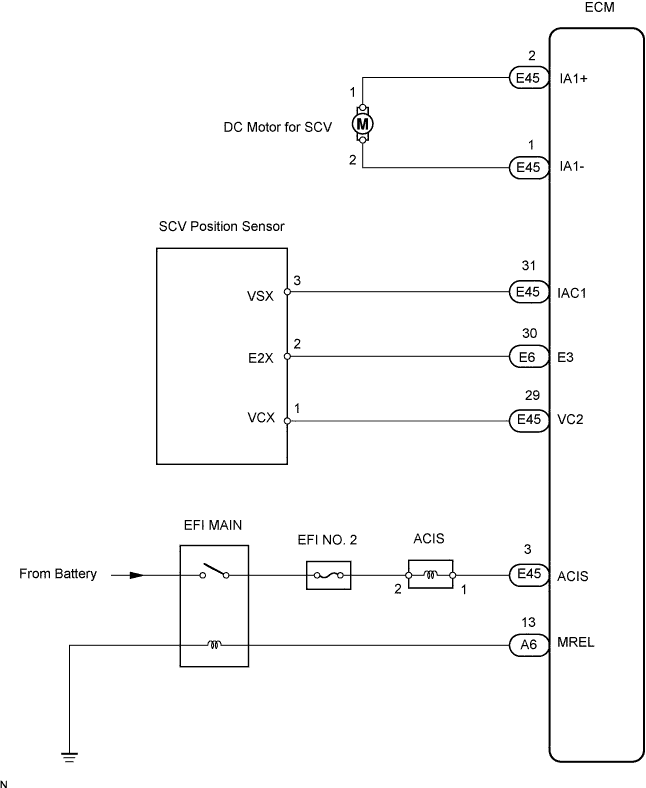

ELECTRICAL WIRING DIAGRAM

A107226E03
