SYSTEM DIAGRAM

System information

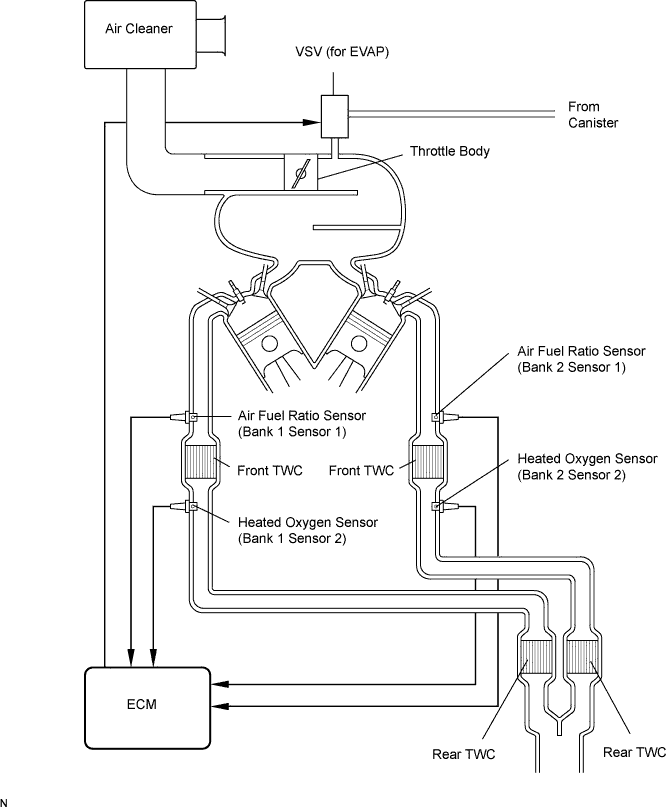

EMISSION CONTROL SYSTEM DIAGRAM

A108633E01

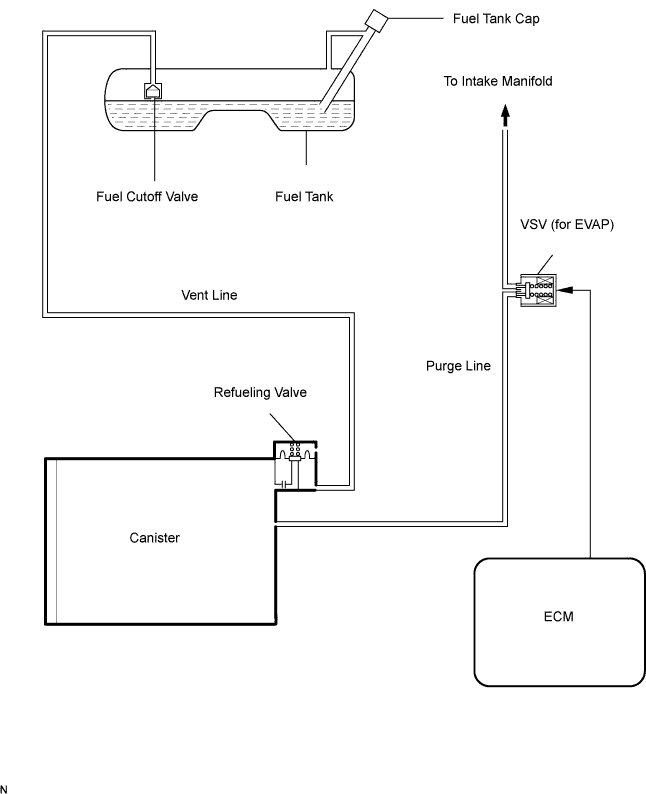

EVAP SYSTEM DIAGRAM

A110762E01

EMISSION CONTROL SYSTEM DIAGRAM

A107656E04
