Lexus IS250 · Service Manual SUSPENSION & AXLE

REMOVAL

Removal / installation


1. REMOVE REAR WHEEL

2. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR

  1. C117266
    Remove the 2 nuts and the No. 2 differential support protector.


3. REMOVE REAR STABILIZER LINK ASSEMBLY LH

  1. C104543E02
    Remove the nut, and separate the rear stabilizer link assembly LH from the rear stabilizer bar. (A)

    NOTICE:
    Be sure to hold the stud bolt using a hexagon wrench 6 in order to prevent the bolt from turning.

  1. Remove the bolt, nut, and the stabilizer link assembly LH. (B)


4. REMOVE REAR STABILIZER LINK ASSEMBLY RH

HINT:
Use the same procedures for the RH side and LH side.


5. REMOVE REAR STABILIZER BAR

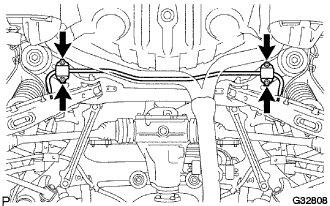

  1. G032808
    Remove the 4 bolts, 2 stabilizer brackets, 2 rear stabilizer bushing, and rear stabilizer bar.
